TOA WTD5800P

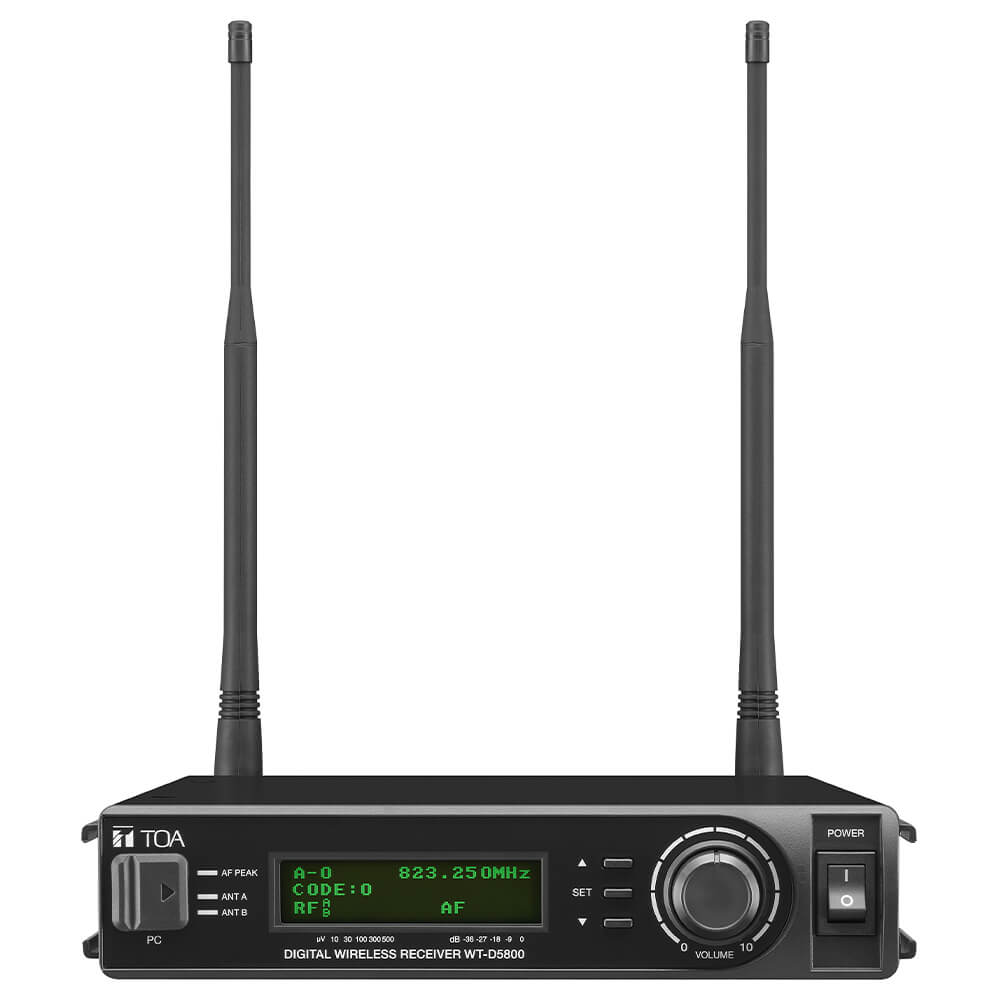

TOA WTD5800P Digital UHF Wireless Microphone Receiver 160 Selectable Channels - Digital Diversity (606-636MHz)
Regular price
$1,169.10
Regular price
$1,299.00
Sale price
$1,169.10
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$1,169.10
Regular price
$1,299.00
Sale price
$1,169.10
Launch into the world of reliable TOA wireless microphone systems. Designed for use with a range of wireless handheld microphones, to lapels, to headsets.
Employing a digital reception system that is virtually immune to interference and noise, the TOA WTD5800P Wireless Receiver ensures stable radio signal reception. Additionally, this receiver features a host of convenient functions, such as external equipment control by way of contact outputs, and system status monitoring by way of its maintenance software, enabling highly reliable operation.
The TOA D5000 Series provides unprecedented speech clarity for delivering the presenter?s voice to audiences in any speaking scenario. Experience for yourself the clarity, ease and safety of this wireless solution, whether for the classroom, office meeting rooms, banquet halls, courthouses, or multipurpose halls.
TOA?s proprietary digital audio processing ensures optimal sound quality and intelligibility for speech applications. Dedicated maintenance software enables visual monitoring of any jam radio waves or changes to incoming radio waves.
15 compatible channels per 6 MHz, 20 compatible channels per 8 MHz TV channel
Up to 32 simultaneous channels *Region dependent
Approx. 100 m operating range (line of sight)
Proprietary encryption settings to prevent data leakage
Signal stability is assured using the digital diversity method.
Control of peripherals is possible using contact output.
The price listed here is for the TOA WTD5800P. Available in the following bands; Digital Diversity (606-636MHz)
Options Available:
Use with either of the following wireless microphone transmitters
WMD5200 Digital Wireless Handheld Condenser Microphone
WMD5300 HTC Digital Wireless Beltpack,
Frequency channel scan
• Feedback suppression
• Detachable antenna
• Antenna mixing with cascading antenna connectivity
• Intuitive LCD display
• Audio mixing with cascading voice input connectivity
• Built-in optimized preset equalization in microphones
• Feedback suppression
• Detachable antenna
• Antenna mixing with cascading antenna connectivity
• Intuitive LCD display
• Audio mixing with cascading voice input connectivity
• Built-in optimized preset equalization in microphones
| Power Source | AC mains (supplied AC adapter must be used) |
|---|---|
| Current Consumption | 350 mA (13.5 V) |
| Frequency Range | EC4/EC7 ver.: 794 - 832 MHz, EG1/GG1/-G1 ver.: 606 - 636 MHz, RH1 ver.:576 - 606 MHz |
| Channel Selectable | 160 selectable frequencies |
| Receiving System | Double super-heterodyne |
| Diversity system | Space diversity (digital diversity) |
| Mixing Output | MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1) (LINE), 600 Ω phone jack (unbalanced), 600 Ω XLR-3-32 type connector (balanced) |
| Mixing Input | -20 dB (*1), 10 kΩ, unbalanced, phone jack |
| Antenna Input | 75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max) |
| Antenna Output | 75 Ω, BNC (Gain 0 dB) |
| Contact Output | 1 channel, no-voltage make contact output, withstand voltage: 30 V DC, control current 0.5 A max, terminal block (2 pins) |
| Receiving Sensitivity | 24 dBμV or less (Bit error rate:1E-5 or less) |
| Antenna Input Attenuator | 0 dB/-10 dB switchable |
| Indicator | Audio (5 steps), RF (5 steps), ANT A/B, Audio (peak), Battery alarm |
| Frequency Response | 50 Hz - 12 kHz |
| Total Harmonic Distortion | 0.5 % or less |
| Function | Frequencies scanning, Feedback suppressor, Equalizer (optimizing each compatible microphone) |
| ID Selectable | 10 patterns |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Resin, black |
| Dimensions | 210 (W) x 44 (H) x 211.9 (D) mm (8.27 in x 1.73 in x 8.34 in) |
| Weight | 730 g (1.61 lb) |
| Accessory | AC adapter (*2) …1, Whip antenna …2, Rubber foot …4 |
| Option | Rack mounting bracket kit: MB-WT3 (for rack mounting one WT-D5800 unit), MB-WT4 (for rack mounting two WT-D5800 units) |
TOA-WTD5800P-Product-Brochure
