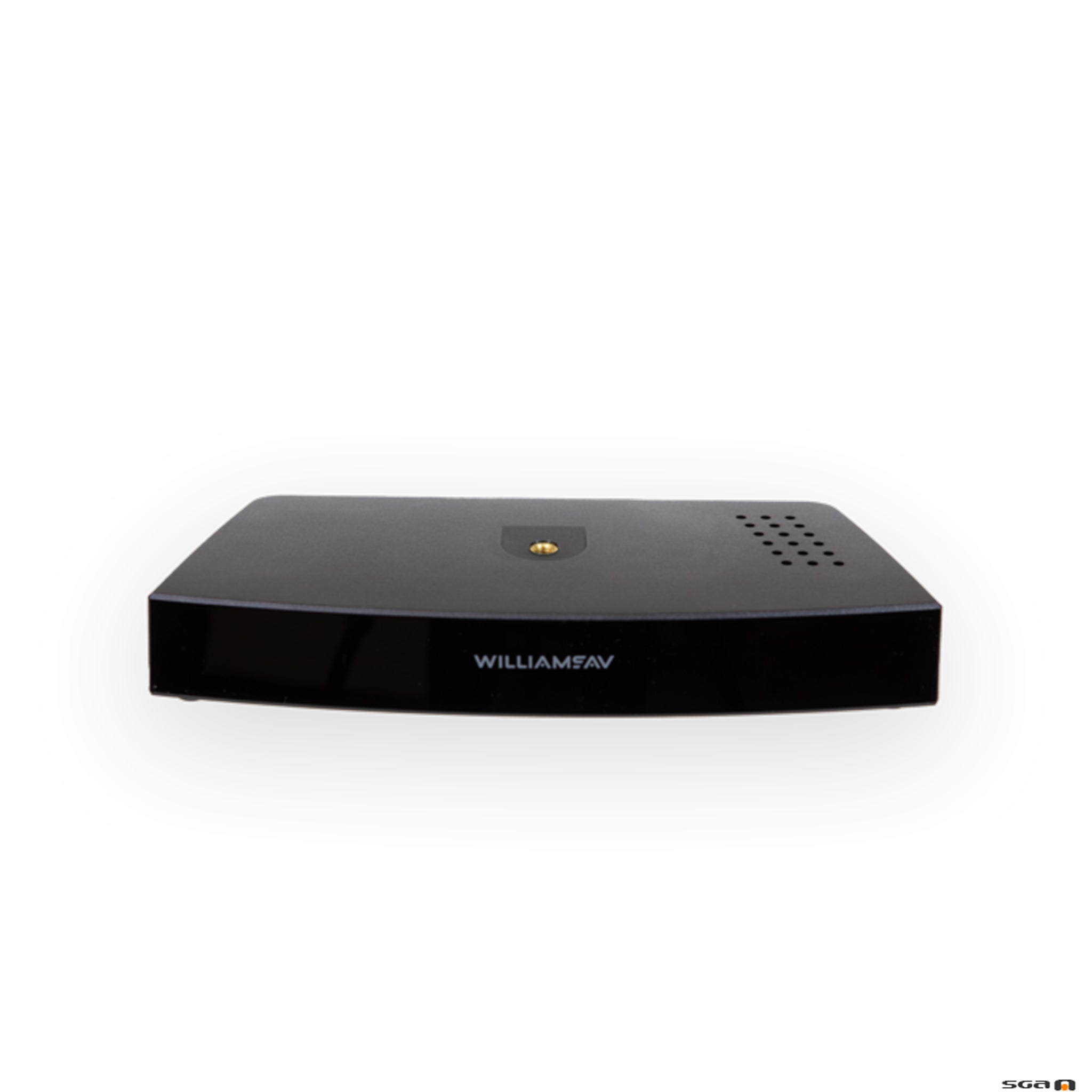

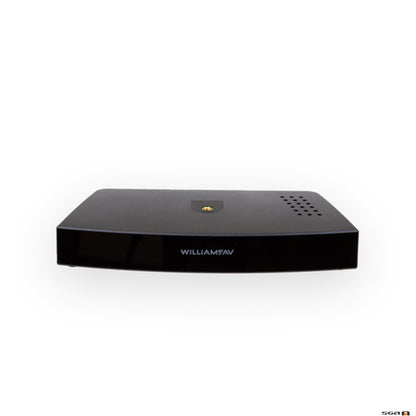

Thanks to the upgraded LED system, the IRT3 provides comprehensive coverage of up to 32,000 sq ft (2,972 sq m), overcoming challenges like background noise, reverberations, and distance from the sound source. Its robust signal ensures consistent audio performance throughout large spaces, eliminating the need for additional units or equipment.
This two-channel infrared transmitter is engineered for AV professionals and includes an integrated modulator and emitter. It operates on switchable carrier frequencies and offers optional Power-over-Ethernet (PoE) functionality, enabling remote power delivery up to 30 metres. Additionally, remote RS-232 control offers convenient management and flexibility.
With its compact and sleek design, the IRT3 can be easily installed and discreetly integrated into any space. Perfect for corporate environments, conference rooms, or areas requiring privacy, it provides clear, high-quality audio within a single room while preventing signal spillover into adjacent spaces. Ideal for any setting where confidentiality is key.
SYSTEM INCLUDES
- 1x WI-IRT3 – Infrared Transmitter

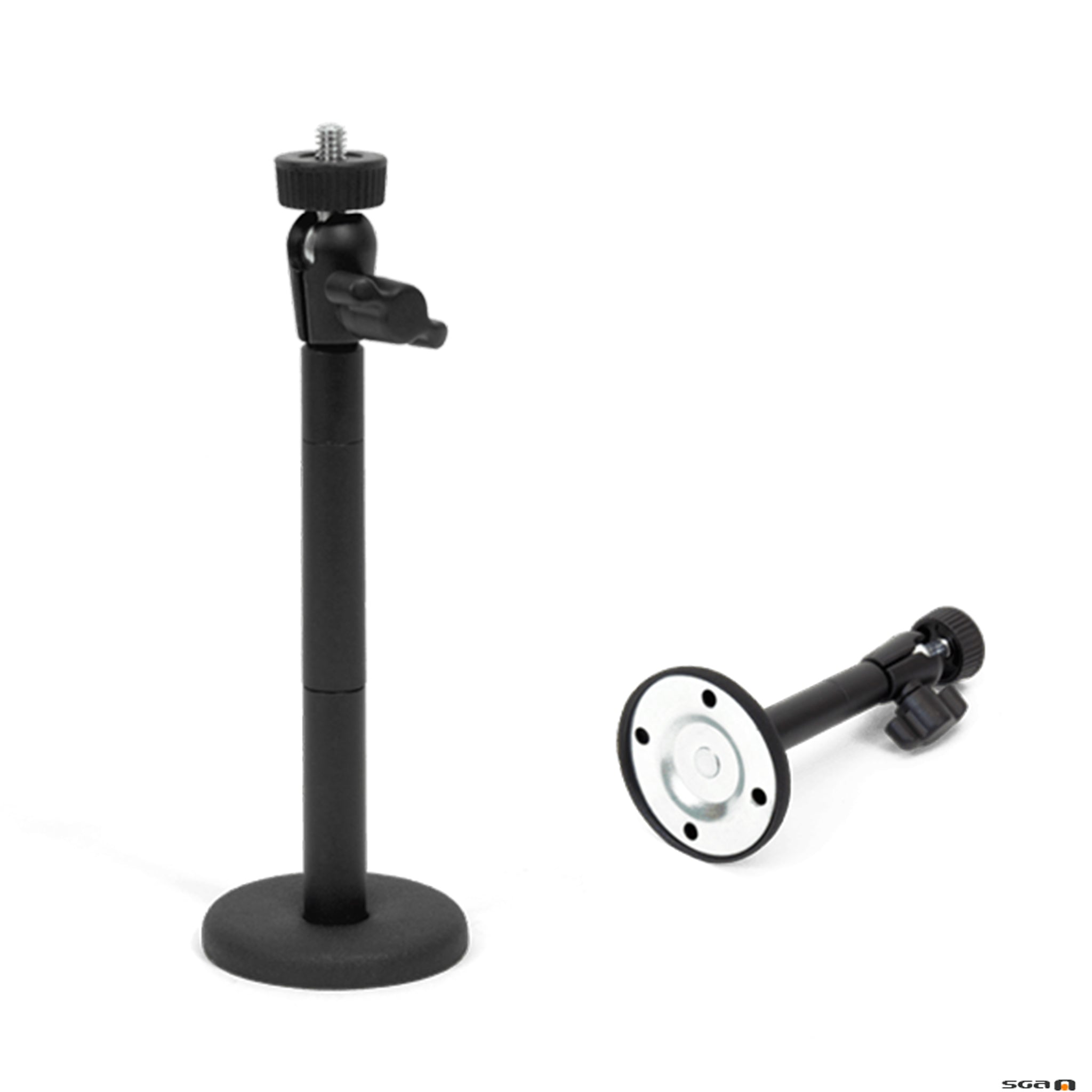

- 1x WI-BKT024 – Wall/Ceiling Mounting Bracket

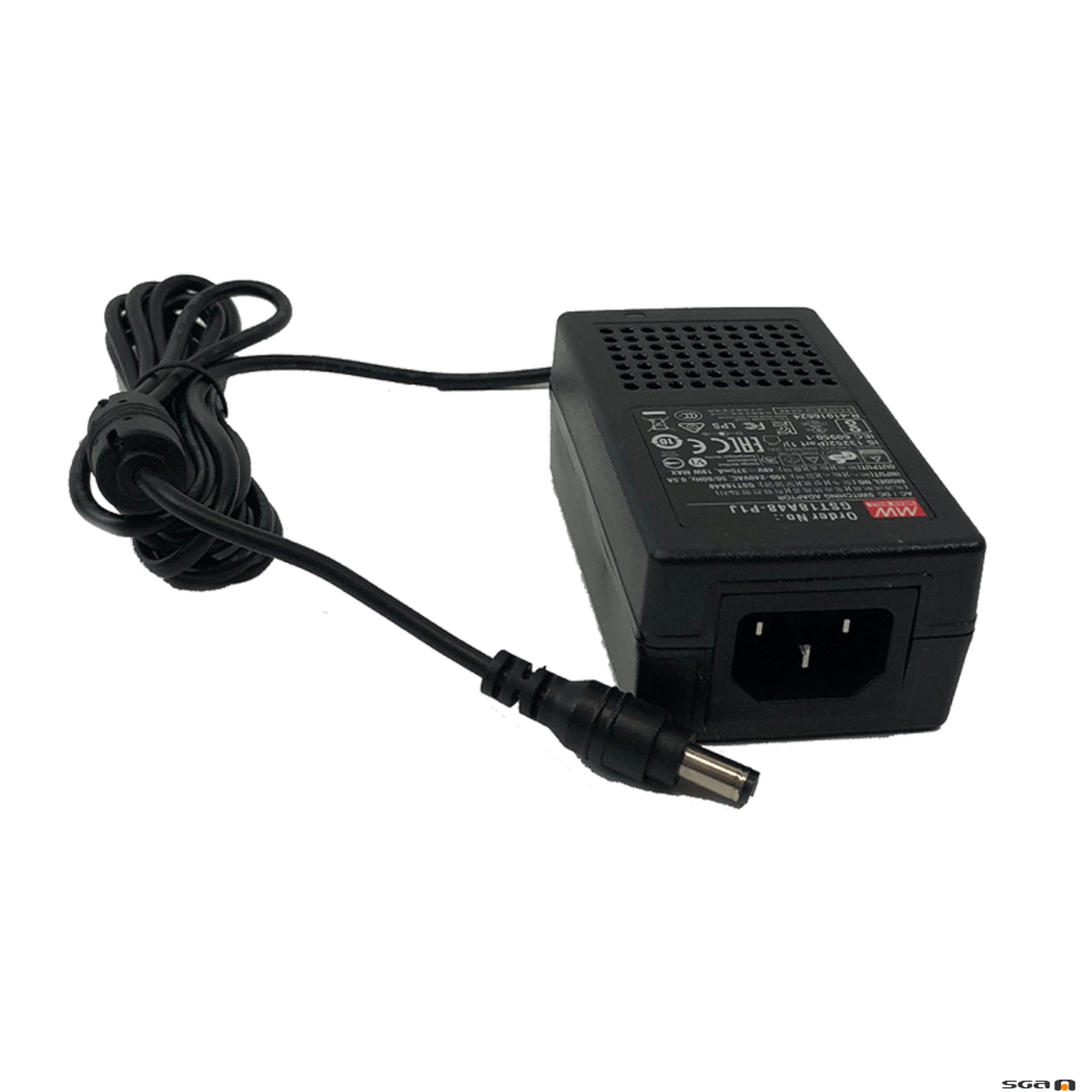

- 1x WI-TFP057 – International Power Supply with Line Cord
How It Works
The IR T3 can be controlled remotely via RS-232 commands. The commands include:
- Powering the unit on/off
- Remotely setting the IR frequency (2.3/2.8 or 3.3/3.8)
- Muting the outgoing audio without powering off
- Turning back panel LEDs on or off
- Troubleshooting abilities
|
Dimensions: |
9.0″ W (229 mm) x 3.8″ D (97 mm) x 1.4″ H (36 mm) |
|
Weight: |
0.84 lb. (0.38 kg) |
|
Color: |
Black |
|
Power Supply: |
TFP 057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output |
|
DC Power Input: |
2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive |
|
Power Indicator: |
Green LED |
|
Sleep/Power Save Mode: |
Shuts off IR when no audio present for 12 minutes |
|
Modulation: |
FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis |
|
Baseband Frequencies: |
2.3, 2.8, 3.3, 3.8 MHz |
|
Coverage Area: |
Up to 32,000 sq. ft (2,972 sq. m) in single-channel mode with the RX22-4 receiver |
| Microphone gain adjust: | Rotary 10 dB range |
| Microphone channel switch: | Selects microphone input to Ch. A or Ch. B |
| Microphone input: | 3.5 mm, stereo jack with signal and bias connected to tip, electret microphone compatible (6 VDC bias supply with 2.7 k ohm series resistor) |
|

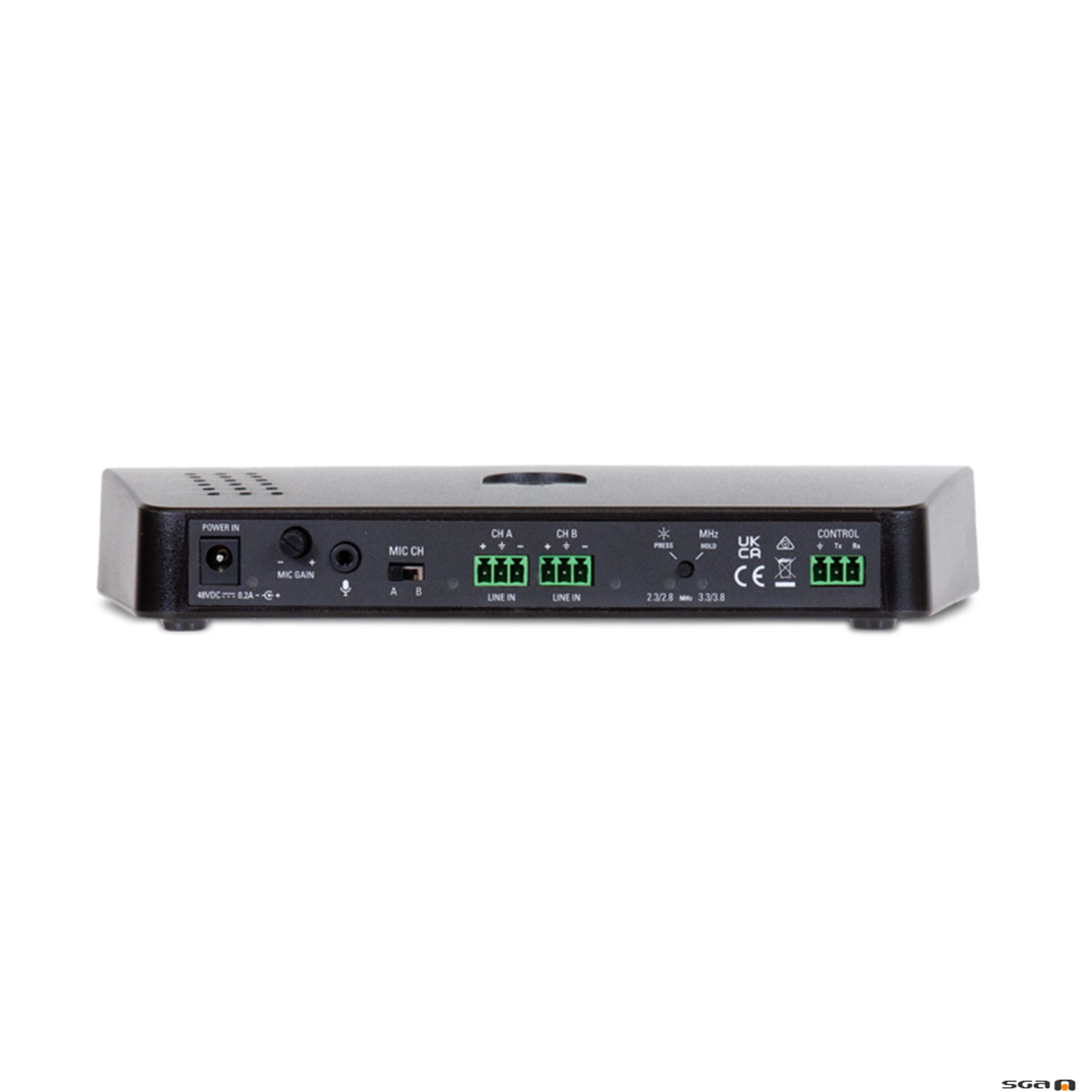

Audio Inputs: |
Line inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio |
|
Audio Indicators: |
One yellow LED per channel. Lights up and stay on steady with minimum audio level. |
|
Signal-to-Noise Ratio: |
70 dB (line input) |
|
Frequency Response: |
95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs) 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input) |
|
Operating Requirements: |
32°-122°F (0-50°C) |
|
Mounting Kit: |
Wall or Ceiling mount: BKT 024 Omnidirectional mount |
|
Compatible Receivers: |
WIR RX22-4, IR RX20 |
|
Warranty: |
2-year warranty against component failure and manufacturing defects. See Full Warranty statement on the website for details. |
|
Approvals/Regulatory Compliance: |
CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE |
