Optimal ZonePad 8
Optimal Audio Touchscreen Wall Controller for Zone processors. 8" tempered glass colour touchscreen for simple and intuitive user control.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**

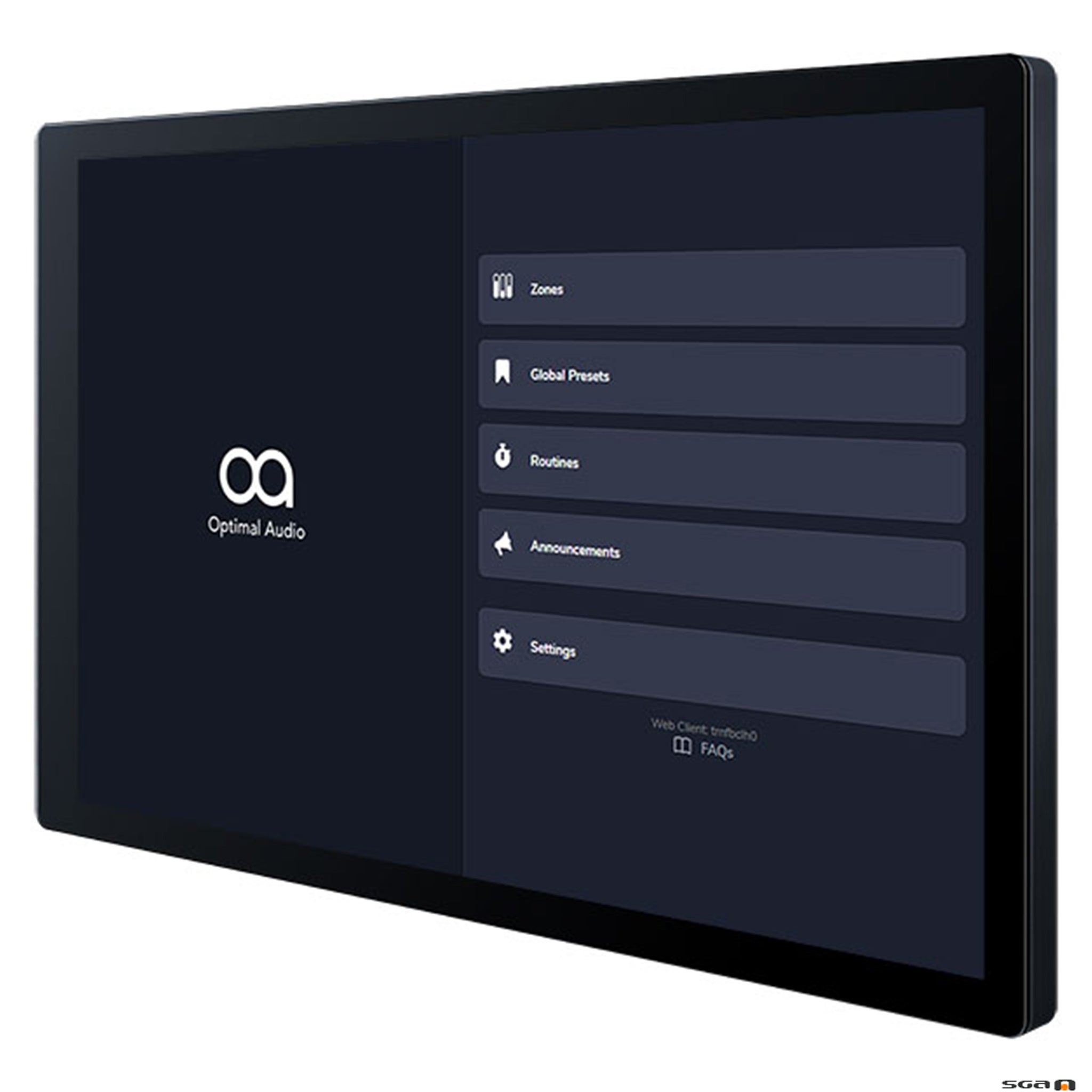

ZonePad 8 is an elegant wall-mounted touchscreen controller, providing users with clear and intuitive access to the controls of up to eight zones within an Optimal Audio commercial audio system. With a vibrant 8-inch IPS touch display and tempered glass capacitive touch panel, ZonePad 8 offers a sophisticated and user-friendly interface, providing users with the ability to operate complex audio systems effortlessly.
ZonePad 8 enables intuitive control of source switching, volume and microphone levels, as well as triggering advanced features like routines or message playback in up to eight zones, with advanced device configuration setting access to individual zones and permission settings over the functions available to each zone, making it ideal for dynamic commercial environments.
Its seamless integration with Optimal Audio Zone controllers, powerful quad-core processor, and secure design ensures reliable and responsive control tailored to any venue’s unique needs.
Power is delivered via POE from a compatible router or switch.
For venues where the installer cannot run cables, ZonePad 8 can be powered locally with an optional 12v power supply and connect to the network and Zone controller via WIFI.
- 8-inch tempered glass touch panel
- Durable and impact-resistant
- Simple installation
- Auto-detection of Zone controllers
- Flexible mounting options
| TYPE | 8 zone touchscreen wall controller |
| DISPLAY | 8-Inch, IPS, Capacitive, 10 multi touchpoints, tempered glass, impact resistant to IK2 standard |
| RESOLUTION | 1280 x 800, 189 DPI |
| DATA PROTOCOL | Optimal Audio proprietary over CAT 5 |
| WEBAPP SYSTEM CONNECTION | Ethernet via RJ45 adaptor / Wireless |
| POWER | POE or optional 12V adaptor |
| COMPUTING | Allwinner A133 Quad-Core Cortex-A53 @ 1.5GHz 2GB RAM OS – Android 14 |
| ENCLOSURE | Satin finished ABS, UL94, V0 rated material |
| COLOUR | Black |
| MOUNTING SYSTEM | Supplied with surface mount plate, compatible with single gang EU, US, and UK back boxes |
| DIMENSIONS | (W) 146mm x (H) 86.2mm x (D) 39.3mm (W) 5.75” x (H) 3.39” x (D) 1.55” |
| WEIGHT | 0.35kg (0.8lbs) |
Related Products
-

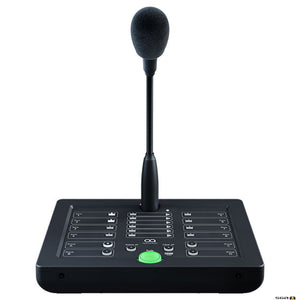

Optimal Talk 8
Optimal Audio Talk 8 - 8 Zone Paging Station for Zone processors.
Regular price $1,119.00Regular price -

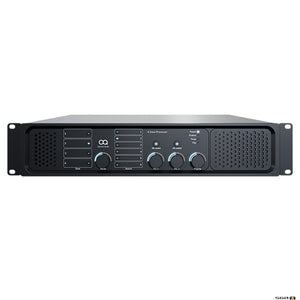

Optimal Zone 4
Optimal Audio 4 Zone Mixer/Controller with DSP and WebApp. 2 Mic, 4 Stereo Line Inputs, 2 HDMI inputs, 4 line outputs.
Regular price $2,239.00Regular price -

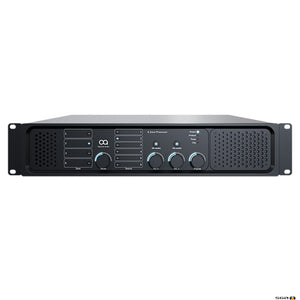

Optimal Zone 4P
Optimal Audio Powered 4 Zone Mixer/Amplifier/Controller with DSP and WebApp. 2 Mic, 4 Stereo Line Inputs, 2 HDMI inputs, 4 amplifier outputs (100W at 4 or 8 Ohms).
Regular price $3,385.00Regular price -
Optimal Zone 8
Optimal Audio 8 Zone Mixer/Controller with DSP and WebApp. 2 Mic, 4 Stereo Line Inputs, 2 HDMI inputs, 8 line outputs (can be configured as 8 mono or 4 stereo).
Regular price $2,889.00Regular price -

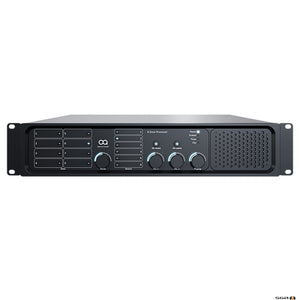

Optimal Zone 8P
