TOA F05BT
30 Watt 2 way surface mount speaker Black 60hz-20Khz 100v / 70v line & low impedance 8 Ohms with speaker bracket, cover & screws.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**

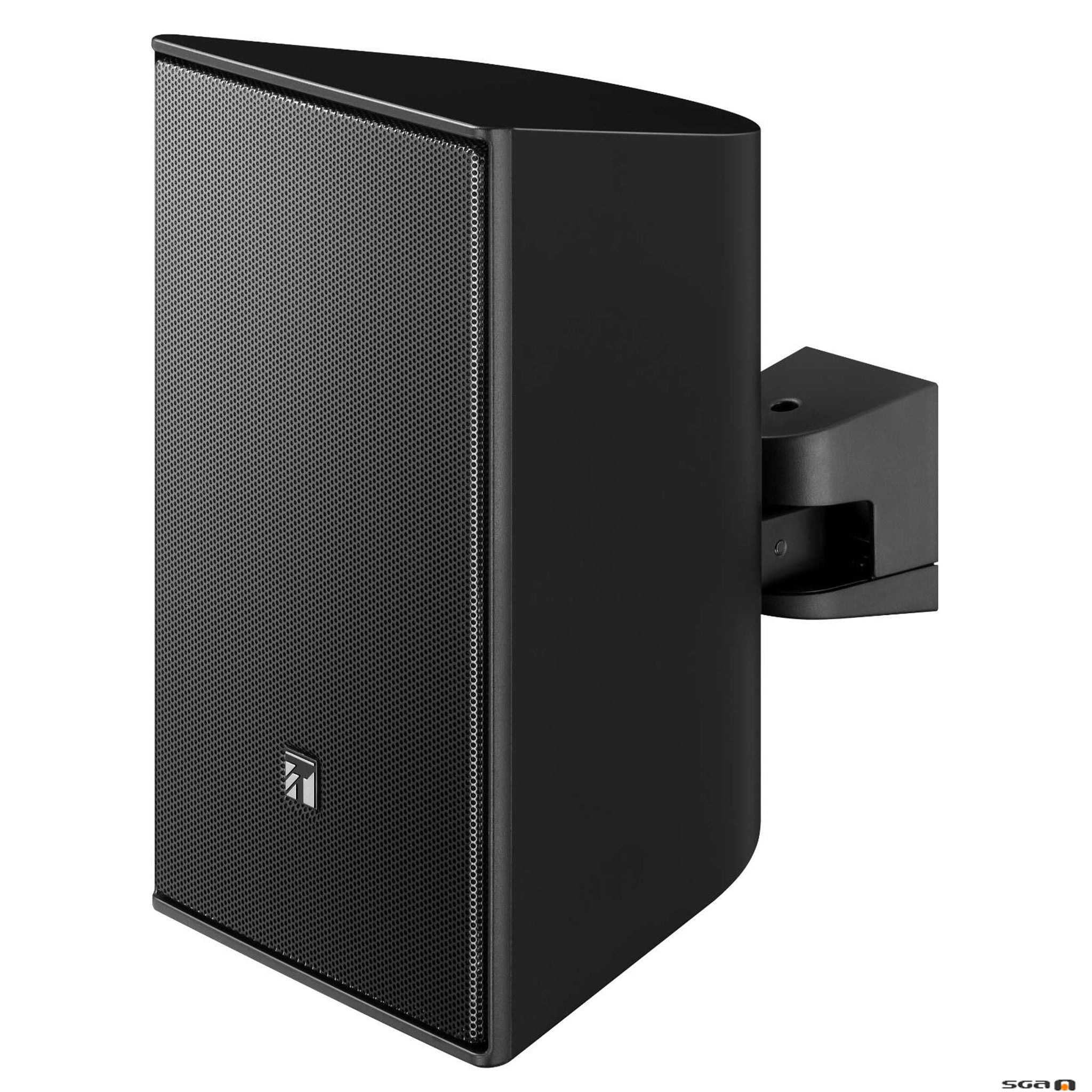

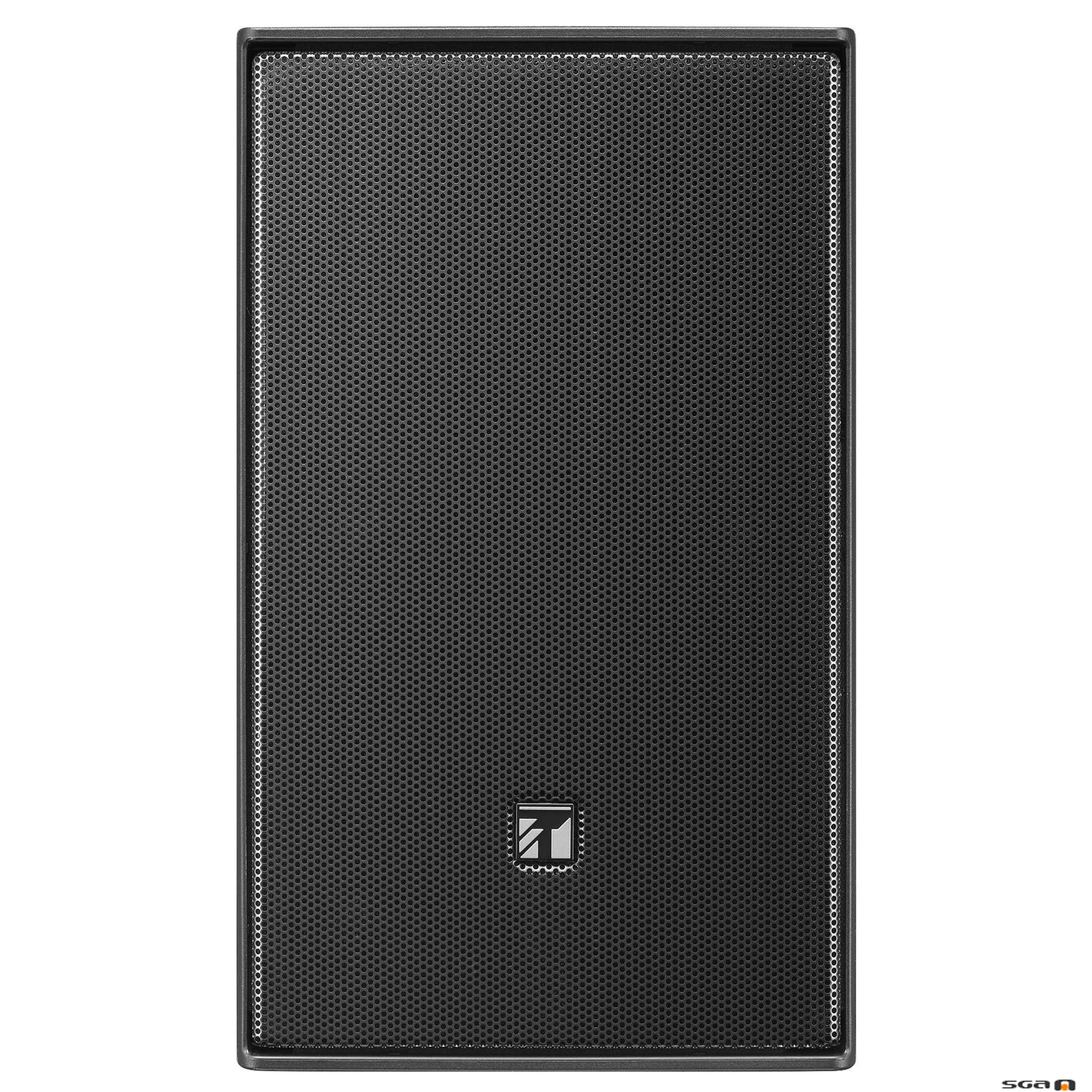

F-05BT is a 2-way surface-mount speaker system designed to deliver high-quality audio for a variety of applications. This versatility makes it ideal for foreground or background music playback, as well as public address announcements. The F-05BT boasts a sleek aesthetic that seamlessly integrates with walls and ceilings hardware incorporates a temporary hanging feature, allowing for easy and secure single-handed installation with effortless wiring and angle adjustments.
- Frequency Response 80 Hz - 20 kHz, -10 dB at installation in 1 /2 free sound field
- Power Handling Capacity: Rated noise power: 30 W ( 8 Ω ), Continuous program: 60 W ( 8 Ω )
- Rated Input: 30 W (100 V line, 70 V line)
- Sensitivity: 89 dB (1 W, 1 m) (1 - 10 kHz, pink noise)
- Speaker Component: Low frequency: 13 cm (5) PPcone-type, High frequency: 25 mm (1) dome tweeter
- Enclosure Bass-reflex type
- Rated Input 30 W (100 V line, 70 V line)
- Power Handling Rated noise power: 60 W (8 Ω)
- Continuous program: 120 W (8 Ω)
- Rated Impedance 8 Ω 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
- Sensitivity 90 dB (1 W, 1 m) at installation in 1/2 free sound field
- Frequency Response 60 Hz - 20 kHz, –10 dB at installation in 1/2 free sound field
- Crossover Frequency 4.5 kHz
- Directivity Angle Horizontal: 100°, Vertical: 100°
- Speaker Component Low frequency: 13 cm (5") PP cone-type
- High frequency: 25 mm (1") dome tweeter
- Input Terminal: Push-in Terminal
- Installation Environment : Indoor installation
- Operating Temperature: -10 °C to +50 °C (14 °F to 122 °F)
- Enclosure: HIPS, black (RAL 9011 equivalent), paint
- Grille: Aluminum, black (RAL 9011 equivalent), paint
- Speaker bracket: Die-cast aluminum, black (RAL 9011 equivalent), paint
- Base bracket: Steel plate, t4, black (RAL 9011 equivalent), paint
- Base bracket cover: HIPS, black (RAL 9011 equivalent)
- Dimensions 162 (W) x 274 (H) x 164 (D) mm (6.38" x 10.79" x 6.46")
- Weight 2.7 kg (5.95 lb)
- Included Accessories Speaker bracket x 1, Base bracket x 1, Base bracket cover x 1, Bracket fixing screw x 1 set
- Optional Accessories Adapter plate: HY-F05W Speaker stand: ST-34B Note: K&M 19780 or K&M 19610 is required.
