QSC AD-S112-sw
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**

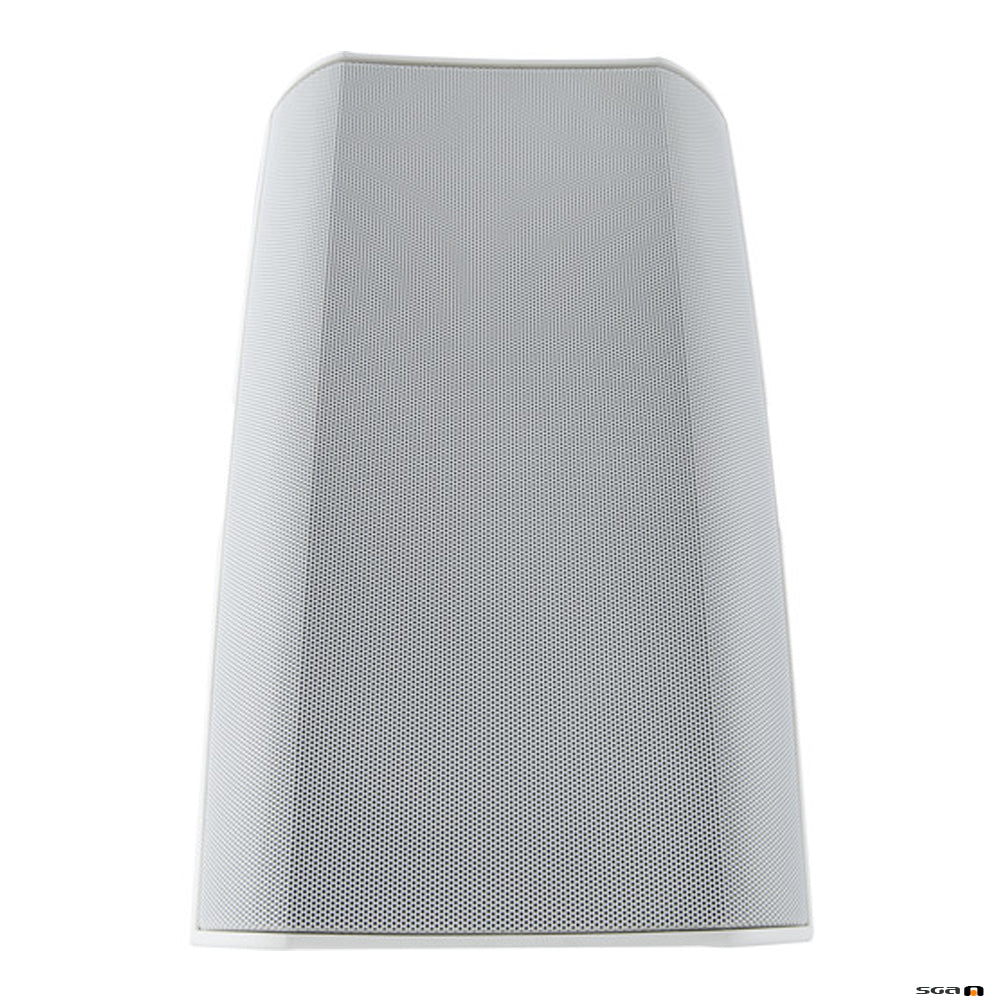

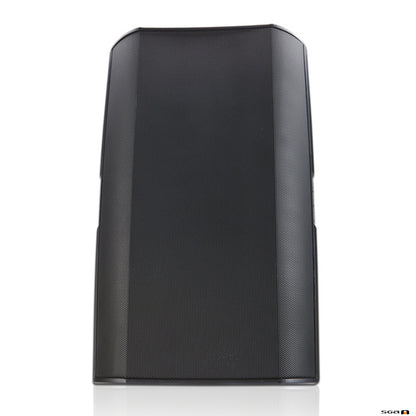

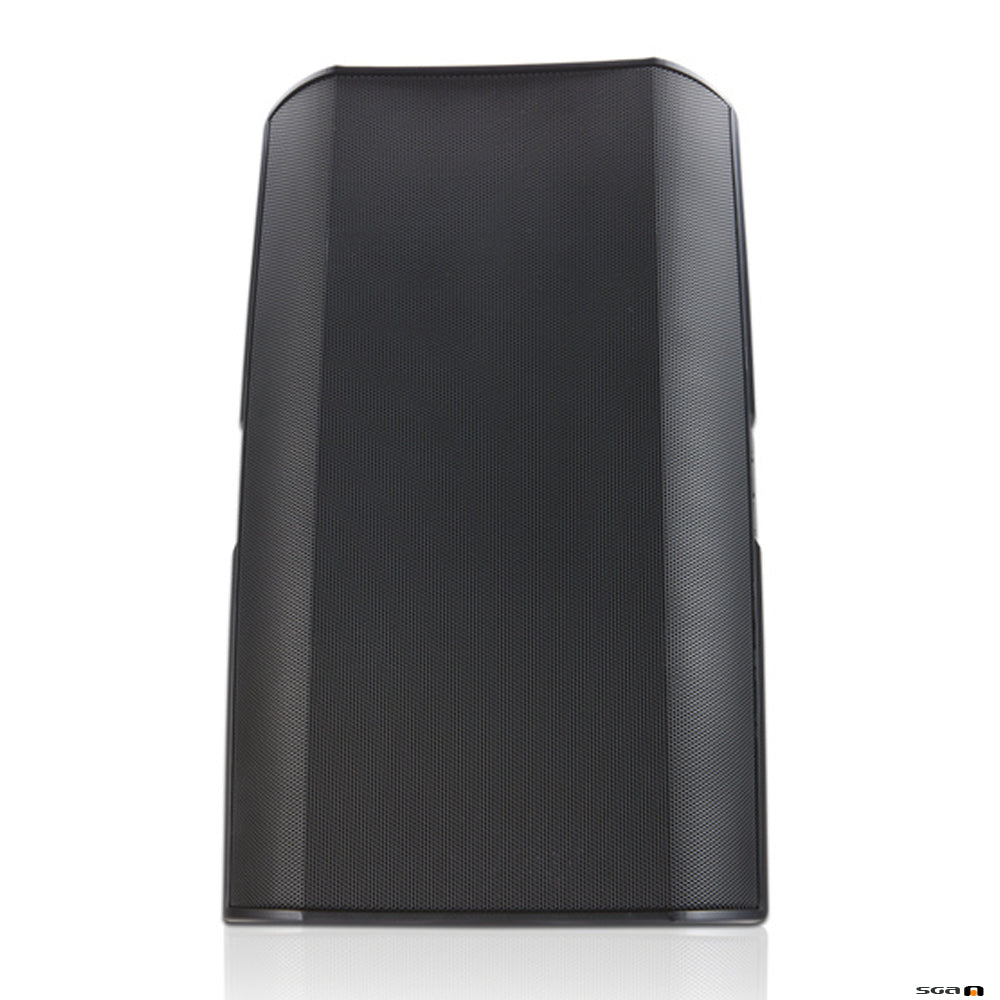

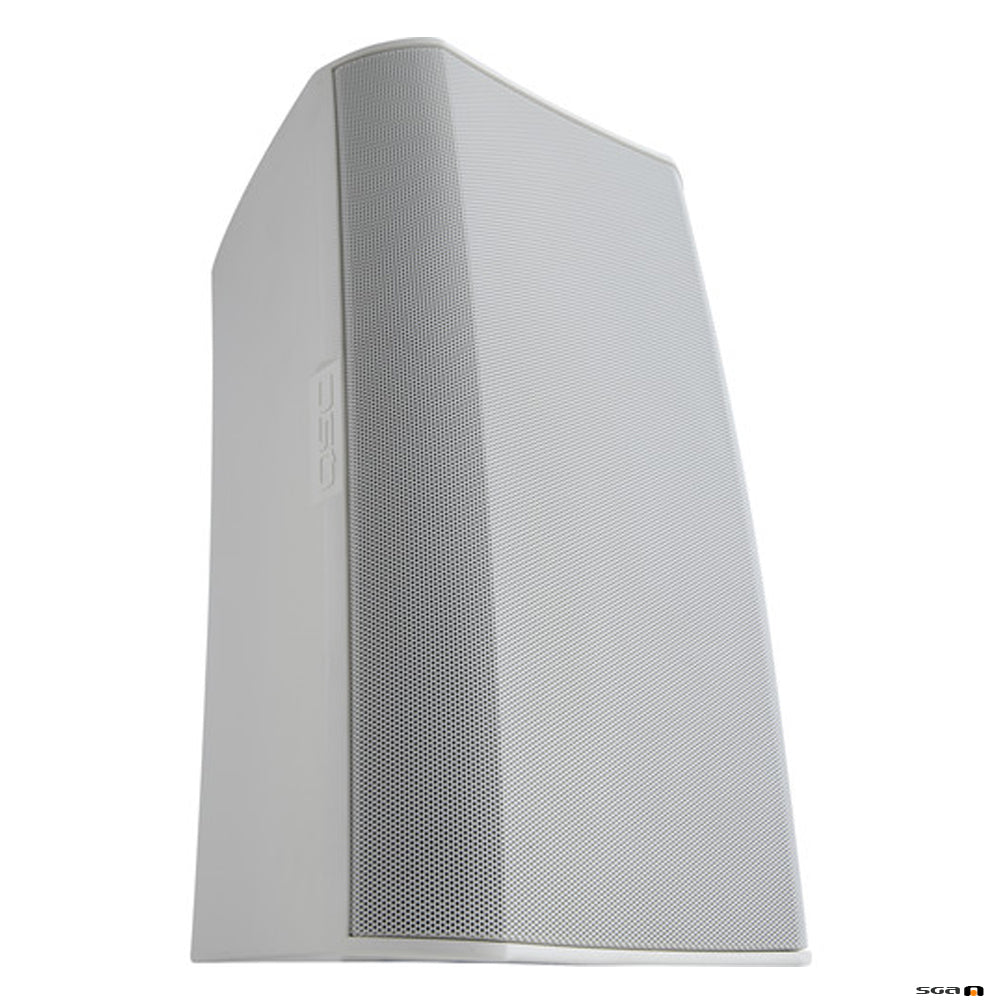

QSC AD-S112-sw AcousticDesign is a low impedance, surface mounted, 12 direct radiating subwoofer. An ideal companion to AcousticDesign? full range models, the AD-S112sw allows impressive low frequency expression within a complimenting form factor, suitable of demanding foreground and background sound reinforcement applications. AcousticDesign? series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign? series provides integrators a versatile and confident install solution.
- 12-inch weather treated woofer
- TFR™ (Turbulent Flow Reduction) port provides optimal resonant tuning and high velocity air flow
- Maximum peak SPL 121 dB
- Suggested filter points: 32 Hz high-pass, 24 dB/octave Butterworth; 100 Hz low-pass, 24 dB/octave Butterworth
- Included YMS12 yoke mount maximizes boundary plane coupling while reducing vibration transmission
- Optional M10 Kit-C for additional installation versatility
- Lightweight ABS enclosures offer long-term durability and lasting good looks

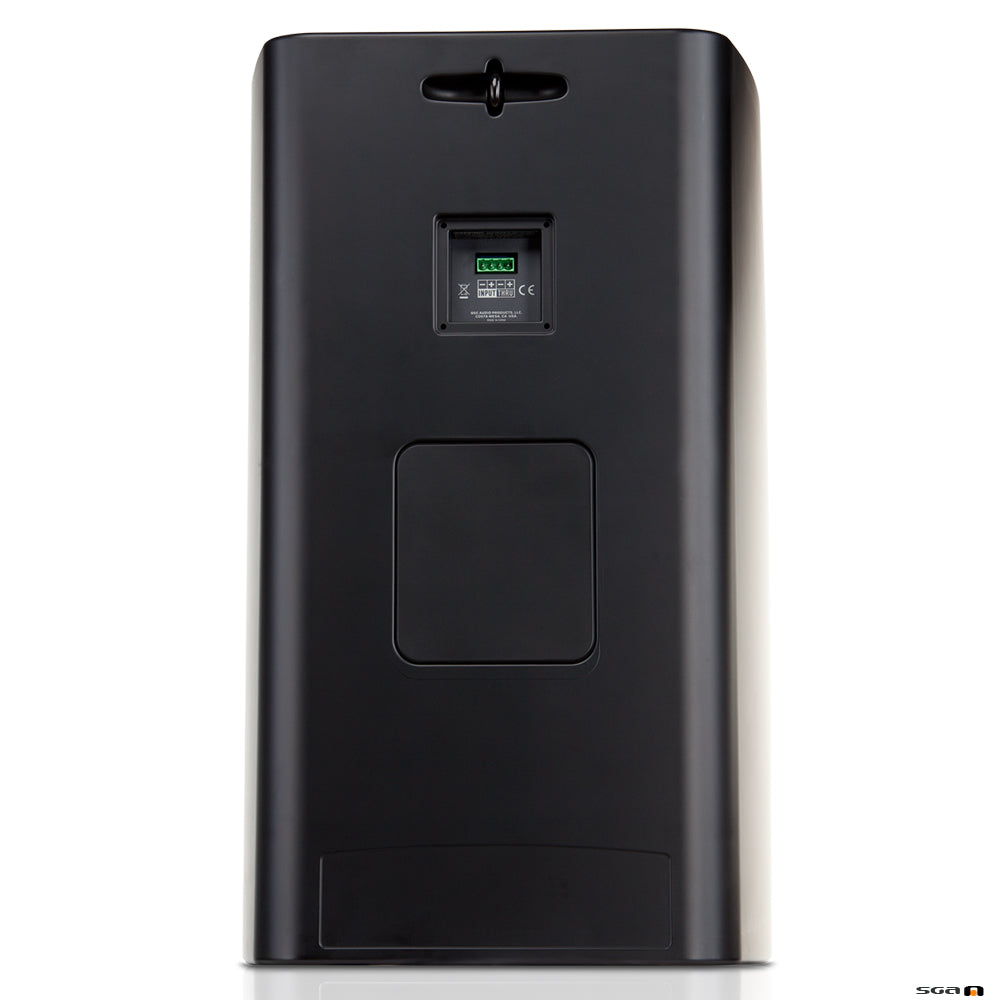

- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011)
- Complete EASE, CF2, CAD, and BIM information available online
| System Details | AD-S112sw |
| Effective frequency range1 | 30 - 135 Hz |
| Rated noise power / voltage2 | 300 watts / 50 volts (rms) |
| Broadband Sensitivity3 | 90 dB SPL |
| Maximum continuous SPL4 | 115 dB |
| Maximum peak SPL4 | 121 dB |
| Rated impedance | 8 ohms |
| Recommended amplifier power (loudspeaker "program" power) | 600 watts |
| Transformer taps | n/a |
| HF transducer | - |
| LF transducer | 12-inch weather resistant paper cone woofer, 2.5-inch / 64mm voice coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| Yoke material | Powder coated galvanized steel (included) |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Testing | The AD Series loudspeakers qualified for outdoor use using
the following tests:
|
| Product Dimensions (HWD) inches | 23.4 x 13.9 x 12.7 |
| Product Dimensions (HWD) mm | 594 x 354 x 323 |
| Net weight | 29 lb / 13.2 kg |
| Shipping weight | 43.1 lb / 19.6 kg |
| Shipping dimensions | 27.5-inch x 21.75-inch x 18.5-inch (698 x 552 x 470 mm) |
| Included accessories | YMS12 yoke mounting system, Euroblock connector, input panel cover |
