Bosch LBC-3432/03
Bosch LBC-3432/02 20W uni-directional metal housing sound projector. High efficiency and designed for speech, music.
Regular price
$368.01
Regular price
$393.80
Sale price
$368.01
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$368.01
Regular price
$393.80
Sale price
$368.01

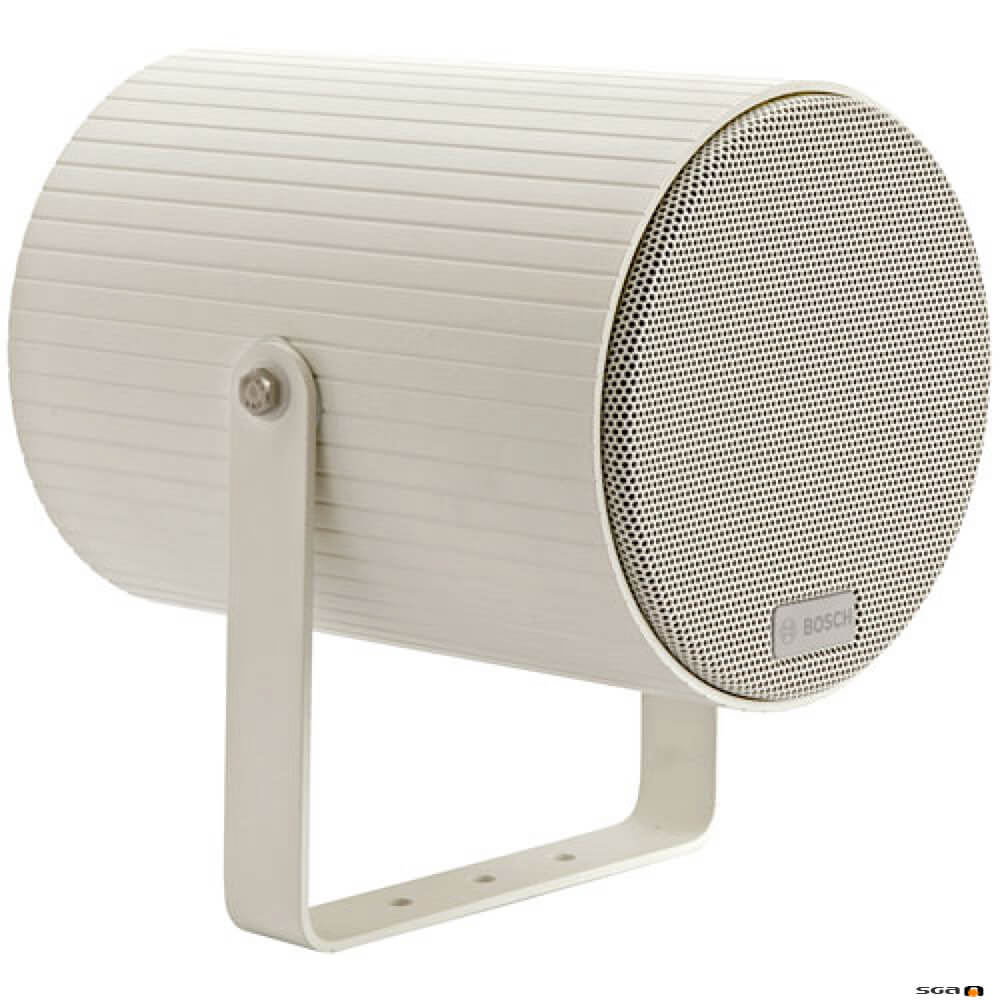

Bosch LBC-3432/02 20 Watt uni-directional metal housing sound projector. IP66 rated, ceiling or wall mounted. 100V line with taps at 20, 10, 5 and 2.5 Watts, 92dB SPL 1W/1m, 150Hz - 20kHz (-10dB), 2.6kg. 146x200mm (Dia. x L), white
The Bosch LBC-3432/02 is a powerful, EN54-24 sound projector speaker for speech and music reproduction in indoor and outdoor applications.
The sturdy, aluminum enclosure is finished in white (RAL9010) and has provisions for cable loop through connection and mounting of a line or loudspeaker supervision board.
The LBC3432/03 sound projector is EN 54-24 certified, suitable for emergency paging in voice alarm systems.
The Bosch LBC-3432/02 is a powerful, EN54-24 sound projector speaker for speech and music reproduction in indoor and outdoor applications.
The sturdy, aluminum enclosure is finished in white (RAL9010) and has provisions for cable loop through connection and mounting of a line or loudspeaker supervision board.
The LBC3432/03 sound projector is EN 54-24 certified, suitable for emergency paging in voice alarm systems.
- Excellent speech and music reproduction
- Simple power setting
- Provision for supervision board mounting
- Suitable for loop-through cabling
- Robust aluminum extrusion enclosure
- (Suspended) ceiling and/or wall mounting
- Water resistant & dust protected to IP66
- EN 54‑24 certified
- BS 5839-8 compliant
| Maximum power | 30 W |
| Rated power (PHC) | 20 W |
| Power tapping | 20 / 10 / 5 / 2.5 W(1.25 W, 70 V only) |
| Sound pressure levelat 20 W / 1 W (1kHz, 1 m) | 107 / 94 dB (SPL) |
| Opening angle at 1 kHz / 4 kHz (-6 dB) | 224° / 56° |
| Effective frequency range (-10 dB) | 170 Hz to 20 kHz |
| Rated voltage | 70 V / 100 V |
| Rated impedance | 250 / 500 ohm |
| Dimensions (D x L) | 146 x 200 mm (5.7 x 7.9 in) |
| Weight | 2.6 kg (5.7 lb) |
| Color | White (RAL 9010) |
| Material | Aluminium |
| Connector | Screw terminal block |
| Cable diameter | 6‑12 mm (0.24‑0.47 in) |
| Operating temperature | -25 ºC to +55 ºC (-13 ºF to +131 ºF) |
