FBT Ventis 206A
2x 6.5", "/1" self-powered speaker Active Speaker With DSP
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**

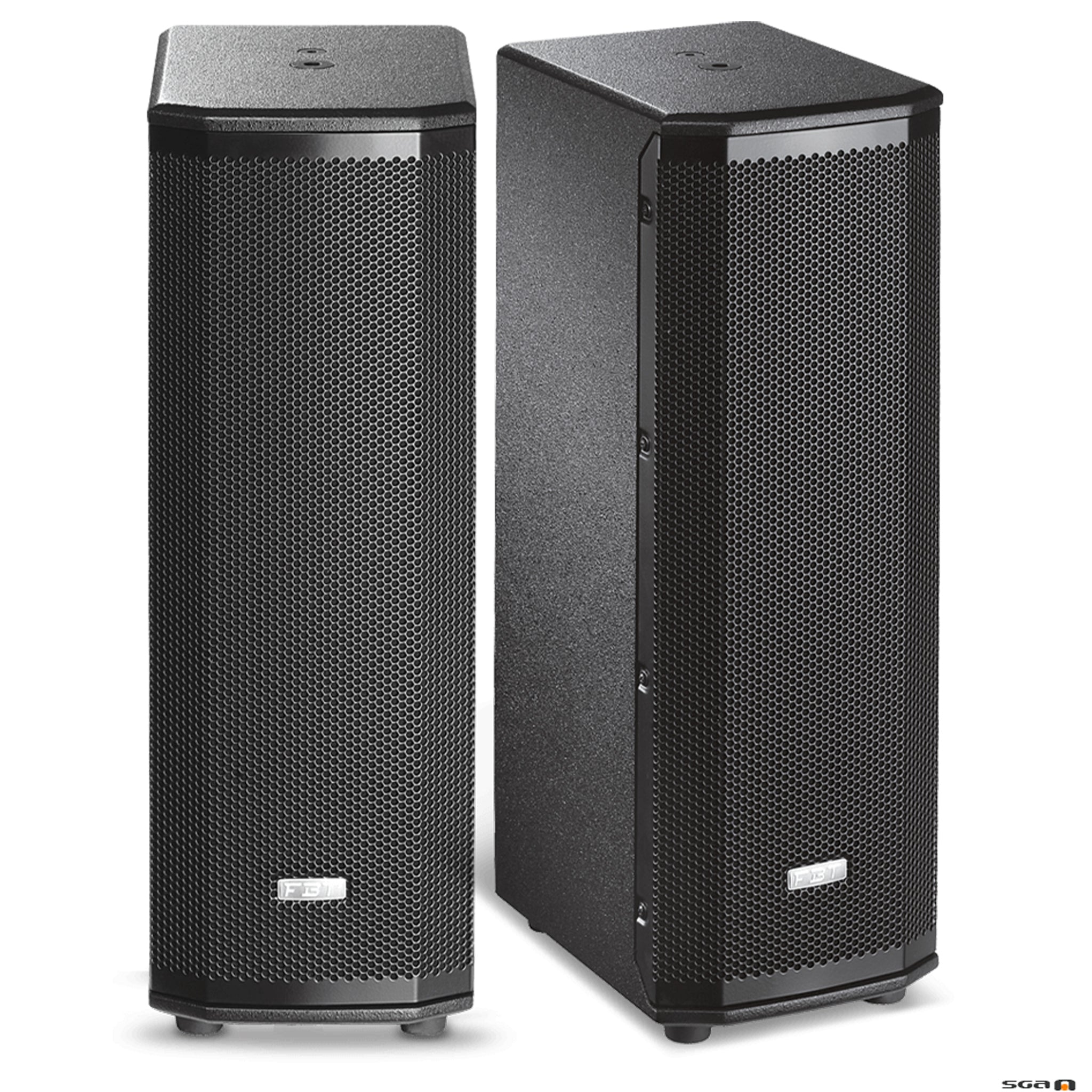

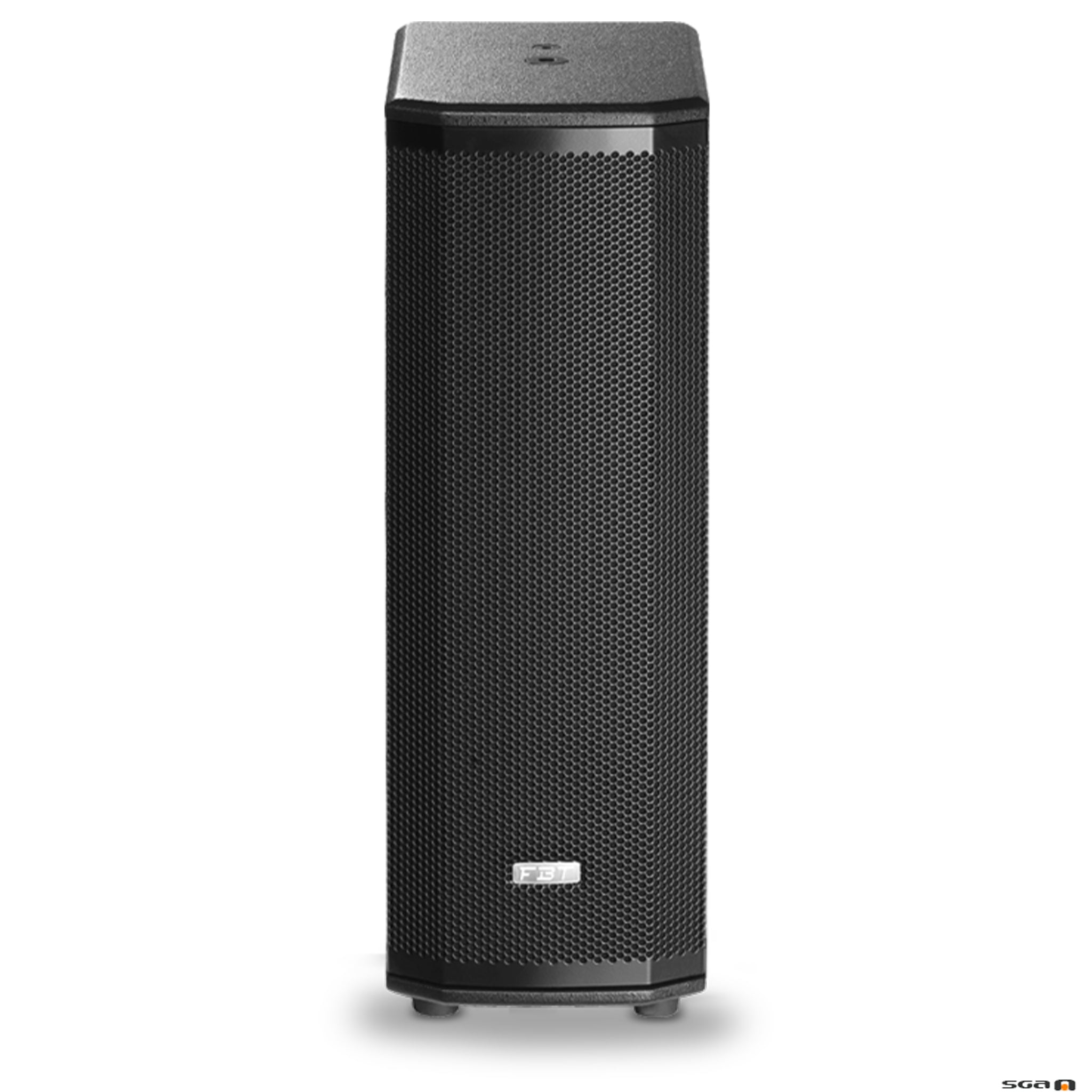

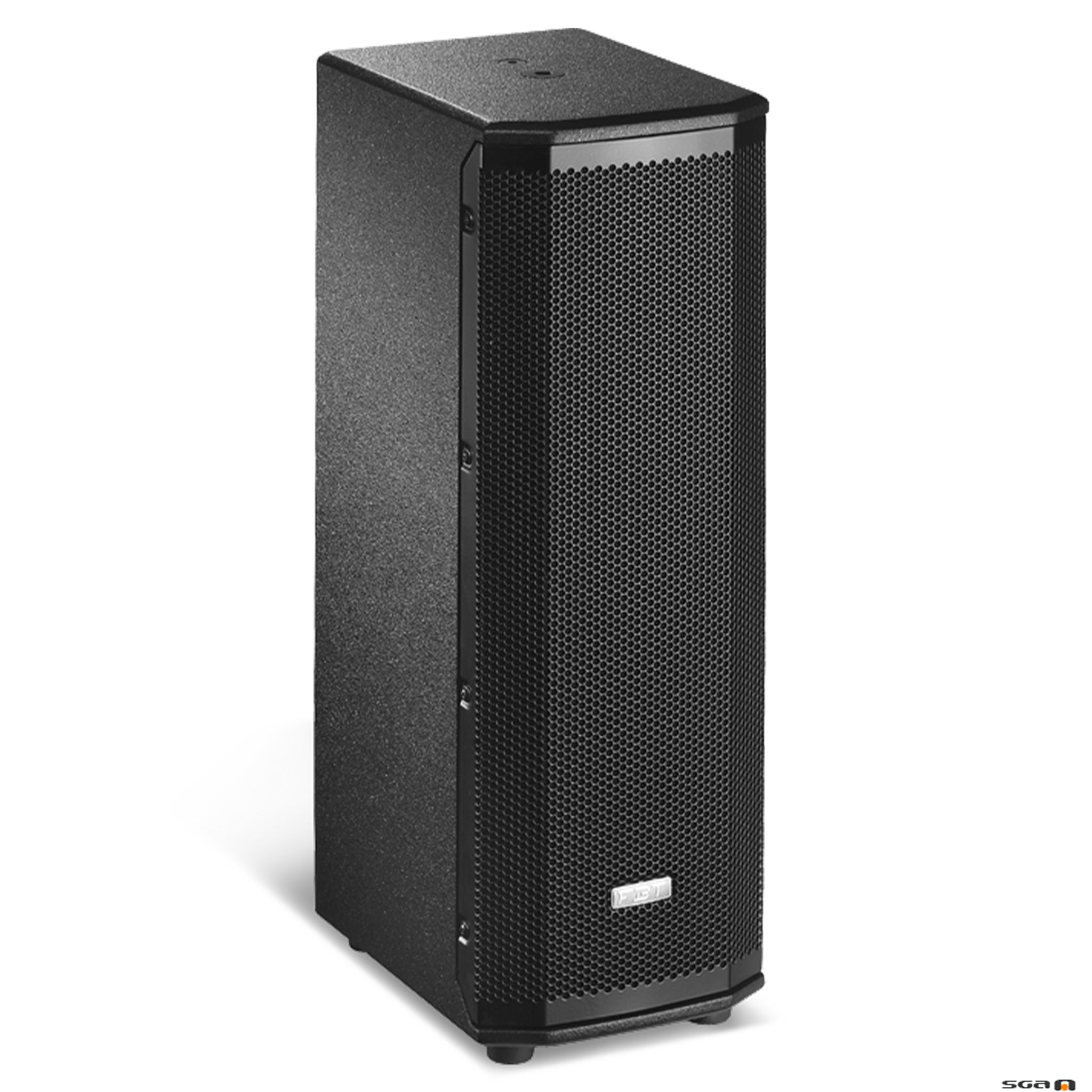

Ventis 206A is part of the Ventis range, which is ideal for portable performance or fixed installation.
This active speaker includes 2 x 6.5" woofers and a 1" rotatable horn.
The built-in DSP LCD-screened amp module provides 700W + 200W, delivering 131dB SPL.
It features a 15mm Baltic birch ply cabinet with a 35mm pole mount and a full-length grille. Optional brackets for installation are available.
- Size: 2-way Bi-amped
- Speaker components: 2 x 6.5" woofers, 1" x tweeter
- 700 W class D (LF) and 200 W class H (HF)
- DSP with 6 presets
- Inputs: XLR / TRS combo jack and RCA (RCA, stereo)
- XLR male link output
- Housing material: 12 mm birch plywood
- Dispersion pattern (nominal): 70° x 50° (H x V, rotatable)
- Frequency response: 70 Hz - 20 kHz (-6 dB)
- Max. sound pressure level (SPL): 131 dB
- Dimensions: 190 x 545 x 260 mm (W x H x D)
- Weight: 12 kg Colour: black.
- Configuration: 2 Way
- Frequency response: 70Hz - 20kHz -6dB
- Low frequency woofer: 2x 6.5" / 1.5" coil
- High frequency driver: 1" / 1.4" coil
- Maximum SPL cont/peak: 124/131dB
- Dispersion: 70 x 50 Rotatable
- Input impedance: 22kOhm
- Input connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
- Net Dimension (WxHxD): 190 x 560 x 260mm
- Net Weight: 12.3kg
- Transport Dimension (WxHxD): 290 x 660 x 360mm
- Transport Weight: 14.3kg
- AC Power requirements: 640VA
- Built-in amplifier LF/HF: 900w (700w LF/ 200w HF)
- Built-in amplifier peak LF/HF: 1800w (1400w LF + 400w HF)
- Power cord:5mt
