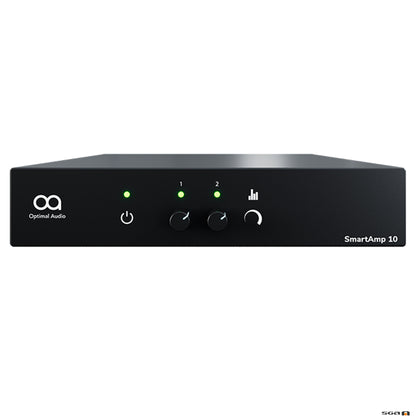

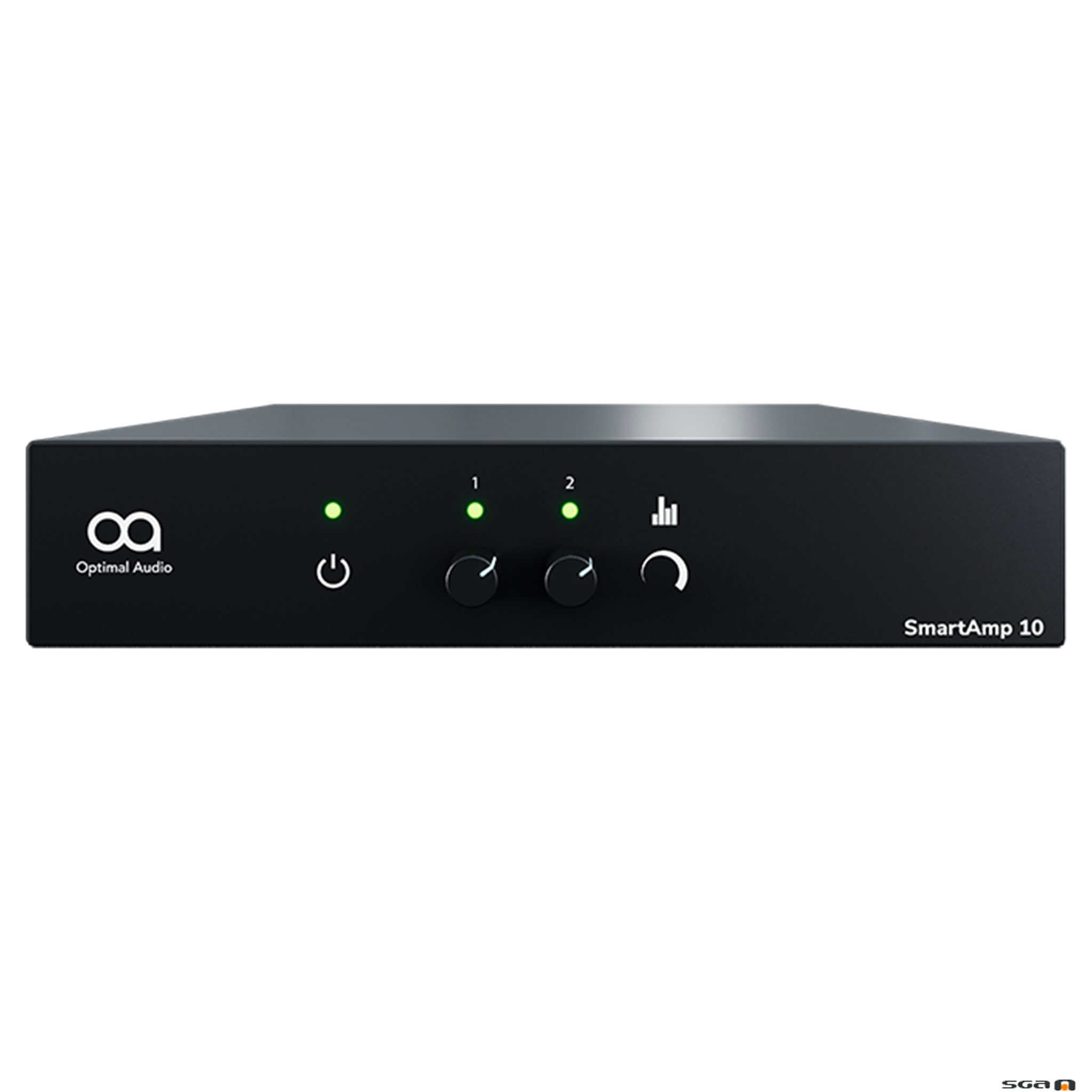

Optimal SmartAmp 10
Optimal Audio 2 x 125W Power Amplifier in a compact 1/2 RU chassis. The total of 250W is shared across the two channels. 125W per channel into 70-100V line or 4-16 Ohms
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
SmartAmp 10 is an amplifier with built in Digital Signal Processing (DSP) specifically tailored to optimise the performance of the Optimal Audio loudspeaker range.

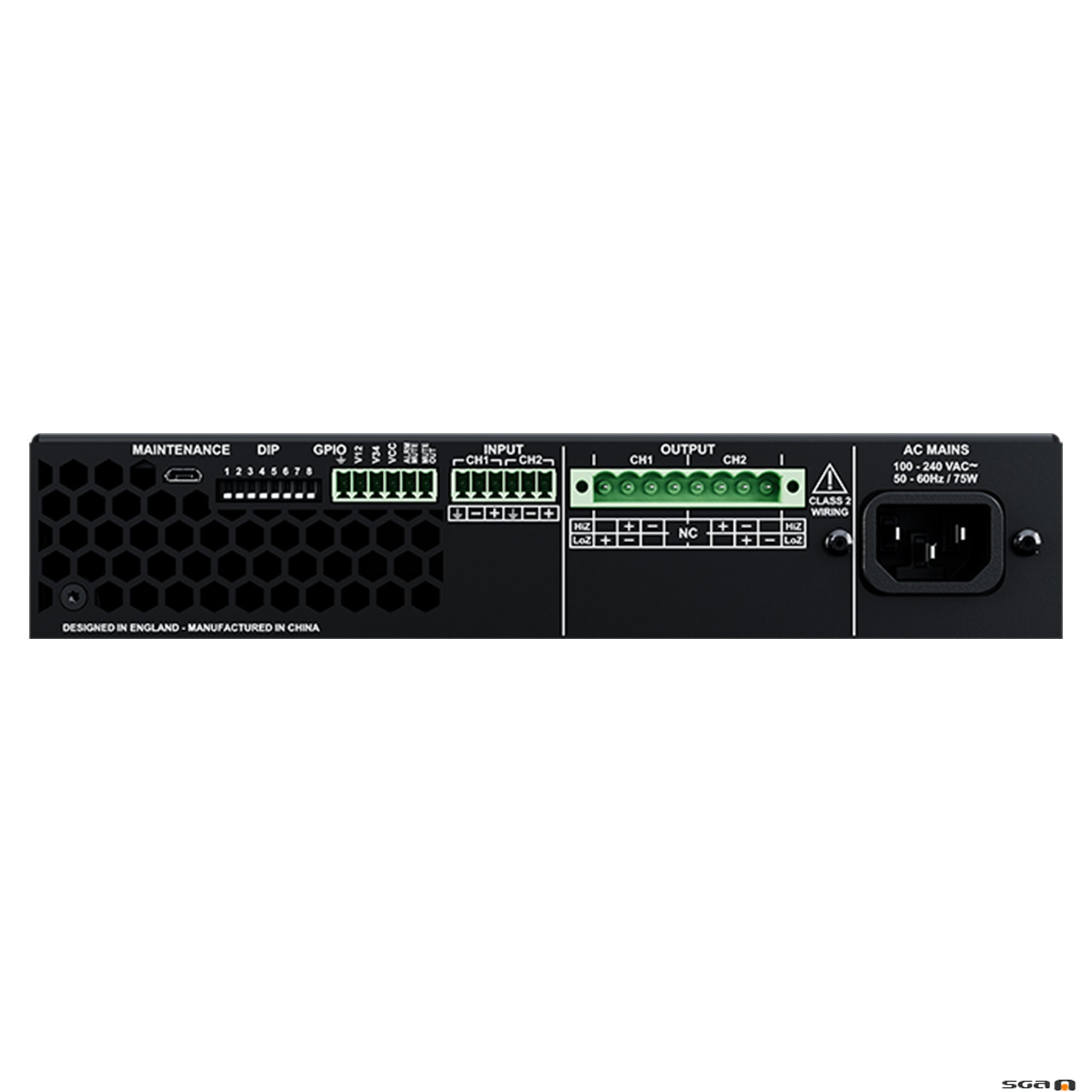

This two-channel power amplifier can drive both conventional low impedance and 70V – 100V loudspeaker loads. Internal DSP presets of Optimal Audio loudspeakers are selected by switches to the rear of the amplifier, which enable the appropriate EQ and overload protection settings.
The space efficient half-width, 1U, 19” rack housing enables two units to be mounted side by side with another SmartAmp 10 or SmartAmp 20 allowing up to 6 channels in a 1U space.
The SmartAmp 10 is capable of a maximum of 250W output shared between the two channels. This enables SmartAmp 10 to flexibly deliver power required for each channel depending on the system requirement. For example, if channel one was to only be using 20W of power for some Up speakers, channel two could deliver the remaining 230W of power for a more demanding application.
Power factor Correction power supply technology enables universal AC mains operation, eliminating the need for local market specific power regulation and potential reliability issues. The power supply delivers consistent, regulated power worldwide with ultra low standby power consumption for EuP2103 and energy star compliance.
- Desktop or rack mounted
- Signal processing presets for Optimal Audio loudspeakers
- 125 watts per channel into 4Ω-16Ω and 70V-100V line loudspeaker loads
- Power sharing technology enables 250 watts from a single channel
- Universal Mains, PFC and Energy Star Compliant
| TYPE | CLASS D power amplifier with DSP |
| POWER OUTPUT (4Ω -16Ω) | 2 x 125W |
| 70V-100V OUTPUT | 2 x 125W |
| DIGITAL SIGNAL PROCESSING | EQ & limiter presets for Optimal Audio loudspeakers |
| COOLING | Forced air cooling with fan |
| ANALOGUE IN/LINK | 2 balanced line inputs on Euroblock connectors |
| ANALOGUE INPUT IMPEDANCE | 10kΩ unbalanced, 20kΩ balanced |
| MAXIMUM ANALOGUE INPUT LEVEL | +24dBu |
| AMPLIFIER OUTPUTS | Euroblock |
| SIGNAL TO NOISE RATIO | > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load) |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz, +0/-0.25 dB (8 Ω load, 3 dB below rated power) |
| TOTAL HARMONIC DISTORTION | < 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power) |
| SLEW RATE | 8.796V/µS at 70 V peak, low impedence, 17.77V/µS at 100 V peak, high impedence |
| DAMPING FACTOR | 370 with 8Ω load |
| CONTROL AND MONITORING | GPIO |
| DSP SAMPLE RATE | 48kHz |
| MAINS POWER INPUT | Universal Mains, 100-240V, 50-60Hz |
| MAINS CONNECTOR | IEC |
| POWER CONSUMPTION | 75W |
| HEAT GENERATED | 270 kJ per hour |
| DIMENSIONS | (W) 220mm x (H) 43.9mm x (D) 277mm (W) 8.67” x (H) 1.73” x (D) 10.91” |
| WEIGHT | 1.9kg (4.2lbs) |
