Bosch LS1-OC100E1

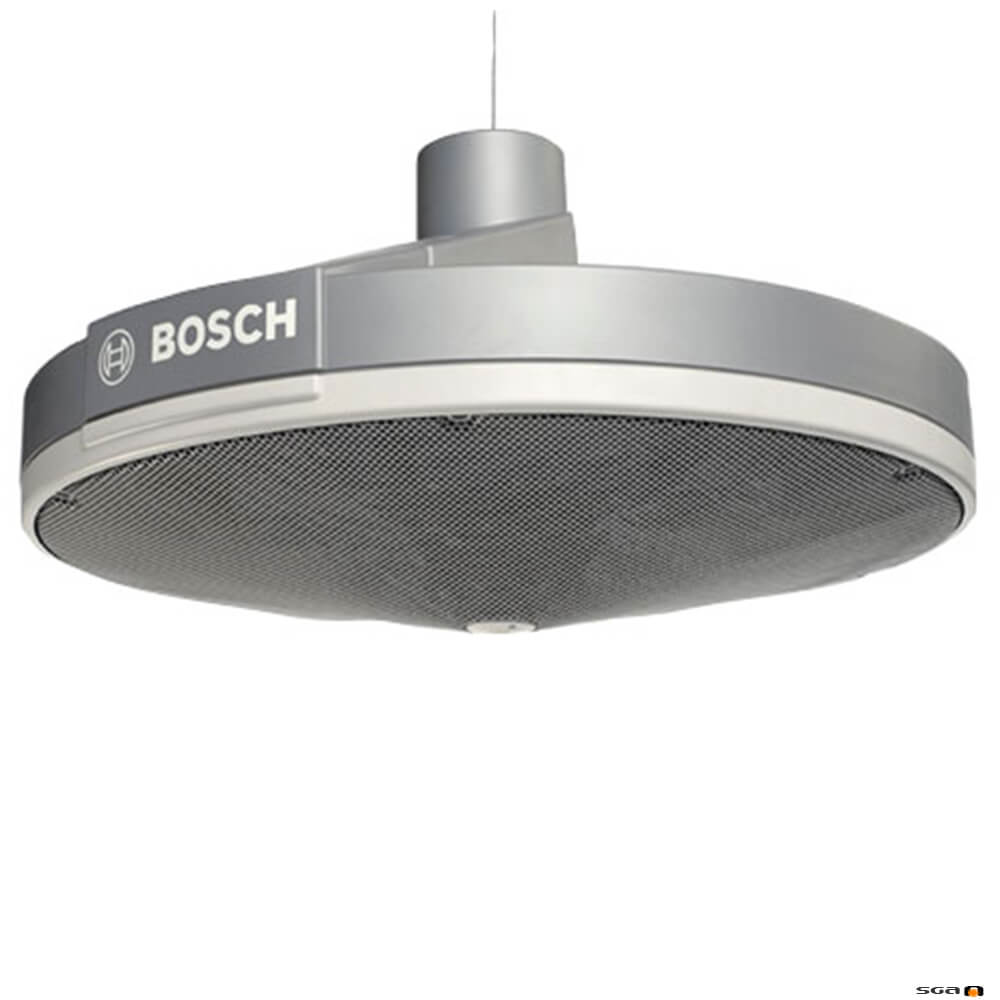

Bosch LS1-OC100E1 Hemi-directional loudspeaker - 8 Ohm or 100V line with taps at 100, 50 & 25W. Maximum 600m squared floor coverage.
Regular price
$5,591.00
Regular price
$5,989.50
Sale price
$5,591.00
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$5,591.00
Regular price
$5,989.50
Sale price
$5,591.00
Bosch LS1-OC100E1 Hemi-directional loudspeaker is an easy to install, innovative loudspeaker which projects consistent and high quality sound, ensuring superb reproduction of background music and high speech intelligibility for paging or emergency calls. The speaker?s opening angle and high sound pressure level allows it to cover at least 600 m2, making it extremely suitable for indoor high-ceiling areas like warehouses, transport and exhibition halls, mega stores and swimming pools.
The Bosch LS1?OC100E1 is used in voice alarm systems and is compliant with EVAC standards. The loudspeaker has built-in protection to ensure that a fire-damaged loudspeaker does not cause failure of the connected circuit. This ensures system integrity, meaning loudspeakers in other areas can still be used to inform people of the fire. The loudspeaker has ceramic terminal blocks, a thermal fuse and heat-resistant, high-temperature wiring.
The loudspeaker is made of high-impact ABS TSG, selfextinguishing according to class UL 94 V 0 and with?the highest flame retardant rating (UL 94 5VA). The?loudspeaker has a white and silver finish; the metal?grille has a silver finish.
This acoustically innovative loudspeaker?accommodates 14 drivers in combination with?advanced positioning and filtering.
The Bosch LS1?OC100E1 is used in voice alarm systems and is compliant with EVAC standards. The loudspeaker has built-in protection to ensure that a fire-damaged loudspeaker does not cause failure of the connected circuit. This ensures system integrity, meaning loudspeakers in other areas can still be used to inform people of the fire. The loudspeaker has ceramic terminal blocks, a thermal fuse and heat-resistant, high-temperature wiring.
The loudspeaker is made of high-impact ABS TSG, selfextinguishing according to class UL 94 V 0 and with?the highest flame retardant rating (UL 94 5VA). The?loudspeaker has a white and silver finish; the metal?grille has a silver finish.
This acoustically innovative loudspeaker?accommodates 14 drivers in combination with?advanced positioning and filtering.
- For large area, high-ceiling applications
- Optional bracket for fixed mounting
- Self‑restoring tweeter overload protection
- Provision for internal mounting of the optional line/loudspeaker supervision board
- EN 54-24 certified
-
Rated power 100 W (100 - 50 - 25 W) Sound pressure level at 100 W / 1 W (1 kHz, 1 m) 110 / 90 dB Sound pressure level at 100 W / 1 W (1 kHz, 4 m) 98 / 77 dB Opening angle at 1 kHz / 4 kHz (‑6 dB) 175º / 96º (horizontal)180º / 137º (vertical) Effective frequency range (‑10 dB) 60 Hz to 20 kHz Rated input voltageRated impedance 28.3 V, 70 V, 100 V 100 W 8 Ohm, 50 Ohm, 100 Ohm 50 W N.A., 100 Ohm, 200 Ohm 25 W N.A., 200 Ohm, 400 Ohm Connector Ceramic screw terminal Dimensions (dia. x H) 800 x 425 mm (31.50 x 16.74 in) Weight 27 kg (59.52 lb) Color baffle White (RAL 9010) Color top cover Pearl dark gray (RAL 9023) Color grille White aluminum (RAL 9006) Material ABS TSG Dimensions (H x W x D) 150 x 100 x 150 mm (5.90 x 3.94 x 5.90 in) Weight 2.9 kg (6.39 lb) Color Pearl dark gray (RAL 9023) Material Zinc plated steel
Bosch-LS1-OC100E1-datasheet
