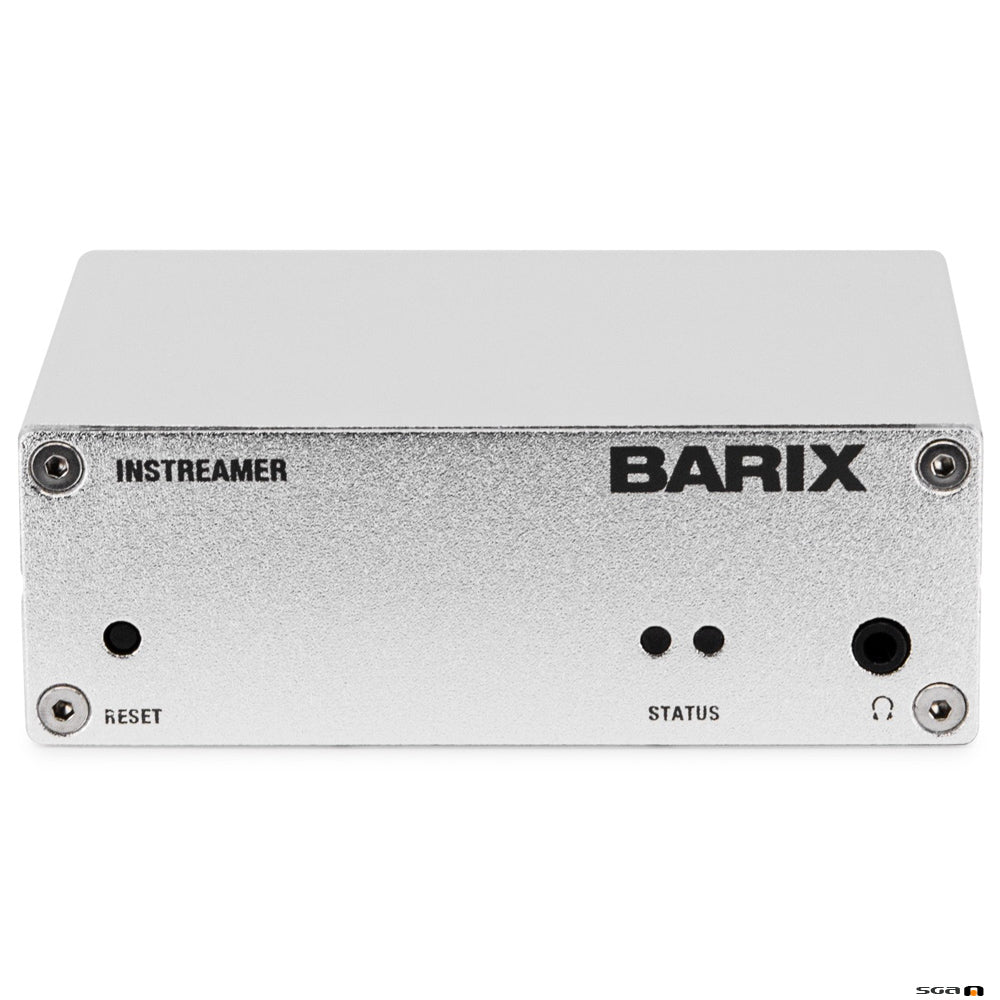

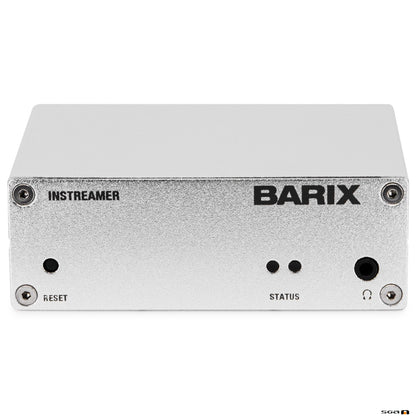

Barix Instreamer
Barix Instreamer network audio encoder - Multiprotocol Audio over IP encoder with line level analog input (stereo), serial port, low latency, PCM G.711, G.722 and MP3 encoding.
Regular price
$1,026.00
Regular price
$1,080.00
Sale price
$1,026.00
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$1,026.00
Regular price
$1,080.00
Sale price
$1,026.00
The Barix Instreamer makes the streaming of audio over IP networks smooth and easy. It encodes any incoming audio signal into a high-quality stream and can send the stream to up to 32 different destinations across the LAN or over the internet.
Instreamers support unicast, broadcast or multicast streaming along with peer-to-peer connections with other Barix devices.
It can also be used for integration into wide audio infrastructures with Shoutcast,Icecast or an other third party software. Simple web and command interfaces make the Barix Instreamer firmware configurable and the audio stream can be adjusted to the network bandwidth.
The Barix Instreamer is an easy-to-install and cost-effective solution for professional audio streaming.
APPLICATIONS
Instreamers support unicast, broadcast or multicast streaming along with peer-to-peer connections with other Barix devices.
It can also be used for integration into wide audio infrastructures with Shoutcast,Icecast or an other third party software. Simple web and command interfaces make the Barix Instreamer firmware configurable and the audio stream can be adjusted to the network bandwidth.
The Barix Instreamer is an easy-to-install and cost-effective solution for professional audio streaming.
APPLICATIONS
- Live IP Audio Encoder for Streaming Applications
- Source Encoder for IP Audio Distribution Applications
- Background Music and Music-on-Hold encoder for VoIP Applications
- Shoutcast/Icecast Source Encoder
- Low latency IP Audio Encoder for multichannel applications
- Confidence Monitoring and Vox Switch for Broadcast Applications FEATURES
- G.711, G.722, PCM linear Encoding
- MP3 Encoding (low Latency)
- Shoutcast/Icecast Source capability
- Audio Level Supervision with SNMP Trap generation
- IP Streaming via TCP, UDP, RTP, Multicast
- Line Level Input (Stereo) ? RS-232 Serial Port
- Power Supply (micro USB)
- Designed in Switzerland and installed in thousands of locations, the Barix Instreamer is the device of choice for Broadcasters, Telco Providers, Entertainment venues and Surveillance projects alike.
- MP3, G.711, G.722, PCM Encoding
- IP Streaming via TCP, UDP, RTP, Multicast
- Shoutcast/Icecast Source capability
- Audio Level Supervision with SNMP Trap generation
- Line Level Input (Stereo)
Electrical
• 5V, max. 1A through Mini-USB connector
• External power adaptor, 100-240VAC, 5W, included

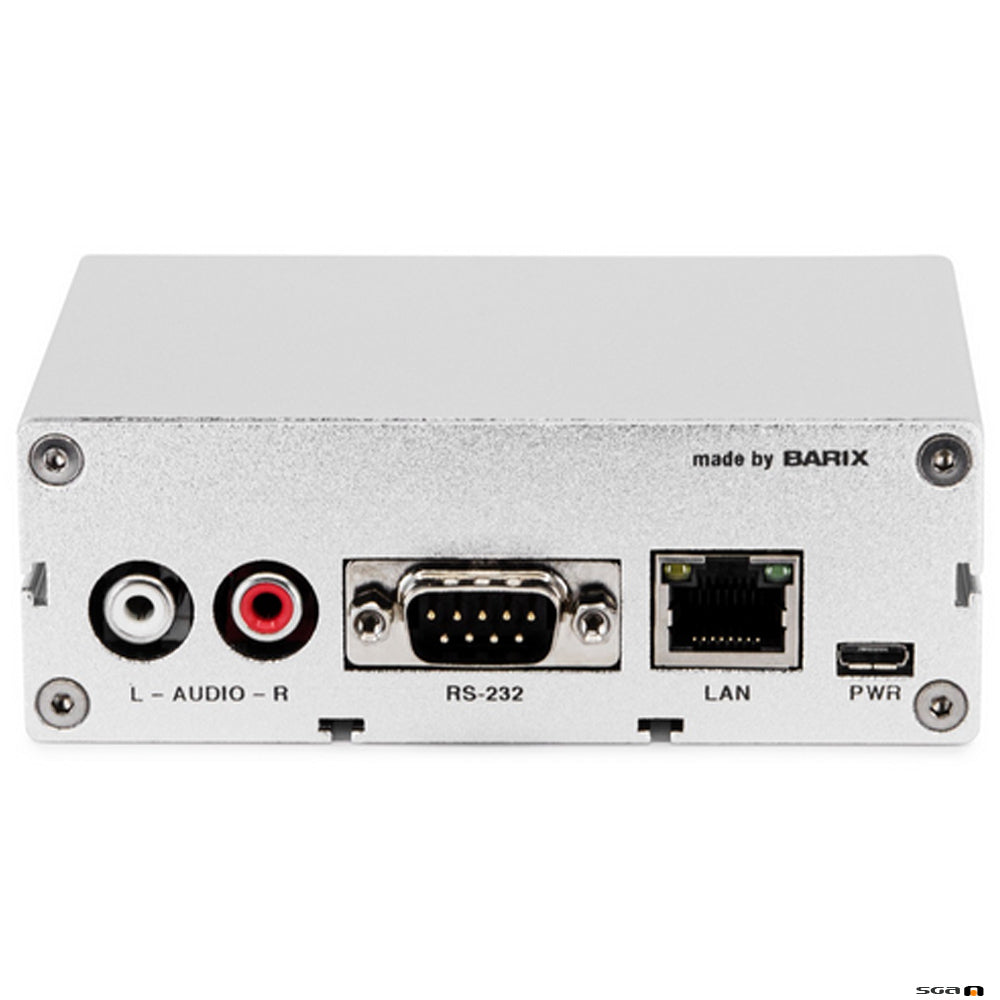

Ethernet
• RJ45, 10/100Mbps auto, Link & Activity LEDs
• Protocols: TCP/IP, UDP, RTP, DHCP, SNMP, SIP
• AutoIP, SonicIP, IPZator to ease address assignment
RS-232
• 300..230‘400 Baud asynchronous, 7/8 bit
• DSub 9 pin male
• serial tunnel, control and metadata input support
Audio Input
• RCA connectors, unbalanced, 2 kOhm impedance
• Clipping level 5.3 dBu, 4 Vpp
• Frequency response (-3dB) 20..20‘000 Hz *
• Signal to Noise Ratio 89dB, THD <0.03%
• Stereo crosstalk -89dB
• Input signal attenuable by software setting
(-3..+19.5dB)
Headphone Output
• 3.5mm jack
• volume adjustable via browser
• announcement of IP address (SonicIP)
• general purpose audio output, depending on used
codec
Audio formats
• MP3, encoding/decoding up to 192/320kbps
• VBR and CBR support
• PCM 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
• G.711, uLaw, aLaw (sample rates same as PCM)
Mechanical
• Aluminum case, 225g, separate mounting bracket
• available 4.25” x 1.5” x 3.1” (108mm x 38mm x 78.7 mm)
Software Environment
• Proprietary multitasking OS
• Application firmware packages available from Barix
• Development Environment for custom functionality
• (ABCL development kit) available free of charge
MTBF
• (calculated according to MIL217F at 25°C)
min. 540 000h
* depends on used codec, best results @48kHz PCM
• 5V, max. 1A through Mini-USB connector
• External power adaptor, 100-240VAC, 5W, included
Ethernet
• RJ45, 10/100Mbps auto, Link & Activity LEDs
• Protocols: TCP/IP, UDP, RTP, DHCP, SNMP, SIP
• AutoIP, SonicIP, IPZator to ease address assignment
RS-232
• 300..230‘400 Baud asynchronous, 7/8 bit
• DSub 9 pin male
• serial tunnel, control and metadata input support
Audio Input
• RCA connectors, unbalanced, 2 kOhm impedance
• Clipping level 5.3 dBu, 4 Vpp
• Frequency response (-3dB) 20..20‘000 Hz *
• Signal to Noise Ratio 89dB, THD <0.03%
• Stereo crosstalk -89dB
• Input signal attenuable by software setting
(-3..+19.5dB)
Headphone Output
• 3.5mm jack
• volume adjustable via browser
• announcement of IP address (SonicIP)
• general purpose audio output, depending on used
codec
Audio formats
• MP3, encoding/decoding up to 192/320kbps
• VBR and CBR support
• PCM 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
• G.711, uLaw, aLaw (sample rates same as PCM)
Mechanical
• Aluminum case, 225g, separate mounting bracket
• available 4.25” x 1.5” x 3.1” (108mm x 38mm x 78.7 mm)
Software Environment
• Proprietary multitasking OS
• Application firmware packages available from Barix
• Development Environment for custom functionality
• (ABCL development kit) available free of charge
MTBF
• (calculated according to MIL217F at 25°C)
min. 540 000h
* depends on used codec, best results @48kHz PCM
