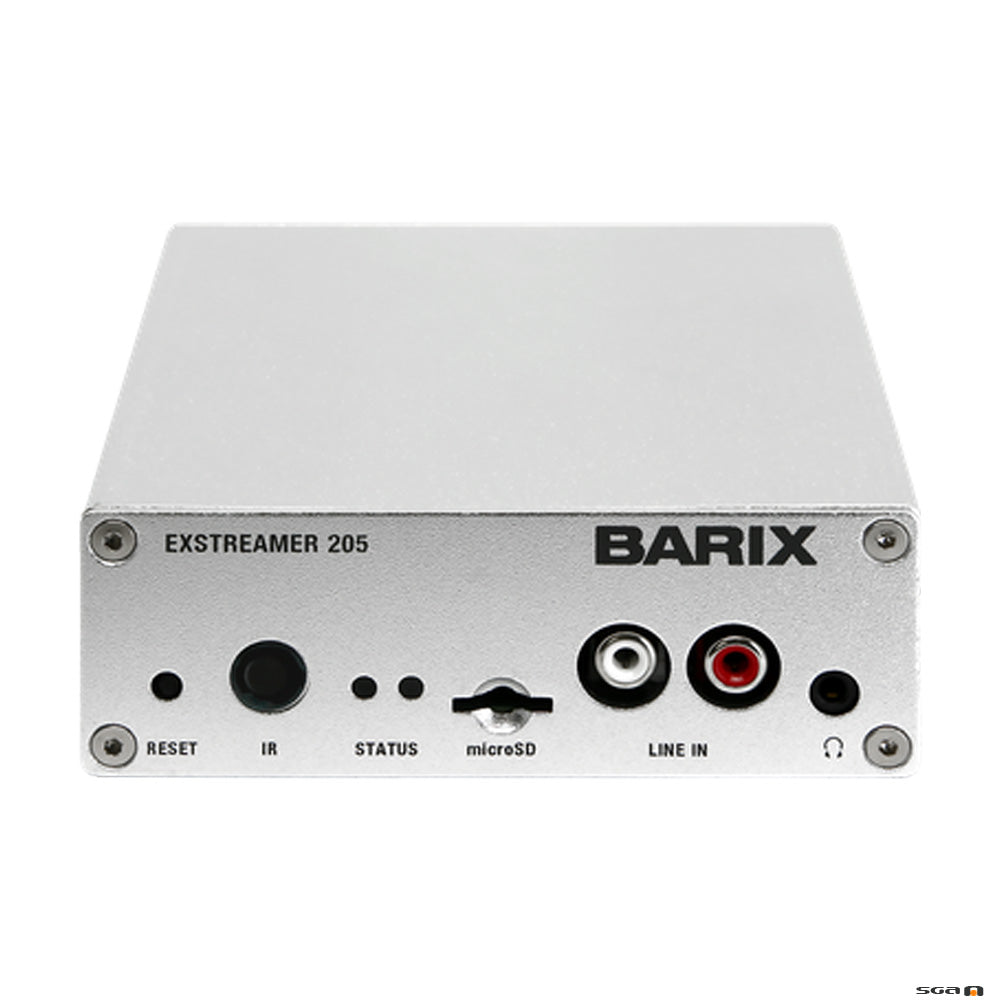

Barix Exstreamer 205
Barix Exstreamer 205, network audio decoder with 2x 25 Watt output and local input
Regular price
$1,040.25
Regular price
$1,095.00
Sale price
$1,040.25
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$1,040.25
Regular price
$1,095.00
Sale price
$1,040.25
The Barix Exstreamer 205 device decode IP Audio streams and play out the received Audio signal via a built-in amplifier to 8 Ohm speakers. Supporting a large number of protocols, encoding methods and application specific firmware, the products can be used for Broadcast, Internet Radio as well as VoIP applications. With a local analog input, the Exstreamer 205 can also be used as an IP controlled, high quality amplifier.
APPLICATIONS
- Instore Audio Player
- Multiroom IP Audio System Receiver
- Internet Radio Receiver
- Generic VoIP decoder for IP Paging and Announcement applications
- Commercial Audio Streaming Applications
- SIP and IP Paging Zone Device
- Digital Annunciator,
- Message Player,
- Message Repeater
- G.711, uLaw, aLaw, PCM Encoding
- AACplus, MP3, Ogg Vorbis, G.711, PCM linear Decoding
- IP Streaming via TCP, UDP, RTP, Multicast
- Amplified Output 2x25W (8 Ohm)
- RS-232 Serial Port
- Power Supply (24V, included)
- MicroSD or USB Flash Interface
- IR Interface
Electrical
24 VDC, 70 Watt max. on 2.1mm barrel connector
24 VDC Power supply (100-240 VAC) included
Ethernet
10/100Mbps auto,
RJ-45 connector with integrated Link/Activity LED
Protocols: TCP/IP, UDP, RTP, SIP, DHCP,
Analog Output
2 x 25 W (RMS @ 8 Ohm) speaker outputs,
3.5 mm (1/8 inch) headphone jack,
S/P DIF out (optical),
Output level software controllable
Frequency response (-3 dB) 19 Hz .. 20 kHz *
Dynamic range 94 dB
SNR/THD -94 dB, <0.05%)
Audio formats
MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
AAC-HE (AAC, AAC plus, AAC plus V2)
WMA (up to version 9),
Ogg Vorbis
PCM linear 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
G.711, uLaw, aLaw (sample rates same as PCM)
RS-232 Interface
300..230‘400 Baud asynchronous,
for serial tunneling or local control,
12 VDC supply output for external devices
(100 mA max.)
IR Interface
Built-in IR receiver, IR remote control included,
Optional external IR receiver via serial port (IR Kit)
Mechanical
Aluminum case, 460g
rack and wall mountable using accessories
Dimensions (W x H x D)
108 x 38 x 125 mm (4.25 x 1.5 x 4.92 inch)
Model comparison
Model 200 Speaker output 2 x 25 Watt on 8 Ohm, Memory USB
Model 205 Speaker output 2 x 25 Watt on 8 Ohm, Memory MicroSD, Line in
MTBF
According MIL217F at 25°C
Exstreamer 200 min. 460 000h
Exstreamer 205 min. 410 000h
* depends on used codec, best results @48kHz PC
24 VDC, 70 Watt max. on 2.1mm barrel connector
24 VDC Power supply (100-240 VAC) included
Ethernet
10/100Mbps auto,
RJ-45 connector with integrated Link/Activity LED
Protocols: TCP/IP, UDP, RTP, SIP, DHCP,
Analog Output
2 x 25 W (RMS @ 8 Ohm) speaker outputs,
3.5 mm (1/8 inch) headphone jack,
S/P DIF out (optical),
Output level software controllable
Frequency response (-3 dB) 19 Hz .. 20 kHz *
Dynamic range 94 dB
SNR/THD -94 dB, <0.05%)
Audio formats
MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
AAC-HE (AAC, AAC plus, AAC plus V2)
WMA (up to version 9),
Ogg Vorbis
PCM linear 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
G.711, uLaw, aLaw (sample rates same as PCM)
RS-232 Interface
300..230‘400 Baud asynchronous,
for serial tunneling or local control,
12 VDC supply output for external devices
(100 mA max.)
IR Interface
Built-in IR receiver, IR remote control included,
Optional external IR receiver via serial port (IR Kit)
Mechanical
Aluminum case, 460g
rack and wall mountable using accessories
Dimensions (W x H x D)
108 x 38 x 125 mm (4.25 x 1.5 x 4.92 inch)
Model comparison
Model 200 Speaker output 2 x 25 Watt on 8 Ohm, Memory USB
Model 205 Speaker output 2 x 25 Watt on 8 Ohm, Memory MicroSD, Line in
MTBF
According MIL217F at 25°C
Exstreamer 200 min. 460 000h
Exstreamer 205 min. 410 000h
* depends on used codec, best results @48kHz PC
