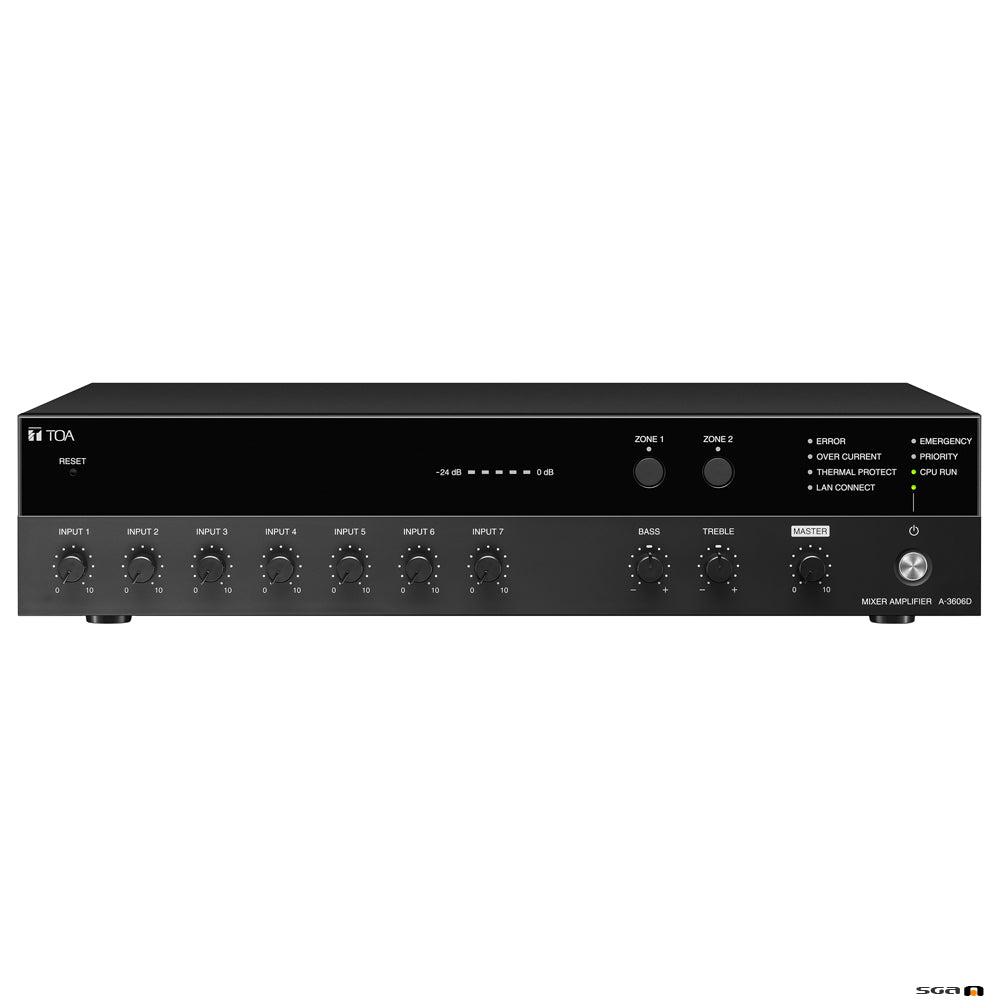

TOA A3606D
TOA A3606D 60W 2 zone digital mixer amp, 7 input, selectable phantom power, 100 volt line / 8-16 ohm.
Regular price
$1,385.10
Regular price
$1,539.00
Sale price
$1,385.10
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$1,385.10
Regular price
$1,539.00
Sale price
$1,385.10
TOA A3606D is one of TOA's 3600D series PA amplifiers. Equipped with 4 microphone inputs, 3 auxiliary inputs and a 2-channel zone selector. Featuring Volume control function, Priority function, Chime function and Remote confirmation function. TOA A3606D is equipped with a 2-channel input BUS of BUS 1 and BUS 2, and the signal processing function.
The A-3600D series is ideal for paging announcement and BGM applications in schools, offices and supermarkets.
A-3600D Series Digital Mixer Amplifier provides maximum flexibility with up to seven inputs. Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems.
Feedback suppressor, input priorities, sleek new appearance, and TOA's legendary quality and reliability make this a perfect fit for many applications. Ideal for background and foreground music, paging, and noise masking applications.
The models available in the 3600D series are: A3606D (60W), A3612D (120W), A3624D (240W) and A3648D (480W).
Web browser Interface allows you to connect the A3600D digital mixer amplifier to a network to access the on-board browser interface. Static or dynamic host configuration protocol address assignment may be used.
The A-3600D series is ideal for paging announcement and BGM applications in schools, offices and supermarkets.
A-3600D Series Digital Mixer Amplifier provides maximum flexibility with up to seven inputs. Browser based control and monitoring from anywhere reduces your time troubleshooting and adjusting systems.
Feedback suppressor, input priorities, sleek new appearance, and TOA's legendary quality and reliability make this a perfect fit for many applications. Ideal for background and foreground music, paging, and noise masking applications.
The models available in the 3600D series are: A3606D (60W), A3612D (120W), A3624D (240W) and A3648D (480W).
Web browser Interface allows you to connect the A3600D digital mixer amplifier to a network to access the on-board browser interface. Static or dynamic host configuration protocol address assignment may be used.
- TOA class D amplifiers for maximum efficiency.
- Feedback Suppressor (Dynamic feedback filters).
- Speaker EQ (3 points equalizer).
- Assignable input priorities.
- Built-in pre-announce chime.
- IP protocol available
| MODEL | POWER OUTPUT |
| A3606D | 60W output power, high or low Z |
| A3612D | 120W output power, high or low Z |
| A3624D | 240W output power, high or low Z |
| A3648D | 480W output power, high or low Z |
| Power Source | 100 - 240 V AC, 50/60Hz |
|---|---|
| Rated Output | 60 W |
| Power/Current Consumption | 96 W (Rated output), 40 W (based on EN62368), 200 mA or less (when power switch is OFF) |
| Frequency Response | 50 Hz - 20 kHz ±3 dB (1/8 rated output) |
| Distortion | 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025)) |
| Tone Control | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
| S/N Ratio | 88 dB or more (Master volume: min.) 76 dB or more (Master volume: max.) 55 dB or more (INPUT 1 - 6) 72 dB or more (INPUT 7) (A-weighted) |
| Audio Input | INPUT 1, 2: -60 dB(*1)(MIC) / -20 dB (*1) (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3 pins) Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable) INPUT 3, 4: -60 dB(*1), 600 Ω, electronically-balanced, removable terminal block (3 pins) Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable) INPUT 5, 6: MIC (BUS 1) / LINE (BUS 2) selectable MIC : -60 dB(*1), 600 Ω, electronically-balanced, removable terminal block (3 pins) LINE: -20 dB (*1), 10 kΩ, unbalanced, RCA pin jack x 2 INPUT 7: -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack x 2 PWR AMP IN: 0 dB (*1), 600 Ω, unbalanced, RCA pin jack |
| Input Bus | INPUT 1 - 4: BUS 1 INPUT 5 - 6: BUS 1/BUS 2 selectable INPUT 7: BUS 2 |
| Audio Output | Speaker out: Low impedance (8 - 16 Ω) / High impedance (DIRECT, ZONE 1, ZONE 2: 100 V / total 170 Ω), removable terminal block (6 pins) (ZONE 1 / ZONE 2 is selectable, max. 60 W per output) Rec out: 0 dB(*1), 600 Ω, unbalanced, RCA pin jack Line out 1, 2: 0 dB (*1) , 600 Ω, unbalanced, RCA pin jack (Interlock with zone selection is possible) |
| Control Input | 4 channels. no-voltage make contact input, open voltage: 35 V DC or less, Short circuit current: 10 mA or less, removable terminal block (4 pins) REMOTE VOLUME: Removable terminal block (4 pins) ZONE CONTROL IN: No-voltage make contact input, even voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (4 pins) |
| Control Output | POWER REMOTE OUT: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins) EMERGENCY OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins) ZONE CONROL OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins) |
| Chime | 1-note, 2-note, or ascending, 4-note chime, or None selectable with switch setting |
| Indicator | 5-point LED output level meter, Power LED, LAN connect LED, Priority LED, Emergency LED, Thermal protection LED, Over current protection indicator LED, CPU RUN LED, Error LED, Zone 1 LED, Zone 2 LED |
| Operating Temperature | -10°C to +40°C |
| Operating Humidity | 85 %RH or less (no condensation) |
| Finish | Panel: ABS resin, black Case: Surface-treated steel plate, black, paint |
| Dimensions | 420 (W) × 96.1 (H) × 313.1 (D) mm |
| Weight | 5 kg |
| Accessory | Power Cord (2 m) x 1, Audio Input Removavble Terminal Plug (3.81 mm, 3 pins) x 6, Control I/O Removable Terminal Plug (3.81 mm, 4 pins) x 4, Remote Control Removable Terminal Plug (3.5 mm, 4 pins) x 2, Speaker Out Removable Terminal Plug (5 mm, 6 pins) x 1, Volume Control Cover x 4 |
| Option | Rack mounting bracket: MB-25B Perforated panel: PF-013B |
