TOA VM3240VA
TOA VM3240VA is a 100V line 240 Watt Six Zone Paging Amplifier. (Special Order/ Indent Item)
Regular price
$4,499.10
Regular price
$4,999.00
Sale price
$4,499.10
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$4,499.10
Regular price
$4,999.00
Sale price
$4,499.10

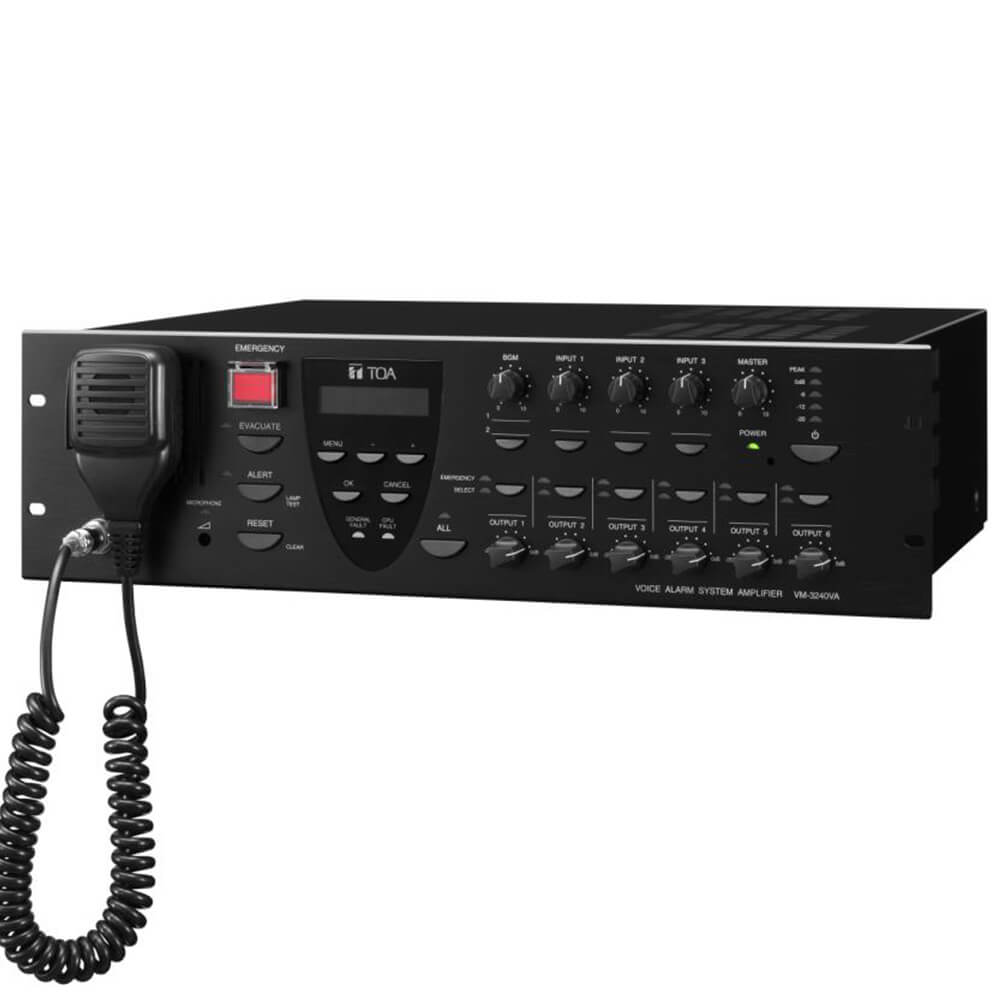

The TOA VM3240VA is a zone paging amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size).
TOA VM3240VA zone paging amplifier comes with audio inputs including the background music input, and the speaker output section which has an internal attenuator and 6-output selector. It permits not only general-purpose broadcast, but also Emergency broadcast based on the EN60849 Standard which gives pre-recorded voice instructions in the emergency situation.
Emergency broadcast can be made from an optional RM300MF Fireman's Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, the unit features the surveillance function which automatically checks the system for failures.
Optional Microphone Accessories include: Emergency remote microphones RM-300MF / RM-320F.
Remote Microphones RM-200M / RM-210.
Continuously TOA brings the knowledge gained from years of experience in the development and production of sound and security
systems, which is reflected in the high reliability of many installations worldwide.
The VM-3000 series is a cost-effective integrated public address and voice alarm system engineered with powerful digital signal processor (DSP). It is designed to fulfil the EN 54 European regulation for voice alarm as well as the UL 2572 and CAN/ULC-S576 certification, which complies with new NFPA 72 code governing Mass Notification Systems.
So the VM-3000 series not only ensures voice alarm in an emergency but also high quality audio broadcasting. The compact design enables the system to fit best in various small to medium sized applications such as schools, shopping centres or restaurants.
(Special Order/ Indent Item)
TOA VM3240VA zone paging amplifier comes with audio inputs including the background music input, and the speaker output section which has an internal attenuator and 6-output selector. It permits not only general-purpose broadcast, but also Emergency broadcast based on the EN60849 Standard which gives pre-recorded voice instructions in the emergency situation.
Emergency broadcast can be made from an optional RM300MF Fireman's Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, the unit features the surveillance function which automatically checks the system for failures.
Optional Microphone Accessories include: Emergency remote microphones RM-300MF / RM-320F.
Remote Microphones RM-200M / RM-210.
Continuously TOA brings the knowledge gained from years of experience in the development and production of sound and security
systems, which is reflected in the high reliability of many installations worldwide.
The VM-3000 series is a cost-effective integrated public address and voice alarm system engineered with powerful digital signal processor (DSP). It is designed to fulfil the EN 54 European regulation for voice alarm as well as the UL 2572 and CAN/ULC-S576 certification, which complies with new NFPA 72 code governing Mass Notification Systems.
So the VM-3000 series not only ensures voice alarm in an emergency but also high quality audio broadcasting. The compact design enables the system to fit best in various small to medium sized applications such as schools, shopping centres or restaurants.
(Special Order/ Indent Item)
- 1 unit per system
- 2 models available: 240 W or 360 W power output
- 6 recorded general announcements and 2 recorded emergency announcements
- 8 remote microphones max. (up to 4 emergency remote microphones)
- 6 zones selectable from the front panel
- Built-in high quality electronic voice message
| Power Source | 230 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 600 W (with rated output signal), 260 W (according to EN60065) |
| Rated Output | 240 W |
| Frequency Response | 50 Hz - 20 kHz, ±3 dB (at 1/3 rated output) |
| Distortion | 0.7 % or less (at rated output, 1 kHz) |
| S/N Ratio | 85 dB or more |
| Audio Input/Output Characteristic | Sampling frequency: 48 kHz A/D D/A converter: 24 bit |
| Input | Input 1 - 3: -50 dB* (MIC)/-10 dB* (LINE) (changeable), 600 Ω, electronically balanced, combined XLR connector (female)/phone jack Input 4: -50 dB* (MIC)/-10 dB* (LINE) (changeable), 600 Ω, electronically balanced, removable terminal block (14 pins) BGM 1 - 2: -10 dB*, 10 kΩ, unbalanced, RCA pin jack External amplifier input: 100 V line, removable terminal block (14 pins) |
| Output | Speaker output 1 - 2: Max. (240 W) per output Speaker output 3 - 6: Max. (120 W) per output Speaker output 1 - 6: Total within 240 W, removable terminal block (14 pins) Allowable minimum load: 500 Ω (20 W) at 100 V line for speaker line failure detection Direct output: Direct output from internal or external amplifier, removable terminal block (16 pins) Recording output BGM/Paging: 0 dB*, 10 kΩ, unbalanced, RCA pin jack |
| RM Link | Input 1 - 2: Connecting the RM-300MF/RM-200M Remote Microphone. RJ45 female connector Maximum distance: Total 800 m (874.89 yd) between this unit and remote microphones Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| Network I/F | 10BASE-T / 100BASE-TX (selectable by automatic negotiation), RJ45 female connector Maximum distance: 100 m (109.36 yd) between this unit and a switching hub Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| VM Link | Output: Connecting the VM-3240E or VM-3360E, RJ45 female connector Maximum distance: 800 m (874.89 yd) Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| EXT PA Link | Connecting the VP-2241 or VP-2421, RJ45 female connector Maximum distance: 5 m (16.4 ft) Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| General Control | Input 1 - 8: No-Voltage make contact input, open voltage: 24 V DC, short-circuit current: 2 mA or less, removable terminal block (14 pins) Output 1 - 8: Isolated open collector output, withstand voltage: 30 V DC, operating current: 10 mA or less, removable terminal block (14 pins) |
| Emergency Control | Input 1 - 5: No-Voltage make contact input, open voltage: 24 V DC, short-circuit current: 2 mA or less, RJ45 female connector Input 6: Isolated voltage input, Inactive: -24 V ±20 %, Active: +24 V ±20 %, RJ45 female connector Status out: Relay contact output, withstand voltage: 40 V DC, operating current: 2 - 300 mA, RJ45 female connector |
| ATT Control | Relay contact 1-6, 125 V AC or 30 V DC, total under 5 A, removable terminal block (16 pins) |
| Power Input/Output | Power in: Connecting the VX-2000DS only (operating range: 20 - 40 V DC) PS out: 28 V DC/18 A M4 screw terminal, distance between barriers: 11 mm (0.43") |
| DC24V Output | 24 V DC, Maximum feeding current 0.3 A |
| Ds Link | Connecting the VX-2000DS, RJ45 female connector Maximum distance: 5 m (16.4 ft) Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP) |
| Operating Temperature | -5 ℃ to +45 ℃ (23 ゜F to 113 ゜F) |
| Operating Humidity | 5 % to 95 %RH (no condensation) |
| Finish | Panel: Aluminum, hairline, black Case: Surface-treated steel plate, black, paint |
| Dimensions | 482 (W) × 132.6 (H) × 431.2 (D) mm (18.98" × 5.22" × 16.98") |
| Weight | 16.5 kg (36.38 lb) |
| Accessory | Power cable (2 m (6.56 ft)) …1, Setting software-CD …1, Link cable (3 m (9.84 ft)) …2, Plastic foot …4, Plastic foot mounting screw …4, Removable terminal plug (14 pins)…3, Removable terminal plug (16 pins) …1, Emergency microphone (hand-held type) …1 |
| Option | Input transformer: IT-450 |
