TOA TC631M
30W Reflex Horn Speaker 500mm (IP65), 200Hz-6kHz, 110db SPL @ 1W/1m, 100V
Regular price
$260.10
Regular price
$289.00
Sale price
$260.10
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$260.10
Regular price
$289.00
Sale price
$260.10

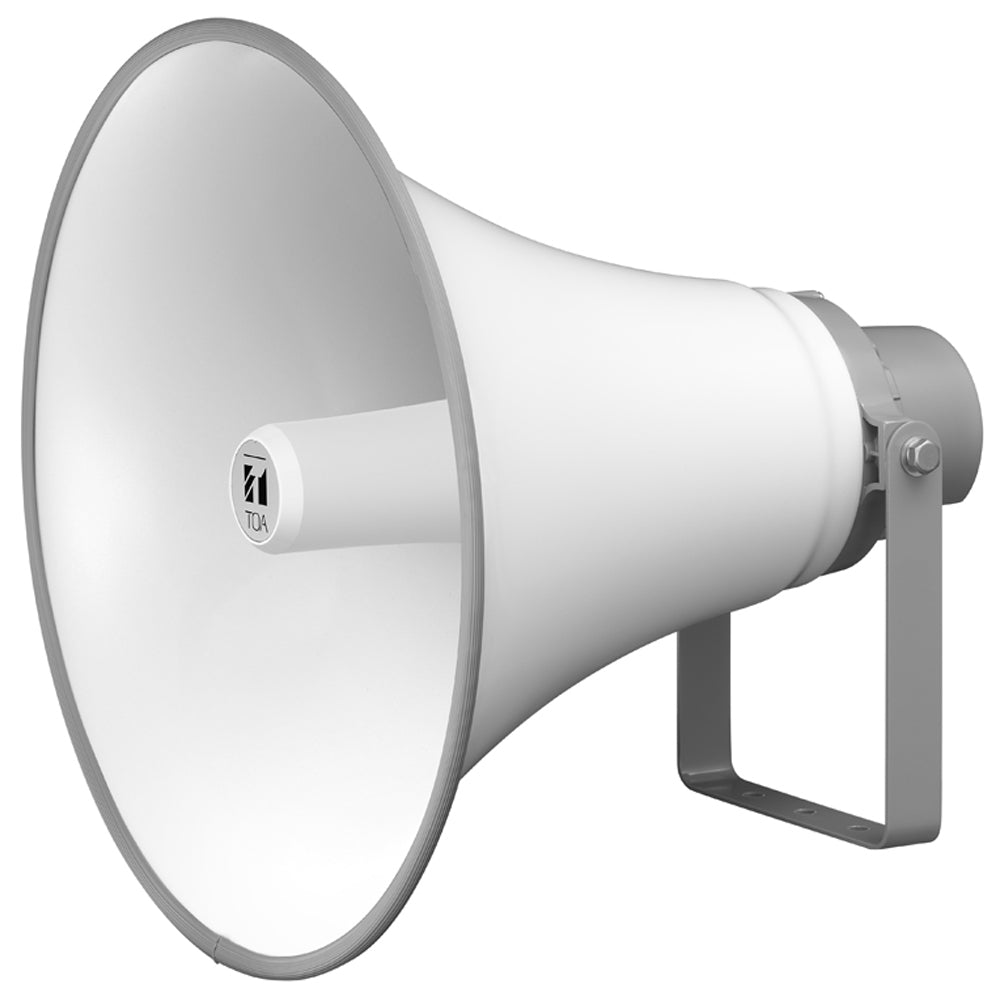

The TOA TC631M horn speaker is a highly intelligible, general-purpose speaker suited to public address announcement applications.
The TOA TC631M reflex horn speakers are designed for both indoor and outdoor paging applications as well as for background music reproduction. Its external speaker component are finished with powder coating. Stainless steel bracket and screws ensure the unit's weatherproof and corrosion resistance capability. The horn flare is made of aluminum which is more shock resistant than resin.
The TC series "M" type models are available in 15W (TC615M) and 30W (TC631M) high impedance 70V/100V line.
TC Series speakers feature newly developed diaphragms employing special heat-resistant fibers impregnated with phenolic resin to prevent the diaphragm from absorbing moisture and changing shape. High speaker efficiency has also been realized by minimizing the gap produced when the diaphragm bobbin is installed in the magnetic circuitry slit. The aluminum foil bobbin also features excellent heat dissipation properties to resist high power inputs and ensure high speaker durability.
High-impedance models are equipped with an input impedance selector switch which facilitates the ease of impedance settings. The switch is also equipped with an OFF position to prevent speaker damage resulting from incorrect impedance setting.
The unique oval shape enhances excellent speech clarity making the TOA TC631M horn speaker an excellent choice for most applications.
The TOA TC631M reflex horn speakers are designed for both indoor and outdoor paging applications as well as for background music reproduction. Its external speaker component are finished with powder coating. Stainless steel bracket and screws ensure the unit's weatherproof and corrosion resistance capability. The horn flare is made of aluminum which is more shock resistant than resin.
The TC series "M" type models are available in 15W (TC615M) and 30W (TC631M) high impedance 70V/100V line.
TC Series speakers feature newly developed diaphragms employing special heat-resistant fibers impregnated with phenolic resin to prevent the diaphragm from absorbing moisture and changing shape. High speaker efficiency has also been realized by minimizing the gap produced when the diaphragm bobbin is installed in the magnetic circuitry slit. The aluminum foil bobbin also features excellent heat dissipation properties to resist high power inputs and ensure high speaker durability.
High-impedance models are equipped with an input impedance selector switch which facilitates the ease of impedance settings. The switch is also equipped with an OFF position to prevent speaker damage resulting from incorrect impedance setting.
The unique oval shape enhances excellent speech clarity making the TOA TC631M horn speaker an excellent choice for most applications.
| Rated Input | 30 W |
|---|---|
| Line Voltage | 100 V line or 70 V line |
| Rated Impedance | 100 V line: 330 Ω (30 W), 670Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W) |
| Sensitivity | 110 dB (1 W, 1 m) |
| Frequency Response | 200 Hz - 6 kHz |
| Dust/Water Protection | IP65 |
| Polarity | Hot: Black, Com: White |
| Operating Temperature | -20 ℃ to +60 ℃ (-4 ゜F to 140 ゜F) (must be free from dew condensation) |
| Finish | Horn flare: Aluminum, off-white, powder coating Reflector horn: ABS resin, off-white Bracket holder: Aluminum, gray, powder coating Bracket: Steel, gray, powder coating Rear cover: ABS resin, gray Screw and bolts: Stainless steel Speaker Cable: Polyvinyl chloride insulated cabtyre cable (6 mm (0.24") in diameter, 600 mm (23.62") in length) |
| Dimensions | φ500 (W) × 463 (D) mm (φ19.69" × 18.23") |
| Weight | 4.5 kg (9.92 lb) |
