Bosch PLE-2CS
Bosch PLE-2CS 2-zone Paging Microphone for PLE-2MA120/240 and PLE-10M2. Allows operator to page into a single zone or both zones.
Regular price
$403.00
Regular price
$431.20
Sale price
$403.00
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$403.00
Regular price
$431.20
Sale price
$403.00

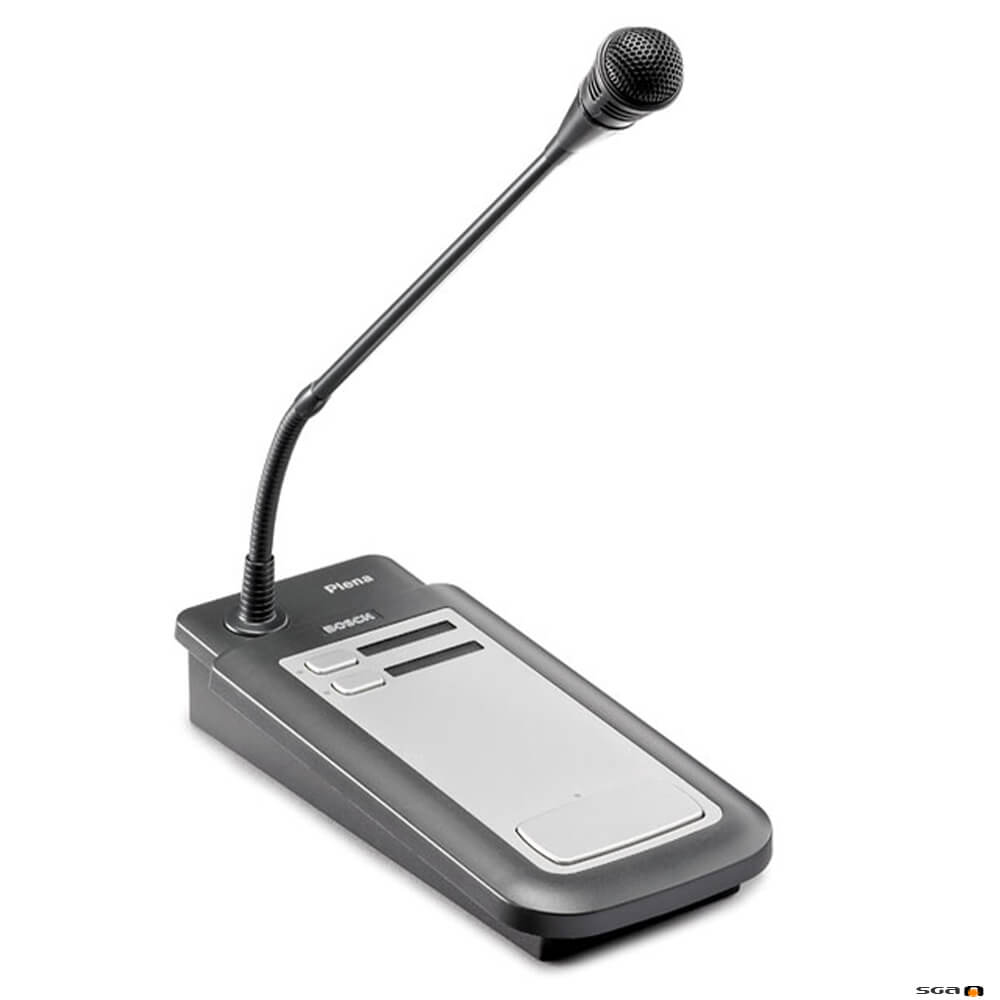

The Bosch PLE2CS paging microphone 2-zone call station is a modern, high-quality call station with a stable metal base design, a flexible microphone stem and a unidirectional condenser microphone. It can make calls to selected zones in a public address system built with the PLE series two-zone mixer and mixer amplifiers. In addition to tabletop use, the Plena design allows neat flush-mounting in desktops.
The call station has a balanced line level output, giving it a maximum range of 200 meters from the mixer, when using CAT-5 extension cables. With the loop-through RJ-45 connector, it is possible to daisy chain multiple call stations. The priority is automatic i.e. the call station nearest the mixer has priority and can override a call station further from the mixer. When a call is being made by a higher priority call station, a yellow light will display on the lower priority call stations.
Bosch PLE2CS Paging Microphone 2-zone for PLE-2MA120/240 and PLE-10M2. A
The call station has a balanced line level output, giving it a maximum range of 200 meters from the mixer, when using CAT-5 extension cables. With the loop-through RJ-45 connector, it is possible to daisy chain multiple call stations. The priority is automatic i.e. the call station nearest the mixer has priority and can override a call station further from the mixer. When a call is being made by a higher priority call station, a yellow light will display on the lower priority call stations.
Bosch PLE2CS Paging Microphone 2-zone for PLE-2MA120/240 and PLE-10M2. A
- Modern two-zone call station for the PLE series
- Selectable gain
- Speech filter and limiter
- Output level control
- Loop-through option for up to 8 call stations
- LED indications for zone selection, busy, and power on
| Voltage range | 24 VDC supplied by PLE mixer amplifier or mixer |
| Current consumption | <30 mA |
| Nominal sensitivity | 85 dB SPL (gain preset 0 dB) |
| Nominal output level | 700 mV |
| Input sound level (max) | 110 dB SPL |
| Gain preset | -15 / 0 / +6 dB |
| Limiter threshold | 2 V |
| Compression ratio limiter | 1:20 |
| Distortion | <0.6% (maximum input) |
| Input noise level (equiv.) | 25 dB SPLA |
| Frequency response | 100 Hz to 16 kHz |
| Speech filter | -3 dB at 315 Hz, high-pass, 6 dB/oct |
| Output impedance | 200 ohm |
| Chimes | 6 |
| Base dimensions (H x W x D)without microphone | 40 x 100 x 235 mm (1.57 x 3.97 x 9.25 in) |
| Stem length with microphone | 390 mm (15.35 in) |
| Cable length | 5 m (16.4 ft) |
| Weight | Approx. 1 kg (2.2 lb) |
| Mounting | Standalone |
| Color | Charcoal with silver |
Bosch-PLE-2CS-datasheet
