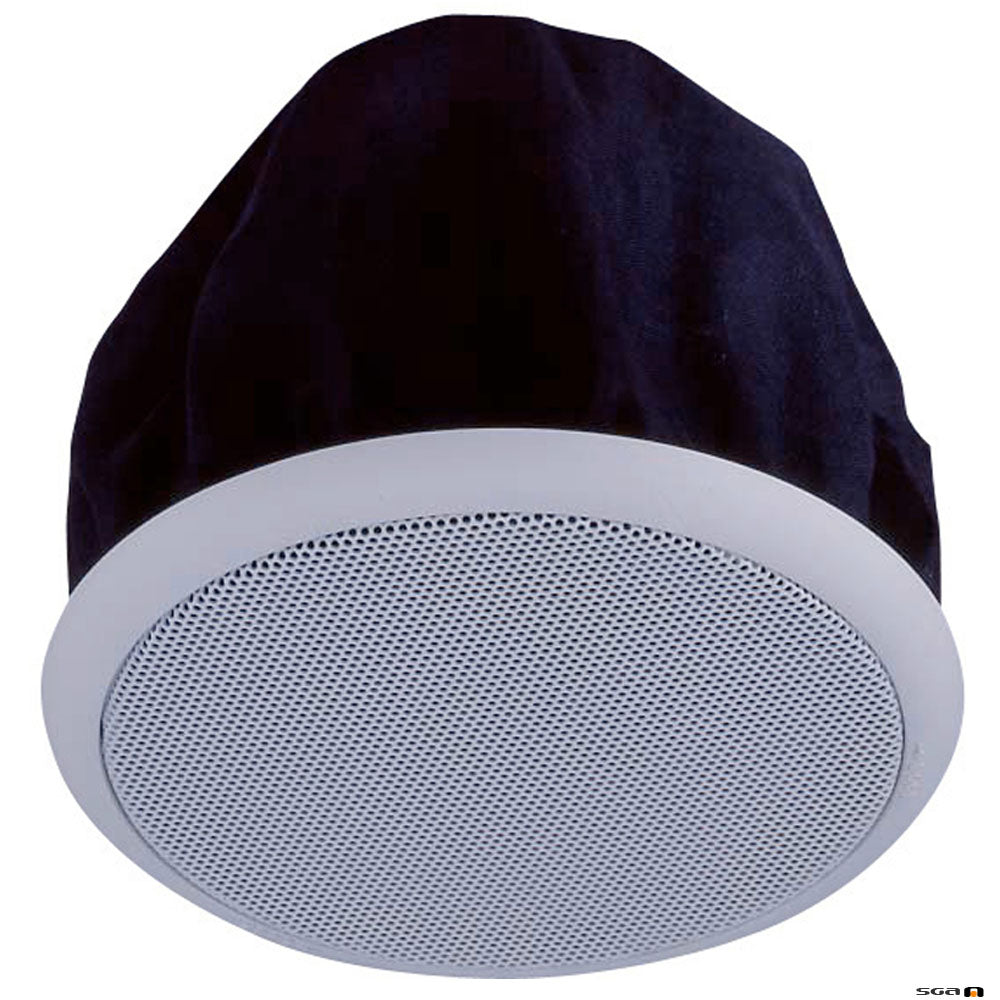

The TOA F1522SCEN ceiling and wall-mounted speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.
BSI Certified for Australian Standard Fire detection and alarm systems, Fire alarm loudspeakers AS7240.24:2018.
| Rated Input | 6 W (High Impedance) |
|---|---|
| Power Handling Capacity | Continuous pink noise: 9 W (8 Ω) Continuous program: 18 W (8 Ω) |
| Impedance | 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W) 70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W) 25 V line: 830 Ω (0.75 W), 1.7 kΩ (0.4 W), 3.3 kΩ (0.2 W) 8 Ω |
| Sensitivity | 88 dB (1 W, 1 m) |
| Frequency Response | 65 Hz - 18 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.) |
| Speaker Component | 10 cm cone-type |
| Mounting Hole | φ135 mm (Maximum ceiling thickness: 37 mm) |
| Input Terminal | Push-in connector (Bridging terminal-2 branch type) |
| Usable Cable | 600 V Vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG No. 20 - 15) 7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG No. 18 - 17) |
| Finish | Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint Punched net: Steel plate, white, paint Dust-proof bag: Artificial fiber, black |
| Dimensions | φ155 × 117 (D) mm |
| Weight | 1 kg (including panel) |
| Accessory | Panel …1, Paper pattern …1 |
| Option | Reinforcement ring: HY-RR1 |
