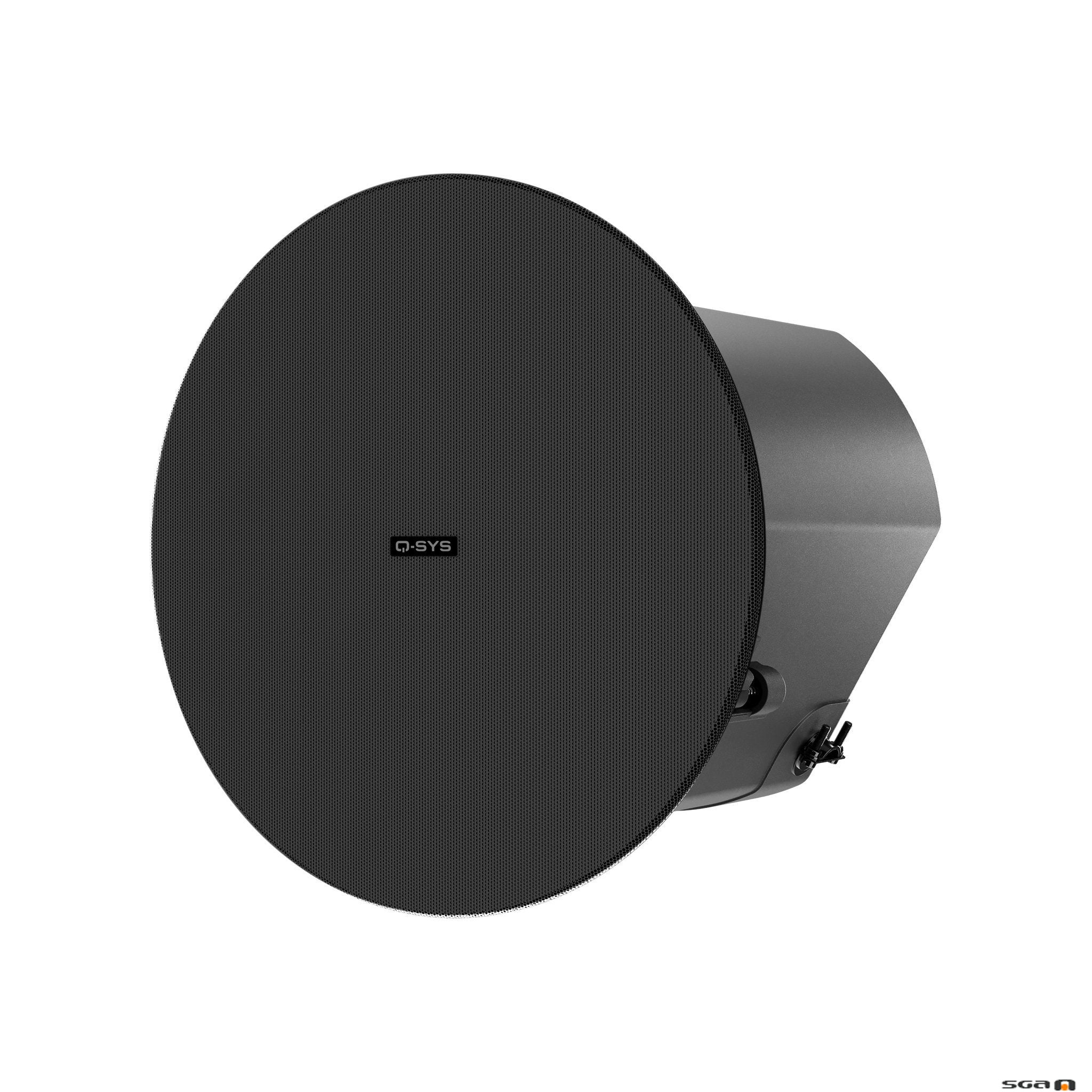

QSC AD-C8T-ZB-BK
QSC AD-C8T-ZB-BK, 8" 2-way Zero Bezel Ceiling speaker 70/100V/8Ω 90° conical DMT coverage. Black. Priced Individually (Includes AD-C305BG-BK)
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
The Q-SYS AD-C8T-ZB is an 8-in, two-way fullrange ceiling-mount loudspeaker with a coaxial compression driver that expands the Q-SYS portfolio to enable a broad range of high-fidelity applications across hospitality, entertainment and beyond.
AcousticDesign Series loudspeakers are designed with consistent tonal characteristics, allowing you to design to the needs of each unique space.
Additionally, these ceiling loudspeakers feature a bezel-less, blind-mount design to meet modern architectural needs.
Design to the needs of any space with the comprehensive AD Series loudspeaker portfolio.
Our large-format ceiling loudspeakers combine a bezelless, blind-mount design to deliver modern aesthetics and premium sonic performance for any installation type.
AcousticDesign™ Series loudspeakers are specifically designed to maintain a consistent tonal characteristic across the entire family of ceiling, pendant and surface-mount form factors.
This enables seamless audio transitions across zones to ensure an uninterrupted audio experience.
- 8-in ceiling loudspeaker with bezel-less design
- Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 3x double stepped, long travel dog-ear blind mount system
- Intrinsic Correction™ voicings available via the Q-SYS Platform including CX-Q amplifiers
- Blemish-free removable logo
- Removable conduit cover plate, also available as accessory for pre-install wiring
- UL1480 and UL2043 certified
- Available in white (RAL 9003), with black grille accessory sold separately.
|
SPECIFICATIONS |
AD-C8T-ZB |
|
LF transducer |
8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite |
|
HF transducer |
Coaxial compression driver, 1.5 in (38.1 mm) voice coil |
|
Enclosure configuration |
Two-way, ceiling loudspeaker, Bass Reflex |
|
System bandwidth (1) |
-3 dB: 70 Hz - 20 kHz |
|
Sensitivity (2) |
92.5 dB @ 1 W/1 m |
|
Coverage |
90° conical DMT |
|
Max SPL (continuous) (3) |
114 dB |
|
Max SPL (peak) (4) |
126 dB |
|
Max SPL (calculated) (5) |
121 dB |
|
Power rating |
Continuous power 200 W @ 8Ω, rated Power 400 W |
|
Bypass impedance |
8 Ω |
|
Minimum impedance |
6.8 Ω @ 291 hz |
|
Transformer taps (70v/100v) |
25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W |
|
Enclosure material |
ABS baffle on powder coated steel back-can |
|
Enclosure color |
Black back-can, white grille (RAL 9010) |
|
Connectors |
4-pin 0.2 in (5 mm) Euroblock connector with parallel output |
|
Dimensions (H x W x D) |
13.5 x 13.5 x 13.75 in (342.9 x 342.9 x 349.25 mm) |
|
Cutout dimensions |
305 mm |
|
Shipping dimensions (H x W x D) |
19.5 x 17.5 x 32 in (495.3 x 444.5 x 812.8 mm), pair packed |
|
Weight |
23.7 lb (10.75 kg) |
|
Shipping weight |
69.5 lb (31.5 kg) |
|
Included accessories |
Tile rails & screws, tile rings, cardboard cutout templates, wire connector, white grille |
|
Optional accessories (sold separately) |
AD-MR8 (pre-install mud ring), AD-C305BG-BK black grille |
|
Ingress protection |
IP-44 |
|
Safety agency |
UL1480A, UL2043, NFPA 90A, NFPA70 suitable for use in air handling spaces. ROHS, CE compliant. Baffle meets UL94-V0 flammability rating; in accordance with IEC60849 / EN60849 systems. |
