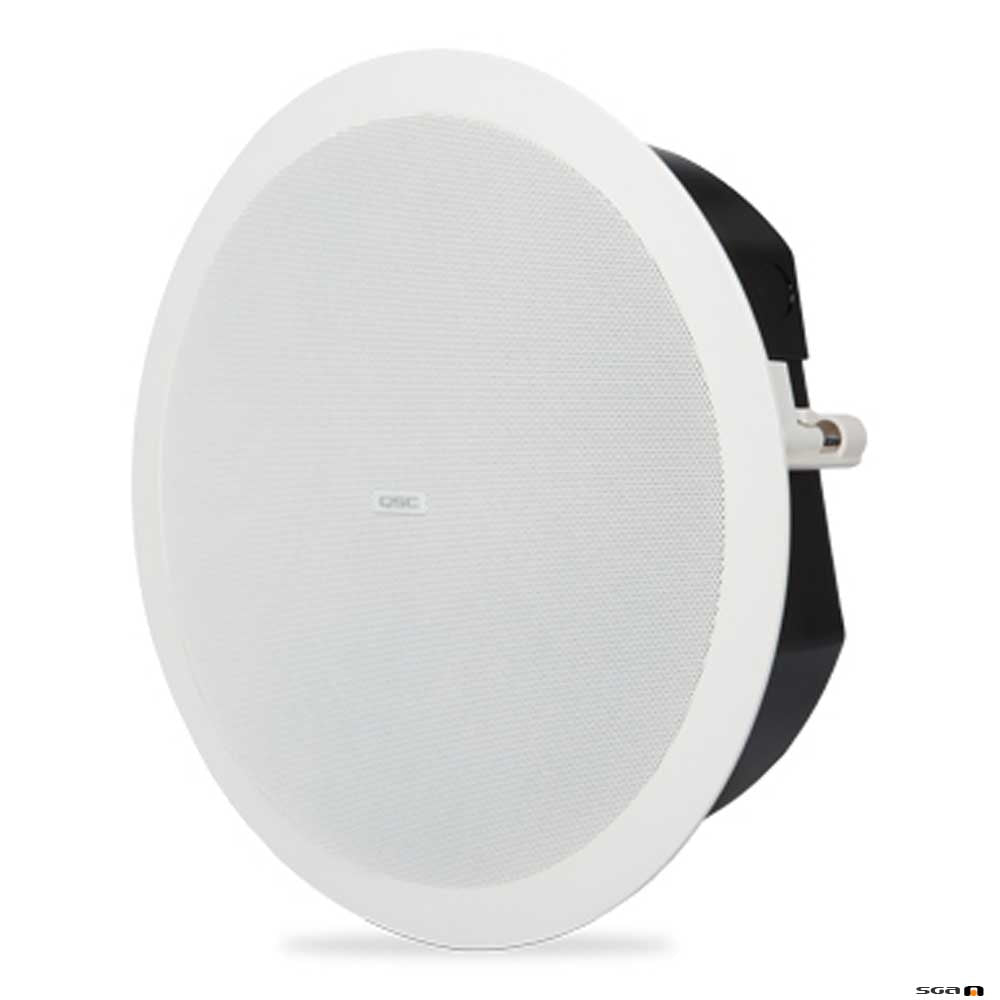

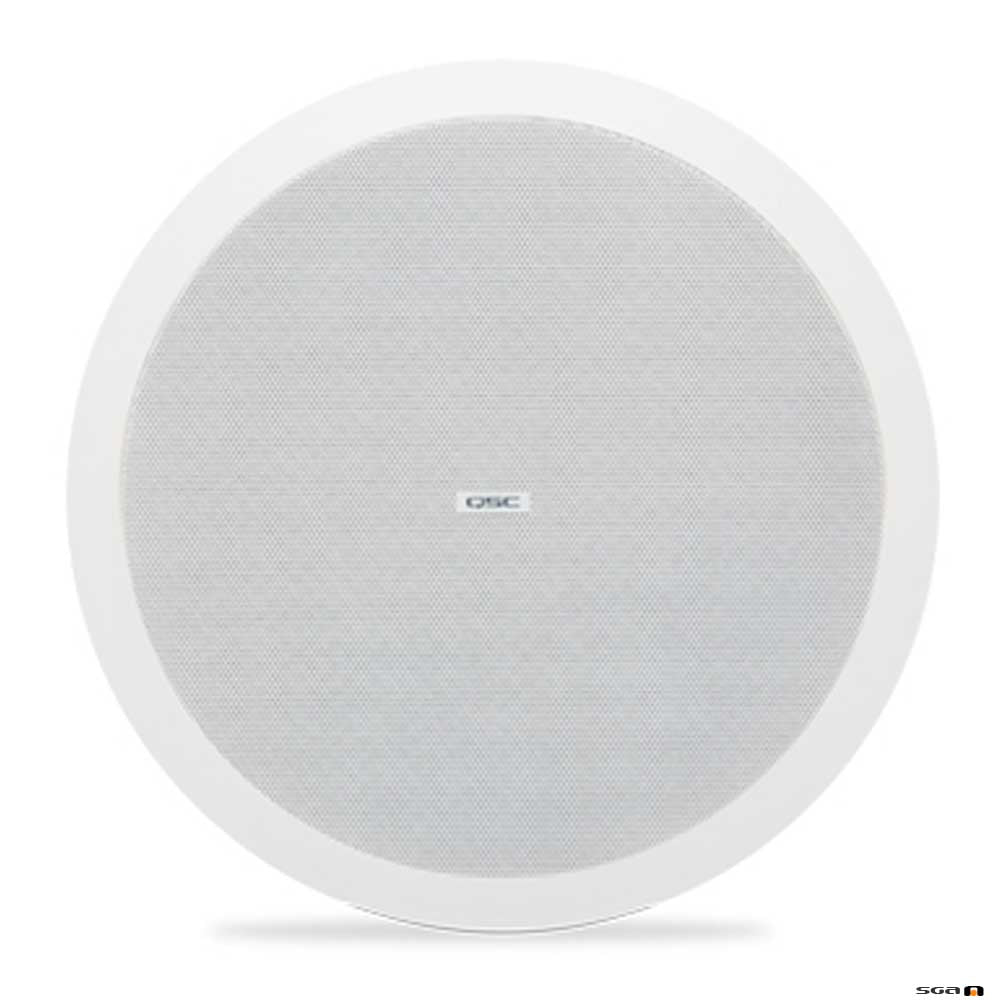

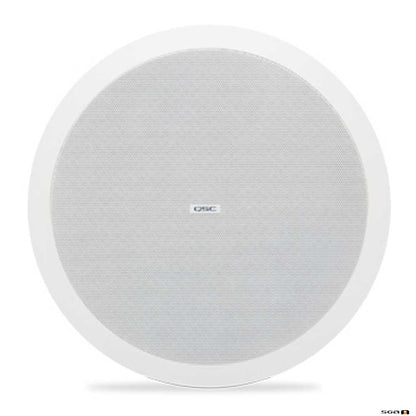

QSC AD-C6T-LP
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
SOLD IN PAIRS
- Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
- Directivity Matched Transition® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille

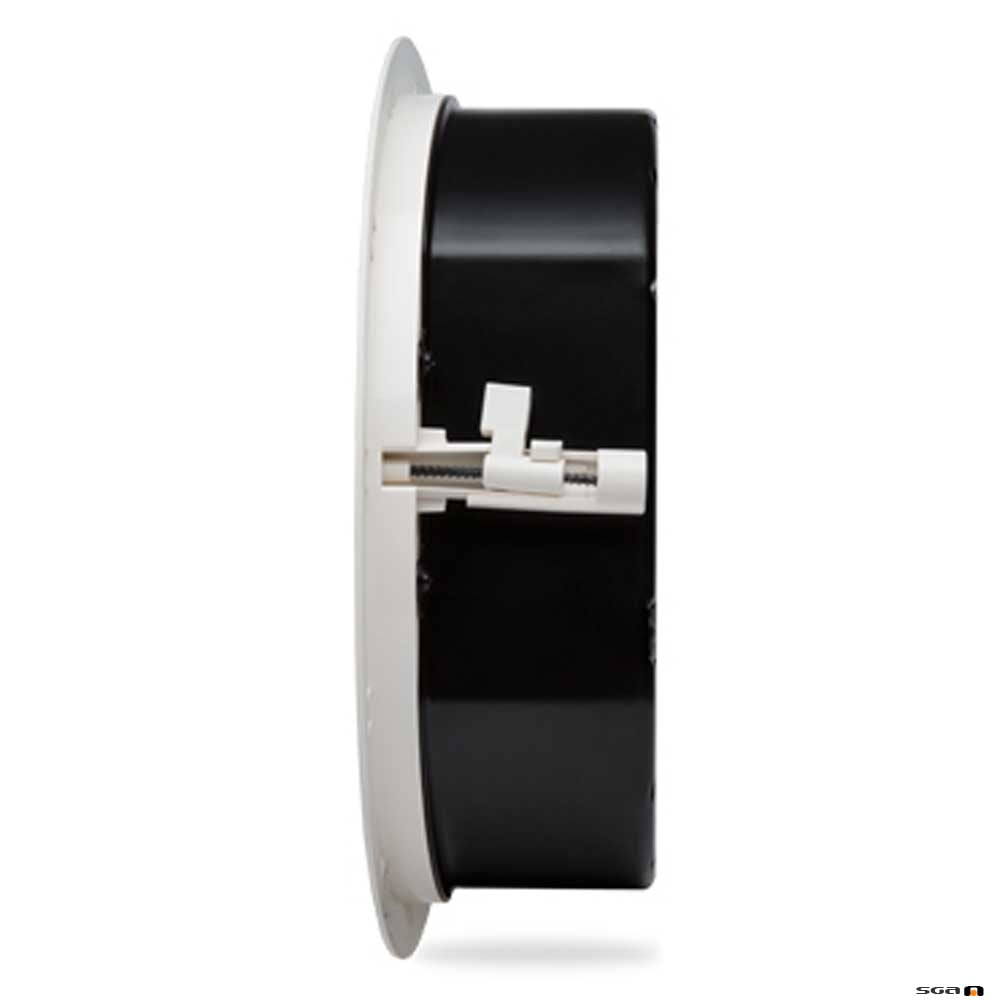

- 3x double stepped, long travel dog-ear blind mount system
- Advanced Intrinsic Correction™ voicings available via Q-SYS™ Ecosystem and CXD processing amplifiers
- Low-saturation and low-loss 70/100V transformers with 16Ω bypass
- Blemish-free removable logo
- Removable conduit cover plate, also available as accessory for pre-install wiring
- UL1480 and UL2043 certified
- Available in white (RAL 9010)
- Complete EASE, CF2, CAD, & BIM information available online
|
SPECIFICATIONS |
AD-C6T-LP |
|
Effective frequency range1 |
65 Hz – 20 kHz |
|
Rated noise power / voltage2 |
60 watts / 31 volts (rms) |
|
Sensitivity [dB]3 Sensitivity at 4m, 100V maximum tap |
88 TBD |
|
Rated coverage (-6 dB)4 |
135° conical DMT™ |
|
Directivity factor (Q) |
6.5 |
|
Directivity index (DI) [dB] |
8 |
|
Maximum continuous SPL [dB]5 |
106 |
|
Maximum peak SPL [dB]5 |
112 |
|
Nominal impedance [ohms] |
16 |
|
Recommended amplifier |
120 watts |
|
Transformer taps / impedance |
16Ω (in bypass setting) 7.5W (70V); 15W (100V) Tap: 667Ω 15W (70V); 30W (100V) Tap: 333Ω 30W (70V); 60W (100V) Tap: 167Ω 60W (70V); N/A (100V) Tap: 83Ω |
|
LF transducer |
165 mm [6.5-inch] weather resistant paper cone woofer |
|
HF transducer |
25 mm [1-inch] aluminum dome tweeter |
|
Input connector type |
Euroblock connector with parallel output |
|
Enclosure material |
ABS baffle on powder coated steel back can |
|
Grille material |
Powder coated steel |
|
Ingress protection |
IP-34 |
|
Operating environment |
Designed for indoor use |
|
Operating temperature range |
-20 to 50° C [-4 to 122° F] |
|
Cutout dimension |
Ø 305 mm [Ø 12-inch] |
|
Net weight |
4.2 kg [9.3 lb] |
|
Product dimensions (Diameter x Height) |
Ø 340 x 100 mm [Ø 13.37 x 3.95-inch.] |
|
Shipping weight |
13.3 kg [29.3 lb] (pair packed) |
|
Shipping dimensions (H x W x D) |
178 x 864 x 470 mm [7 x 34 x 18.5-inch] (pair packed) |
|
Included accessories |
C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille |
|
Optional accessories |
AD-MR8 (pre-install mud ring) |
|
Safety Agency |
UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems. |
