Optimal Up 6O
Optimal Audio 6" ceiling speaker (no backcan) 6" driver with 1" metal dome tweeter. 16 Ohm (60W AES, 120W Peak) or 100V line with tappings of 60, 30, 15 Watts. Sold and priced individually but packed in pairs.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**

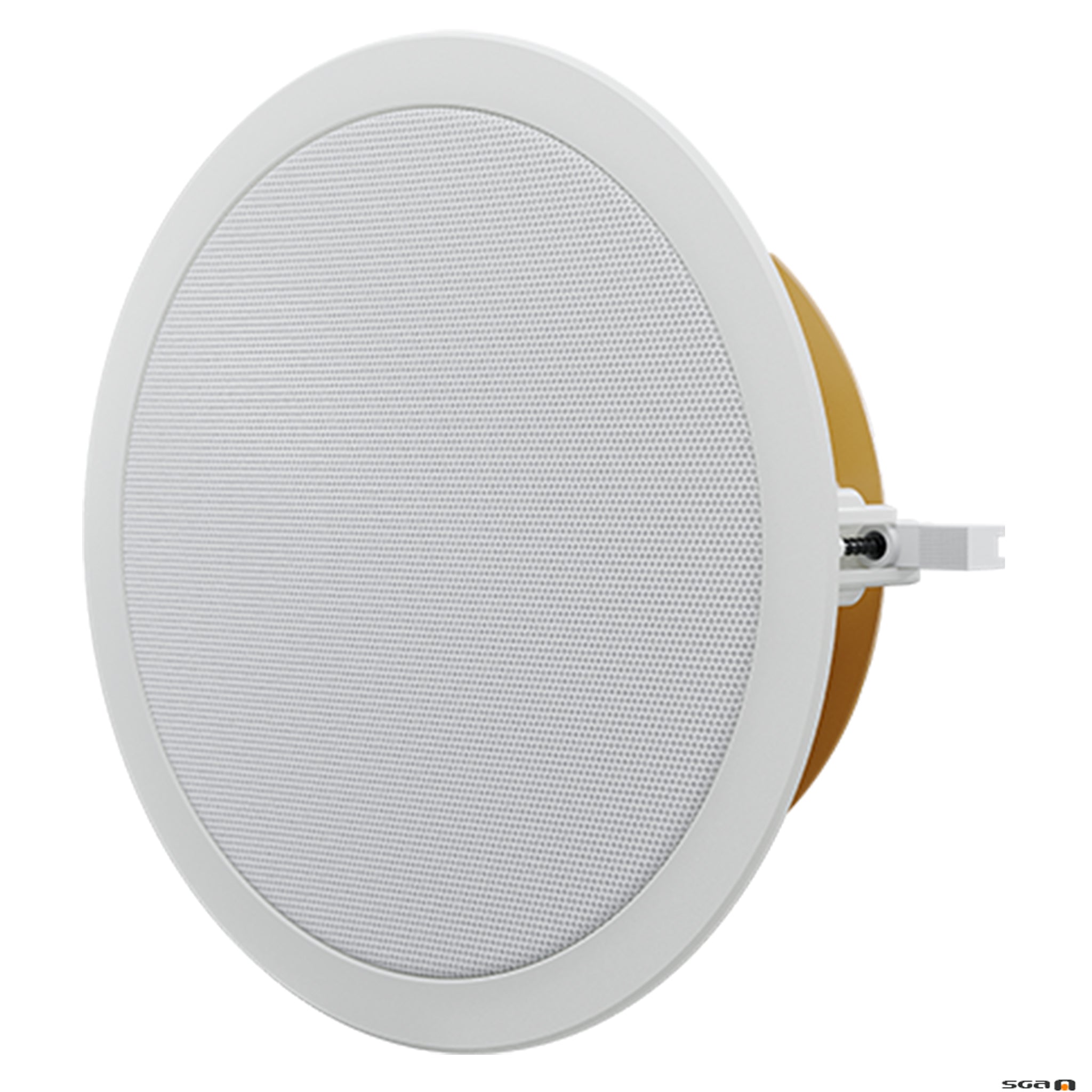

Up 6O is a discreet 6” ceiling speaker delivering consistent coverage and crisp, clear sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.

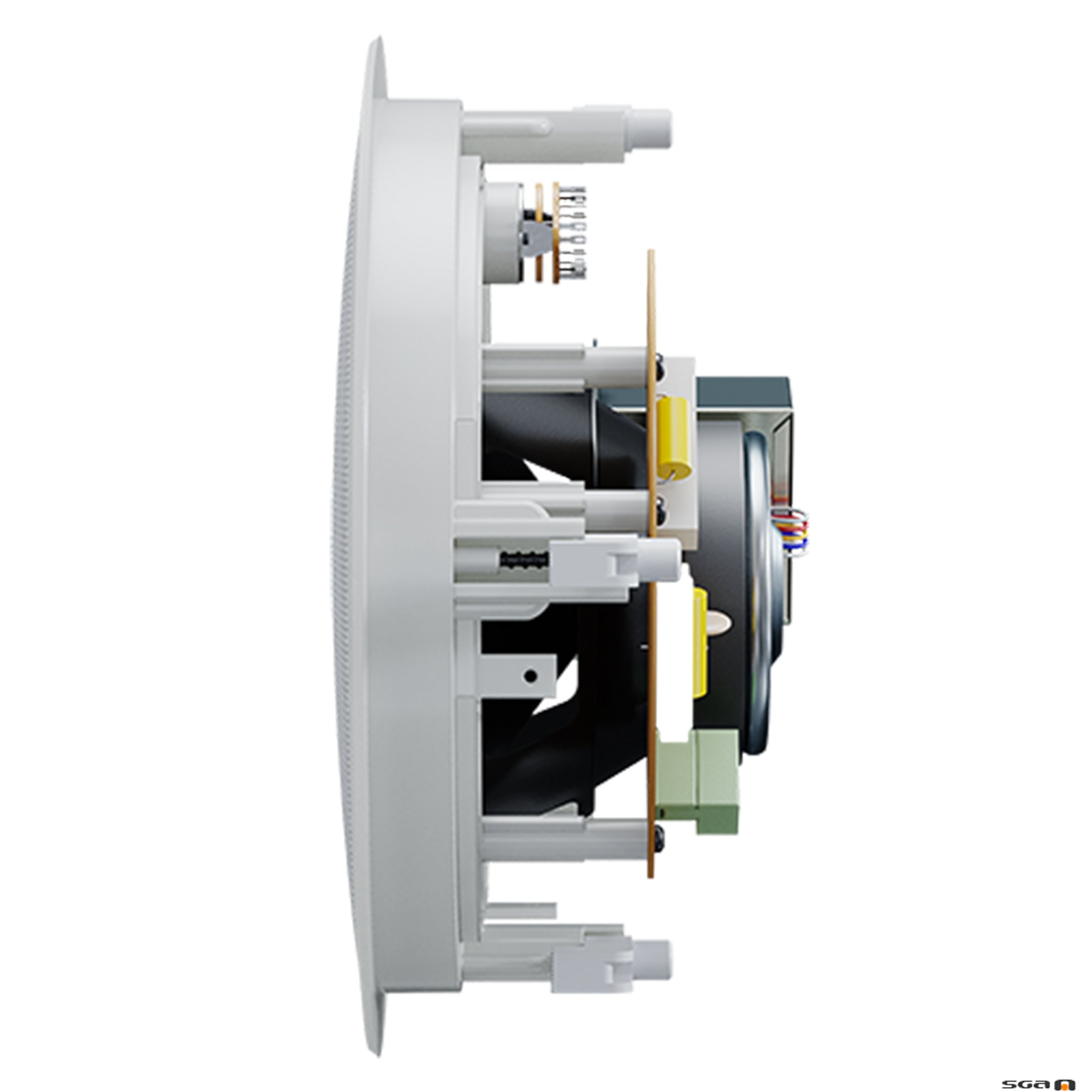

Up 6O is supplied without a back can for ceilings with a minimum cavity depth, while an integral fixing system is included to achieve a simple and clean installation. The steel perforated grille is finished in neutral white.
With the addition of the Grille 2 accessory, Up 6O can be easily enhanced with a bezel-less grille appearance and is available in both black and white, helping to blend into any architectural environment.

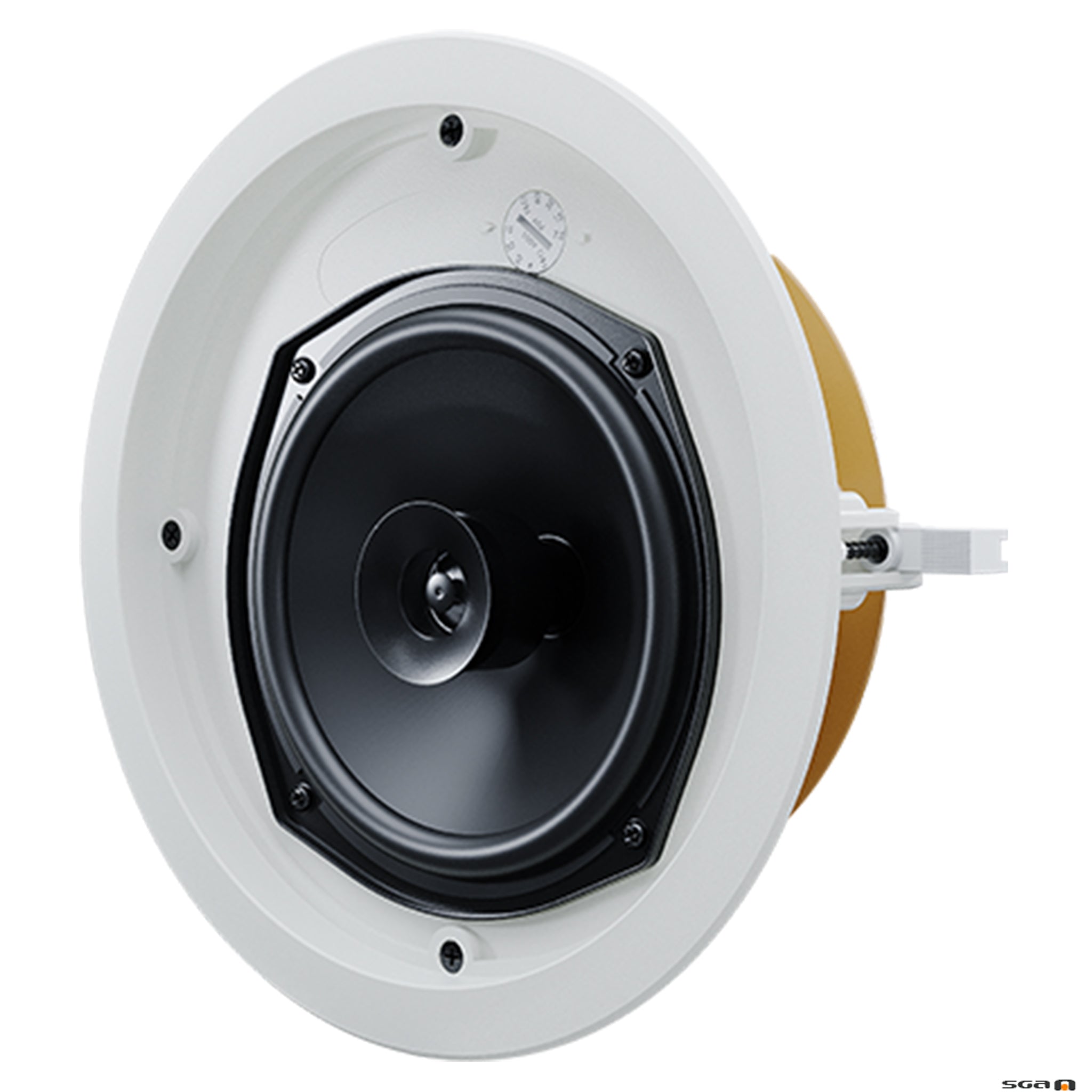

Up 6O features a 6” (162mm) low frequency driver paired with a 0.7” (20mm) metal dome tweeter. It is suitable for both high quality speech and music reproduction. A conical 110° coverage pattern delivers consistent, high performance sound where it needs to go.
Each Up 6O can be run on a series of 70 or 100 Volt taps or at low impedance. The 16 ohm setting allows up to four units to be connected to each amplifier channel at low impedance. Tap selection is via a rotary switch behind the removable grille.
A SmartAmp or powered Zone will provide amplification, optimal sound performance and loudspeaker protection via onboard presets. When teamed with Zone and WebApp, system set up and end user control is effortless, and can be further supplemented by ZonePad wall controllers.
- 6” Coaxial Driver
- Discreet size without back can
- Unobtrusive Design
- 16 ohm or 70/100V line operation
- Wide Conical Coverage Pattern
- Integrated Mounting Hardware
- Bezel-less grille accessory available
| TYPE | Two-way, full range, passive, ceiling speaker |
| FREQUENCY RESPONSE (with preset) |
65Hz to 18kHz ±3dB -10dB @ 50Hz |
| DRIVERS | LF: 6.5” (162mm), Coated paper HF: 1” (25mm) exit/ 0.7” (20mm) Metal dome |
| RATED POWER | 60W (AES) 120W (Peak) |
| NOMINAL IMPEDANCE | 16Ω |
| SENSITIVITY (1W/1m) | 90dB |
| MAXIMUM SPL | 108dB (cont), 111dB (peak) |
| CROSSOVER | 2.7kHz passive |
| RECOMMENDED HIGH-PASS FILTER | 24dB/octave @ 60Hz |
| TRANSFORMER TAPS @ 70V | 60, 30, 15, 7.5W |
| TRANSFORMER TAPS @ 100V | 60, 30, 15W |
| DISPERSION (-6dB) | 110˚ conical |
| BACK CAN | N/A |
| BAFFLE | ABS |
| PROTECTIVE GRILLE | Perforated steel |
| FIRE RATING | UL94-V0 |
| CONNECTORS | 4 Pin Euroblock with link out |
| FITTINGS | C-ring support backing plate |
| DIMENSIONS (inc. Grille) | (Ø) 251mm x (D)103.5mm (Ø) 9.88” x (D) 4.1” |
| CUT-OUT DIAMETER | 222mm (8.74”) |
| WEIGHT |
2.24kg (4.94lb) |
