Optimal Up 4S
Optimal Audio 4" low-profile ceiling speaker with backcan. 4" driver with 0.7" silk dome tweeter. 8 Ohm (15W AES, 30W Peak) or 100V line with tappings of 8, 4, 2, 1 Watts. Sold and priced individually but packed in pairs.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**

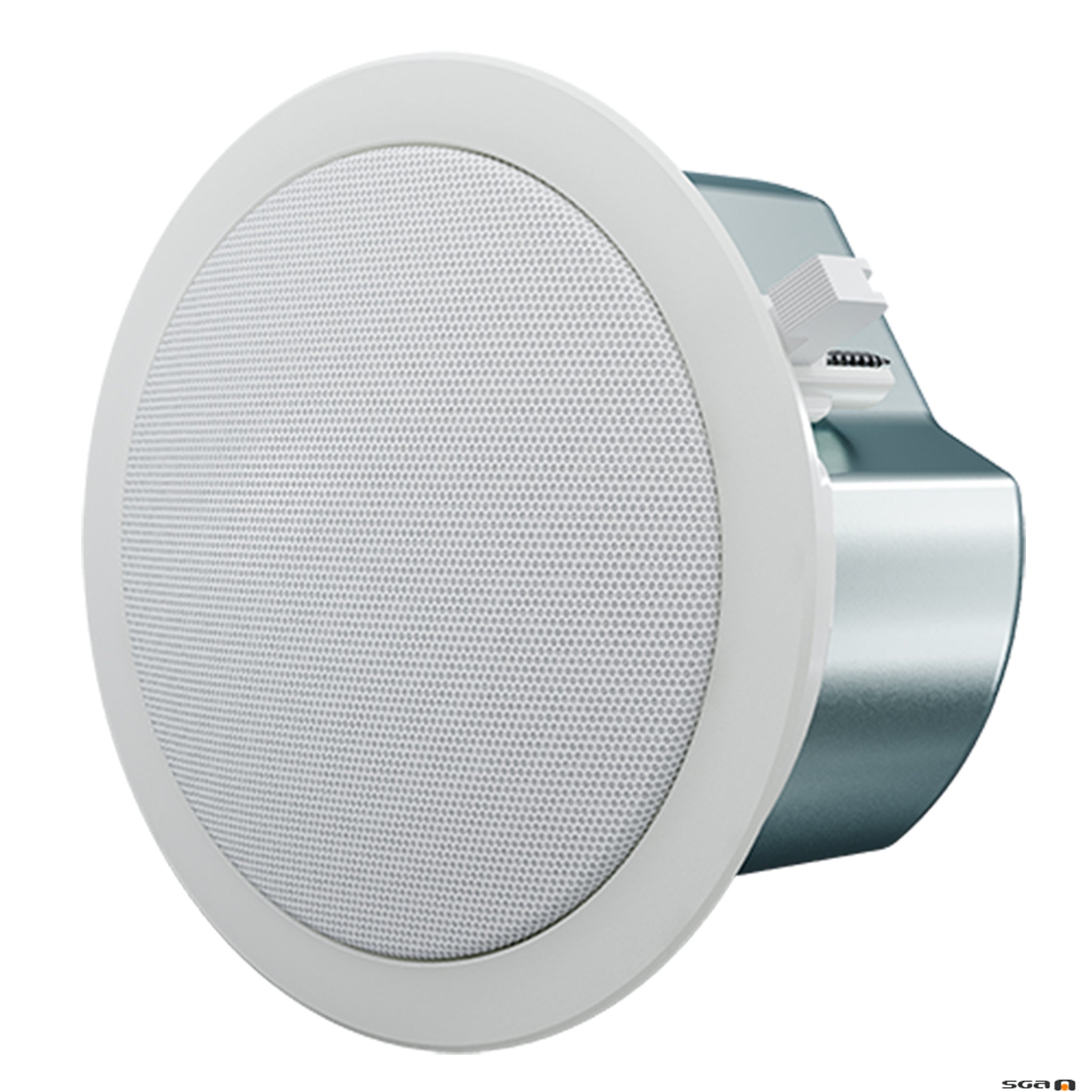

Up 4S is a discreet, two-way, passive 4” speaker delivering consistent coverage and full frequency sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.

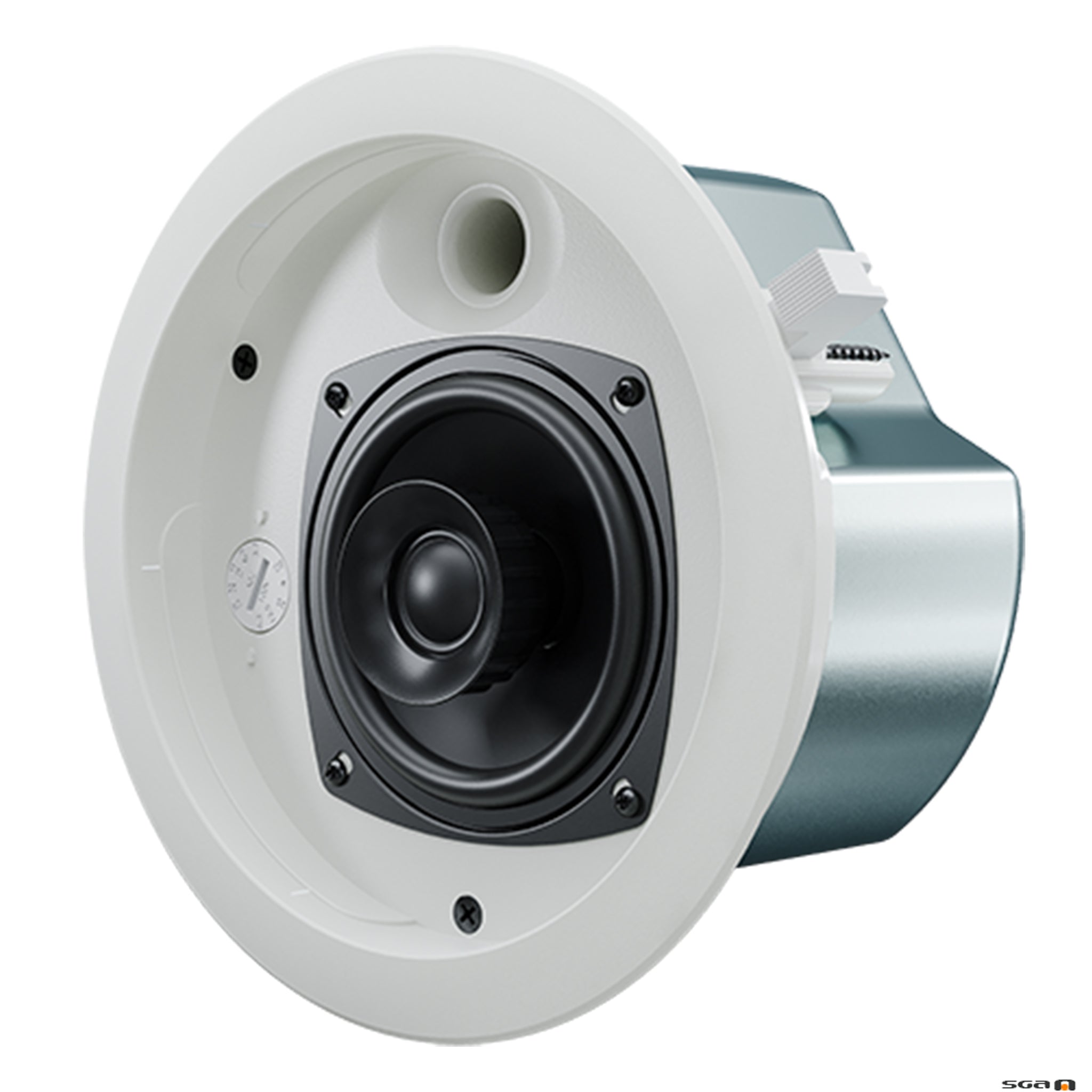

Up 4S features a 4” (105mm) low frequency driver paired with a 0.7” (20mm) silk dome tweeter. It is suitable for both high quality speech and music reproduction.
The Pendant 1 and Grille 1 accessories offer further flexibility in installation and applications, allowing you to either elegantly suspend Up 4S speakers as stylish pendants or achieve a sleek, bezel-less grille appearance. These accessories are available in both black and white, helping to blend into any architectural environment.

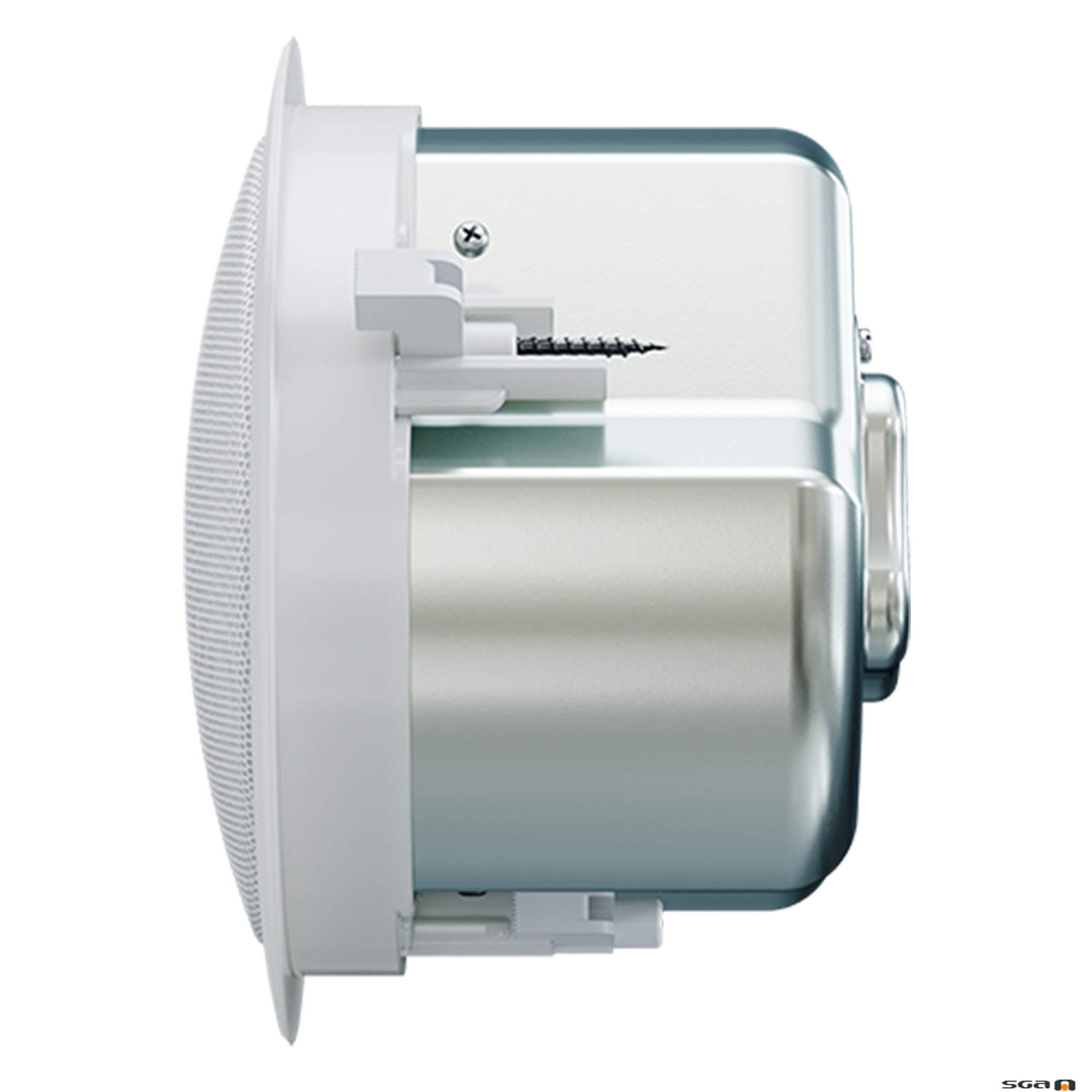

The wide 150° conical coverage of Up 4S makes it particularly suitable for low ceilings and reduces the number of speakers required for even coverage leading to a reduction in installation cost. A shallow steel back can allows installation in ceilings with minimal cavity depth. An integral fixing system is included to achieve a simple and clean installation. Up 4S has a steel back, perforated steel grille and finished in neutral white.
Each Up 4S can be run on a series of 70 or 100 Volt taps or at low impedance. Tap selection is via a rotary switch behind the removable grille.
A SmartAmp or powered Zone will provide amplification, optimal sound performance and loudspeaker protection via presets. When coupled with a Zone and WebApp, system set up and end user control is straight forward, and can be further supplemented by ZonePad wall controllers.
- 4” coaxial driver
- Discreet size with shallow back can
- Unobtrusive design
- 8 ohm or 70/100V line operation
- Range of power taps
- Wide conical coverage pattern
- Integrated mounting hardware
- Pendant and bezel-less grille accessory available
| TYPE | Two-way, full range, passive, ceiling speaker |
| FREQUENCY RESPONSE (with preset) | 110Hz – 18kHz ± 3dB -10dB @ 85Hz |
| DRIVERS | LF: 4” (105mm), Polypropylene injection moulded HF: 0.7″ (20mm) Silk Dome |
| RATED POWER | 15W (AES) 30W (Peak) |
| NOMINAL IMPEDANCE | 8Ω |
| SENSITIVITY (1W/1m) | 86dB |
| MAXIMUM SPL | 98dB (cont), 101dB (peak) |
| CROSSOVER | 3.5kHz passive |
| RECOMMENDED HIGH-PASS FILTER | 24dB/octave @ 85Hz |
| TRANSFORMER TAPS @ 70V | 8,4,2,1,0.5W |
| TRANSFORMER TAPS @ 100V | 8,4,2,1W |
| DISPERSION (-6dB) | 150˚ conical |
| BACK CAN | Zinc-plated Steel |
| BAFFLE | ABS |
| PROTECTIVE GRILLE | Perforated steel with cloth backing |
| UL94-V0 UL94-5VB | |
| CONNECTORS | 4 Pin Euroblock with link out |
| FITTINGS | C-ring support backing plate |
| DIMENSIONS (inc. Grille) | (Ø) 202mm x (D) 144mm (Ø) 7.95” x (D) 5.67” |
| CUT-OUT DIAMETER | 178mm (7.01”) |
| WEIGHT | 2.2kg (4.9lbs) |
