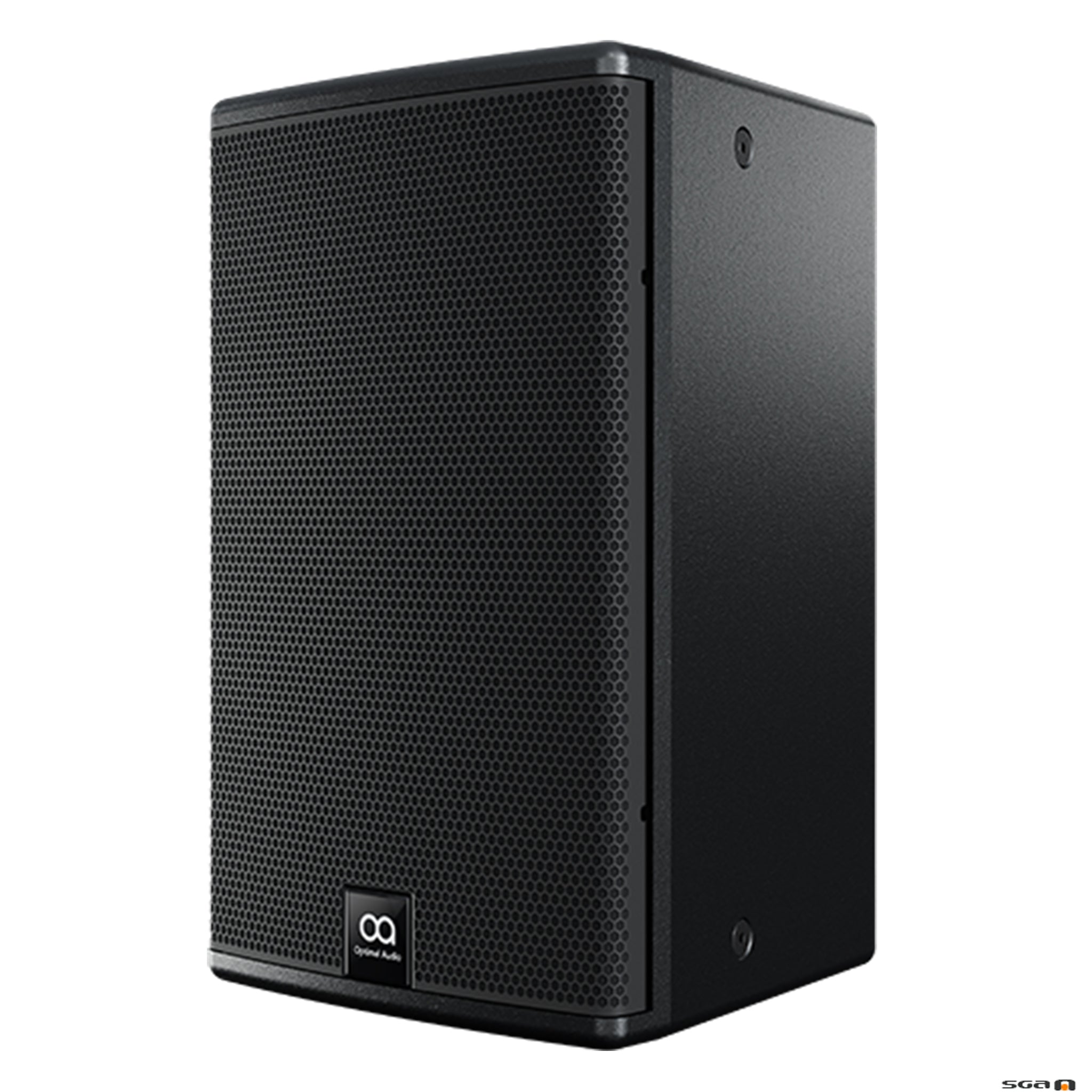

Cuboid 8 is a full range, two-way, passive, 8” loudspeaker designed to outperform its compact size. For short to medium throw distances, it effortlessly delivers rich and detailed sound with punch and precision.
With its wooden cabinet, steel grille and optional mounting hardware the professionally presented Cuboid 8 can be fixed in either portrait or landscape mode for a flexible, simple installation.
Cuboid 8 features an 8” (200mm) low frequency (LF) driver for impressive punch and midband with a 1″ (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user-rotatable horn.
For enhanced bass performance, Cuboid 8 can be teamed with Sub 10 or Sub 15.
When coupled with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.
- Compact sized wooden cabinet
- Portrait or landscape mounting options
- Rotatable high-frequency horn
- 90Hz – 20kHz frequency response
- Max SPL 115dB (cont), 121dB (peak)
- 90˚ horizontal x 50˚ vertical coverage
| TYPE | Two-way, full range, passive loudspeaker |
| FREQUENCY RESPONSE (with preset) | 90Hz – 18kHz ± 3dB -10dB @ 62Hz |
| DRIVERS | LF: 8” (200mm), ferrite motor system HF: 1” (25mm) exit/1” (25mm) voice coil, polymide dome compression driver |
| RATED POWER | 200W (AES) 800W (Peak) |
| NOMINAL IMPEDANCE | 8 Ohms |
| SENSITIVITY (1W/1m) | 92dB |
| MAXIMUM SPL | 115dB (cont), 121dB (peak) |
| CROSSOVER | 2.9kHz passive |
| DISPERSION (-6dB) | 90˚ H x 50˚ V (user-rotatable) |
| ENCLOSURE | Trapezoid wooden cabinet |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| CONNECTORS | 2x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| FITTINGS | 16 x M8, inset bolts |
| DIMENSIONS | (W) 256mm x (H) 422.5mm x (D) 261mm (W) 10.08” x (H) 16.63” x (D) 10.28” |
| WEIGHT | 10kg (22.05lbs) |
Related Products
-

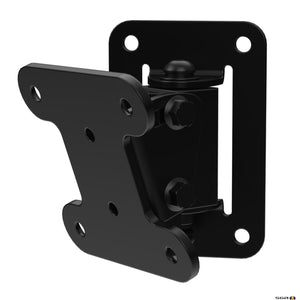

Optimal WB1-B
Optimal Audio wall bracket for Cuboid 8
Regular price $159.00Regular price -

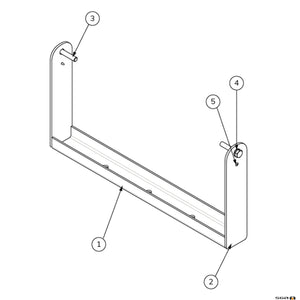

Optimal UB1-B
