Optimal Cuboid 6TXB
Optimal Audio 6.5"/1" full range speaker. Discreet size, high performance. 130x120 degree coverage. Supplied with wall bracket for portrait or landscape mounting. IP54 for outdoor use with optional terminal cover. Black
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Cuboid 6TX is a full range, two way, passive 6.5” loudspeaker designed to give exceptional sound quality in a very small form factor, for distributed applications with high quality background music and speech reproduction.

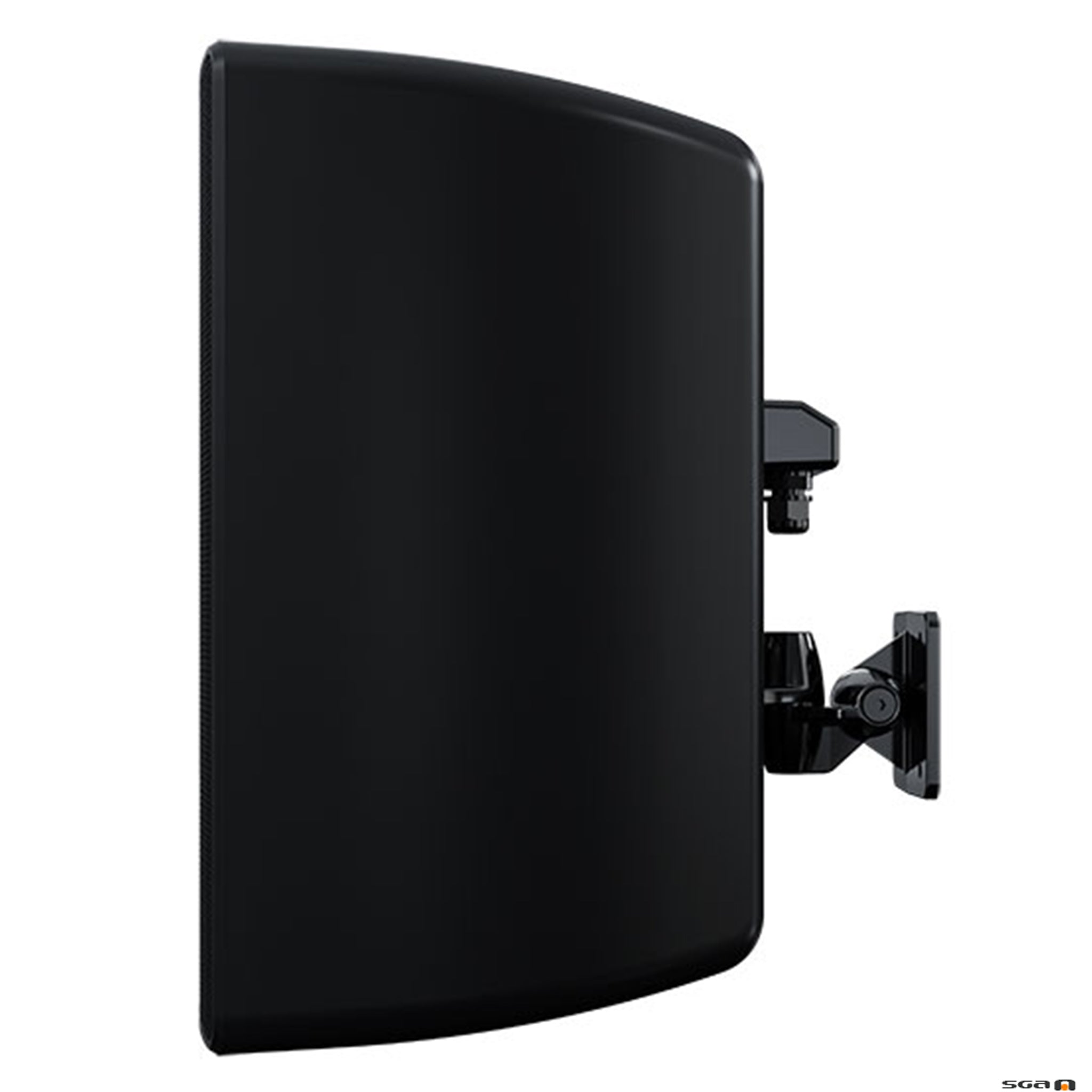

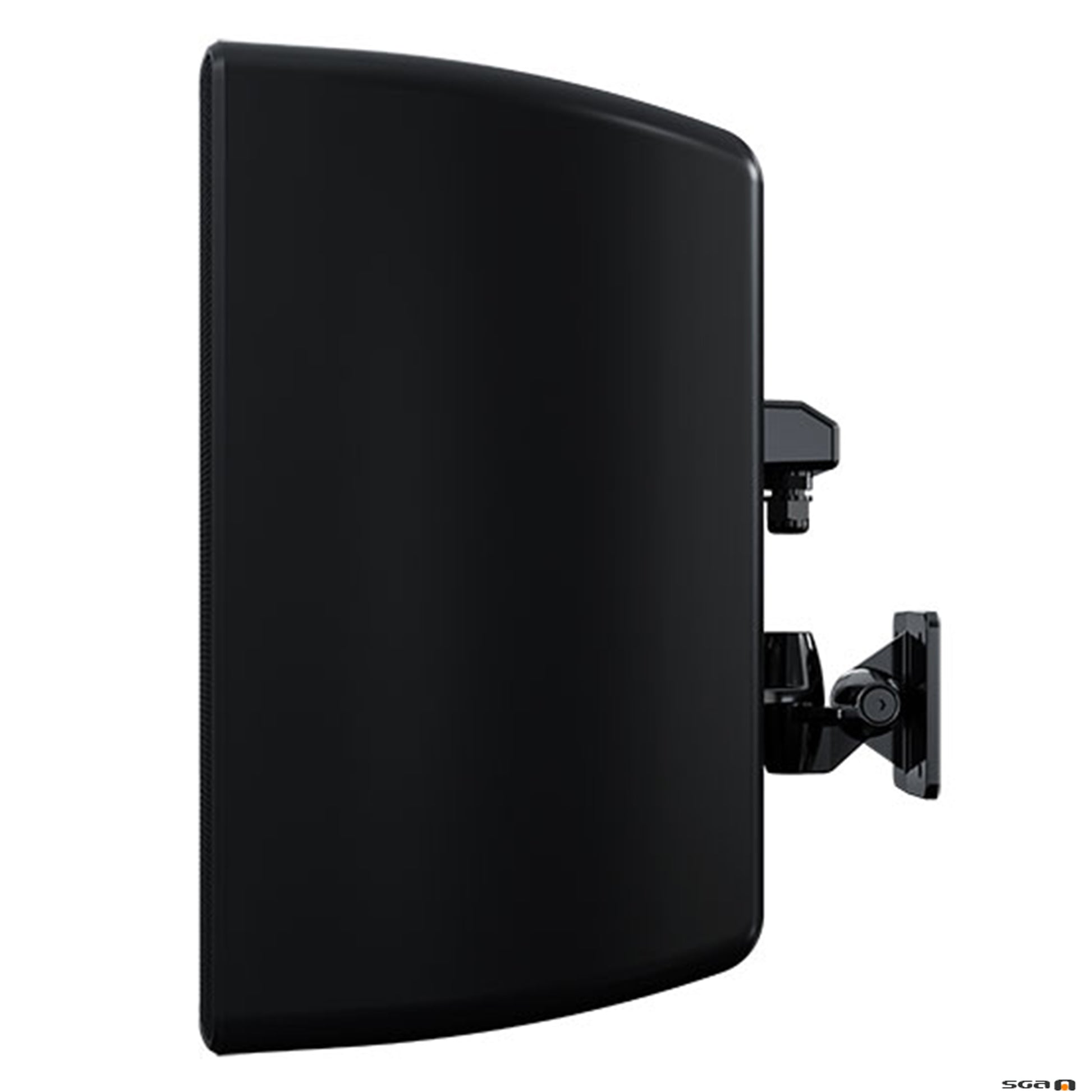

With its attractive design and included mounting hardware, Cuboid 6TX can be fixed in either portrait or landscape orientation for simple and flexible installation. A weatherproof terminal cover is available for outdoor use, bringing the rating to IP54.
Cuboid 6TX features a 6.5” low frequency driver and a 1” silk dome high frequency driver mated to a shallow wave guide for consistent HF distribution.

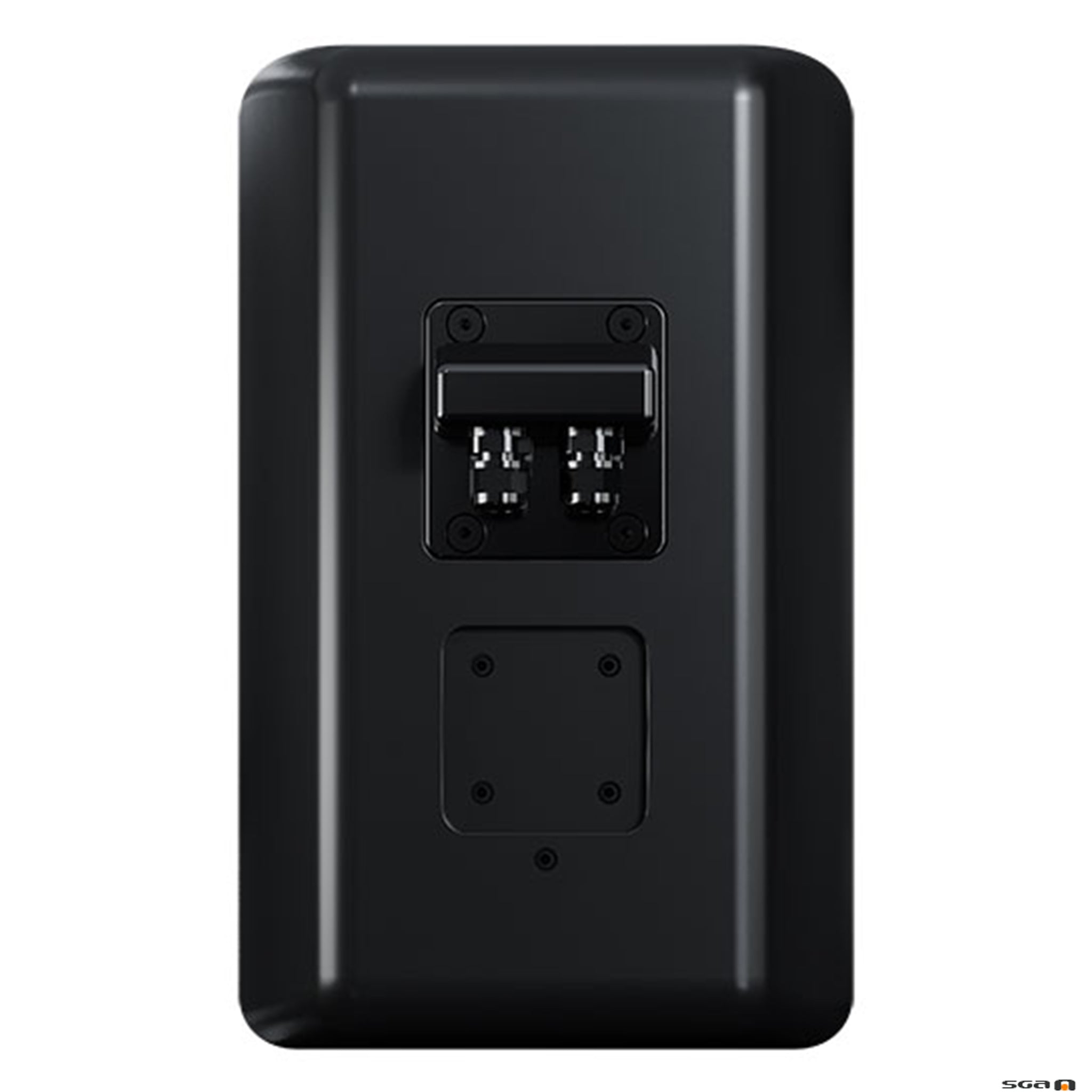

Each Cuboid 6TX has an improved 60w transformer which enables the delivery of premium sound when installed on 70 or 100V taps or at low impedance. Tap selection is via a rotary switch on the rear of the cabinet.
For enhanced bass performance, Cuboid 6TX can be teamed with Sub 10, and a SmartAmp or powered Zone will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.
When coupled with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.
- Discreet size, high performance
- Portrait or landscape mounting options
- Wall bracket included
- Max SPL 107dB (cont) 113dB (peak)
- 130° horizontal x 120° vertical coverage
- IP54 for outdoor use with accessory terminal cover
- 8 ohm or 70/100V line operation
| TYPE |
Two-way, full range, passive 6.5” loudspeaker with transformer |
| FREQUENCY RESPONSE (with preset) | 90Hz – 20kHz +/-3dB, -10dB @ 70Hz |
| DRIVERS |
LF: 6.5”(165mm) coated paper, ferrite motor system HF: 1” (25.4mm) Silk Dome, neodymium motor system |
| IP RATING | IP54 when used with accessory terminal cover |
| RATED POWER | 60 W (AES) 240W (peak) |
| NOMINAL IMPEDANCE | 8 Ohms |
| SENSITIVITY (1W/1m) | 89dB |
| MAXIMUM SPL | 107dB (continuous) 113dB (peak) |
| CROSSOVER | 3.4kHz |
| RECOMMENDED HIGH PASS FILTER | 24dB Per Octave @ 50 Hz |
| TRANSFORMER TAPS @ 70v | 3.75, 7.5, 15, 30W |
| TRANSFORMER TAPS @ 100v | 7.5, 15, 30, 60W |
| DISPERSION (-6dB) | 130°H x 120°V |
| ENCLOSURE | ABS |
| FINISH | Black and White finish |
| PROTECTIVE GRILLE | Painted Aluminium |
| CONNECTORS | 4 pin Euroblock |
| PIN CONNECTIONS (INPUT) | Positive and negative in with link out terminals |
| FITTINGS | M4 mounting points for wall bracket |
| DIMENSIONS |
(W)200 x (H)320 x (D)190mm (W)7.9” x (H)12.6” x (D)7.5” |
| WEIGHT | 3.82kg (8.4lb) |
