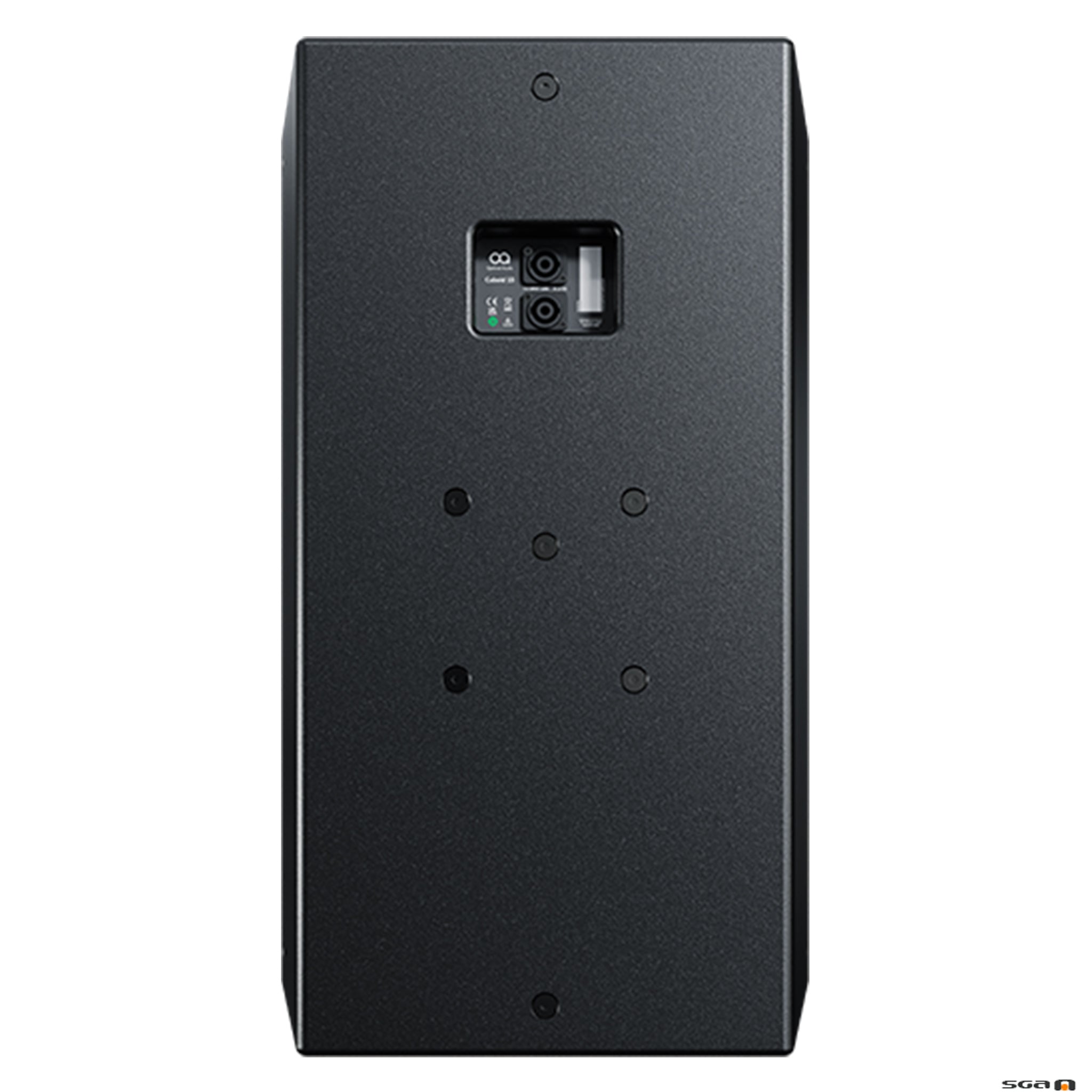

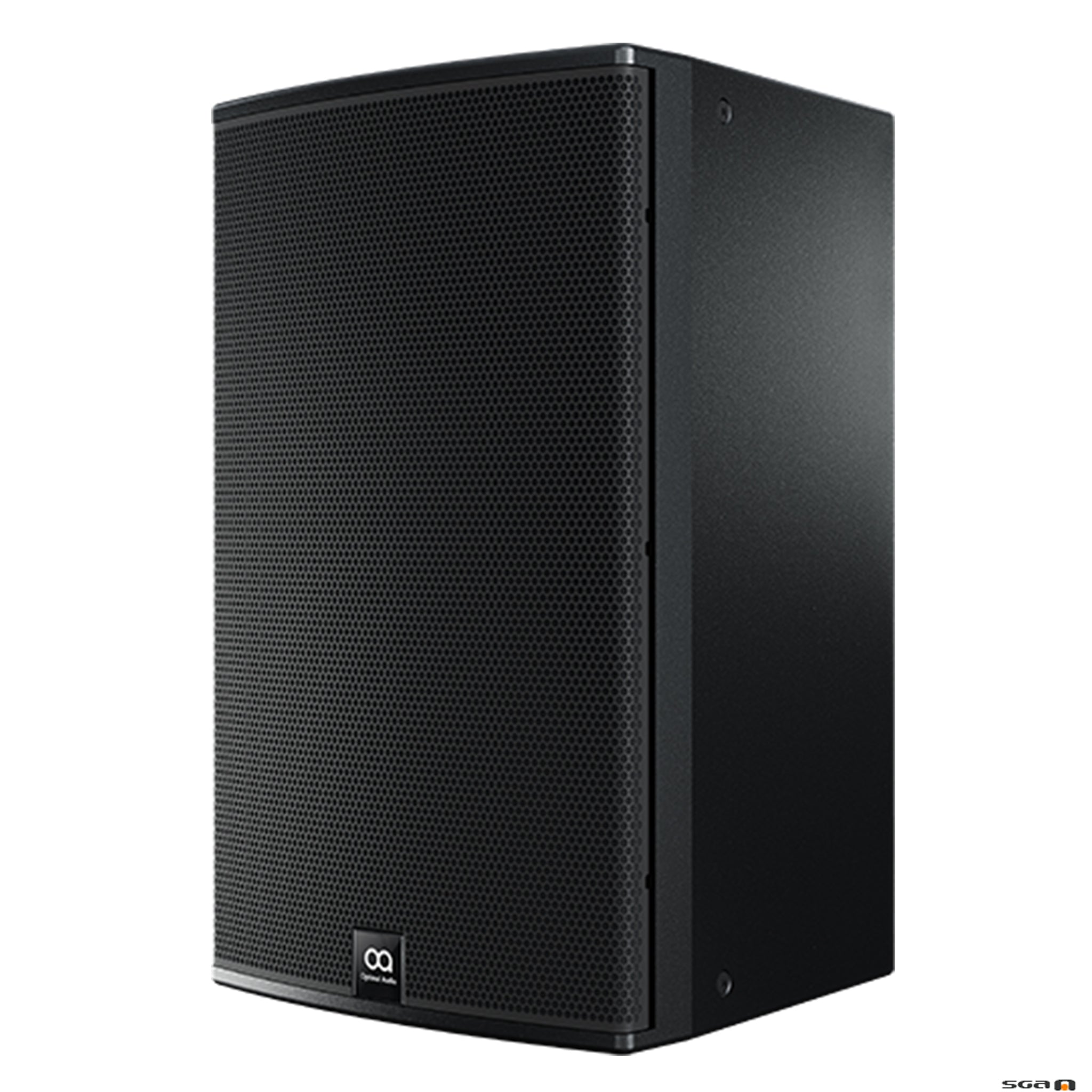

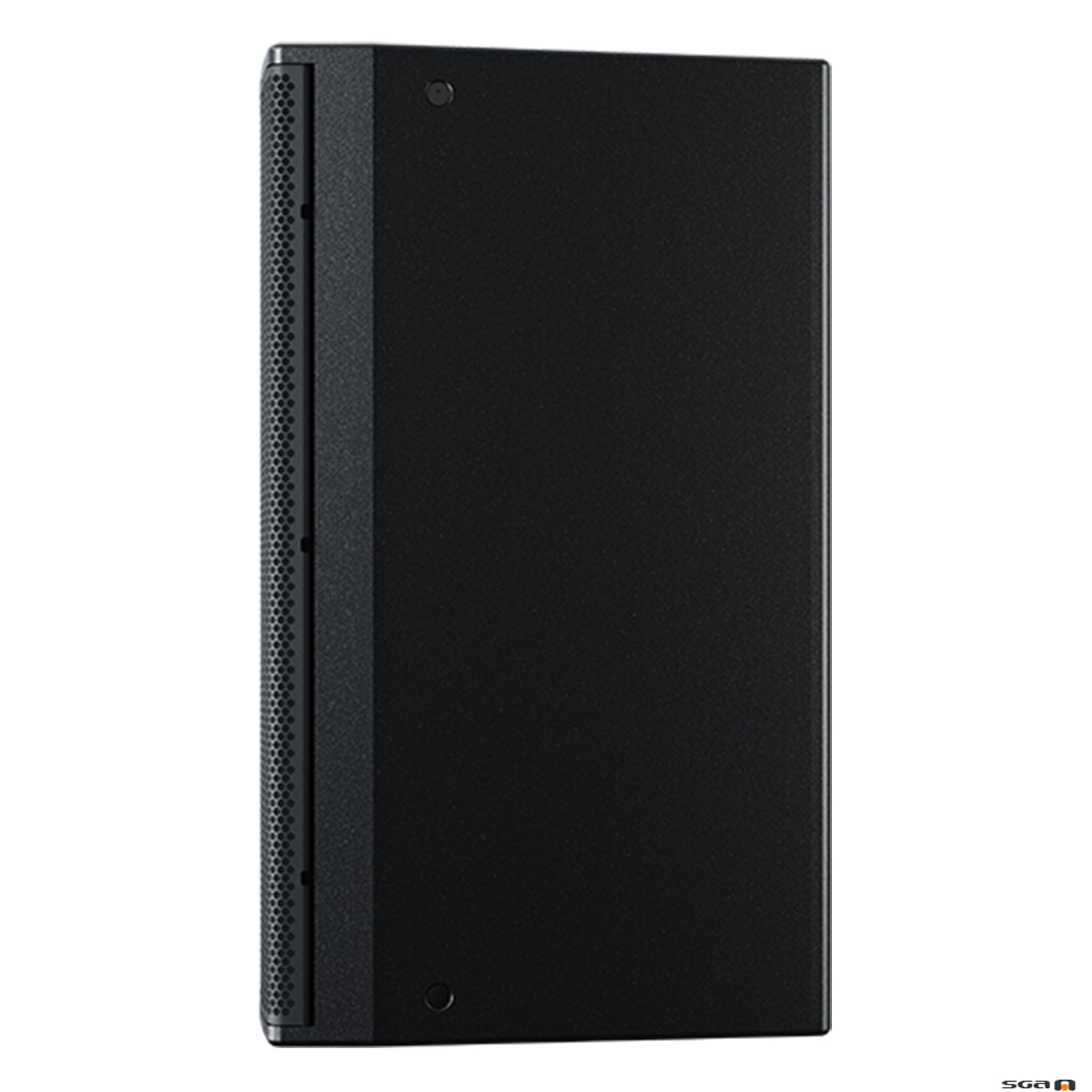

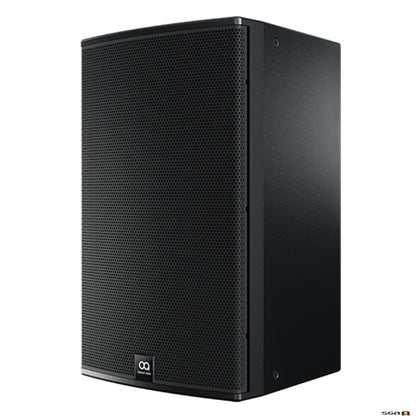

Cuboid 15 is a full range, two-way, passive, 15” loudspeaker designed to perform. For any applications requiring big output, it effortlessly delivers rich and detailed sound with extra punch and precision.
With its wooden cabinet, steel grille and optional mounting hardware the professionally presented Cuboid 15 can be fixed in either portrait or landscape mode for a flexible, simple installation.
Cuboid 15 features a 15” (380mm) low frequency (LF) driver for extra bass and midband with a 1″ (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user-rotatable horn.
For enhanced bass performance, Cuboid 15 can be teamed with Sub 15.
When coupled with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further supplemented by ZonePad wall controllers.
- Wooden cabinet
- Portrait or landscape mounting options
- Rotatable high-frequency horn
- 58Hz – 18kHz frequency response ±3dB
- Maximum SPL 126dB (continuous), 132dB (peak)
- 80° horizontal x 50° vertical coverage
| TYPE | Two-way, full range, passive loudspeaker |
| FREQUENCY RESPONSE (with preset) |
58Hz – 18kHz ± 3dB -10dB @ 40Hz |
| DRIVERS |
LF: 15” (380mm), ferrite motor system HF: 1” (25mm) exit/1.75” (44mm) voice coil, polymide dome compression driver |
| RATED POWER | 500W (AES) 2000W (Peak) |
| NOMINAL IMPEDANCE | 8 Ohms |
| SENSITIVITY (1W/1m) | 99dB |
| MAXIMUM SPL | 126dB (cont), 132dB (peak) |
| CROSSOVER | 2.3kHz passive |
| DISPERSION (-6dB) | 80˚ H x 50˚ V (user-rotatable) |
| ENCLOSURE | Trapezoid wooden cabinet |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| CONNECTORS | 2x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| FITTINGS | 19 x M8, inset bolts |
| DIMENSIONS |
(W) 426.5mm x (H) 691.5mm x (D) 416mm ( W) 16.79” x (H) 27.22” x (D) 16.38” |
| WEIGHT | 28kg (61.73lbs) |
Related Products
-
Optimal WB3-B

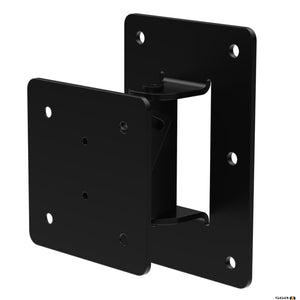

Optimal Audio wall bracket for Cuboid 15
Regular price $424.00Regular price -
Optimal UB4-B

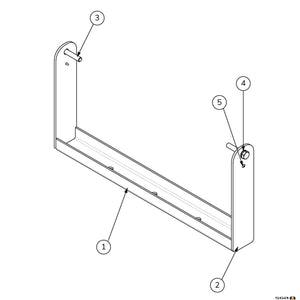

Optimal U bracket for Cuboid 15
