FBT Ventis 206
FBT 2x6.5"/1" speaker. 2-way, bass reflex design, 8 Ohms,
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**

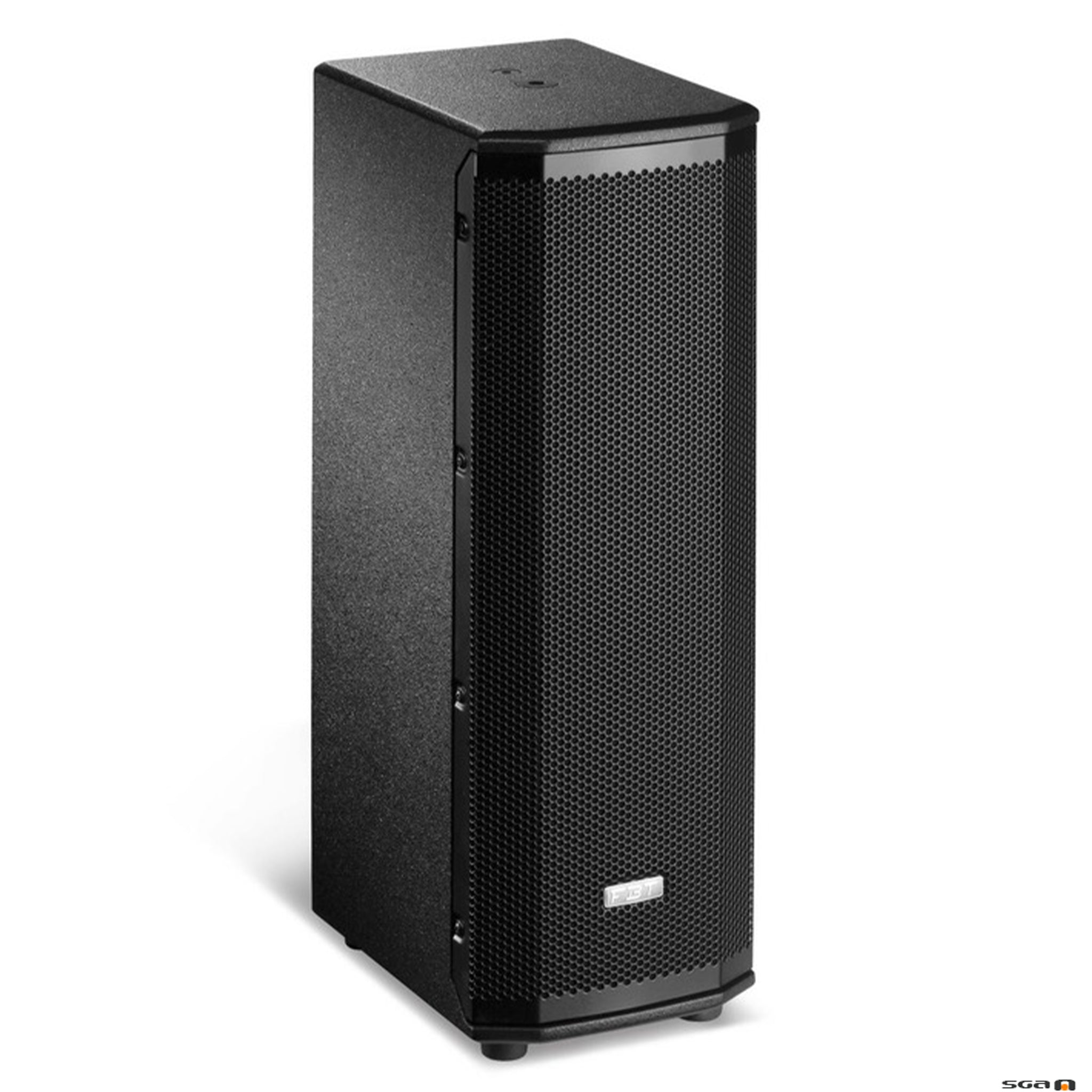

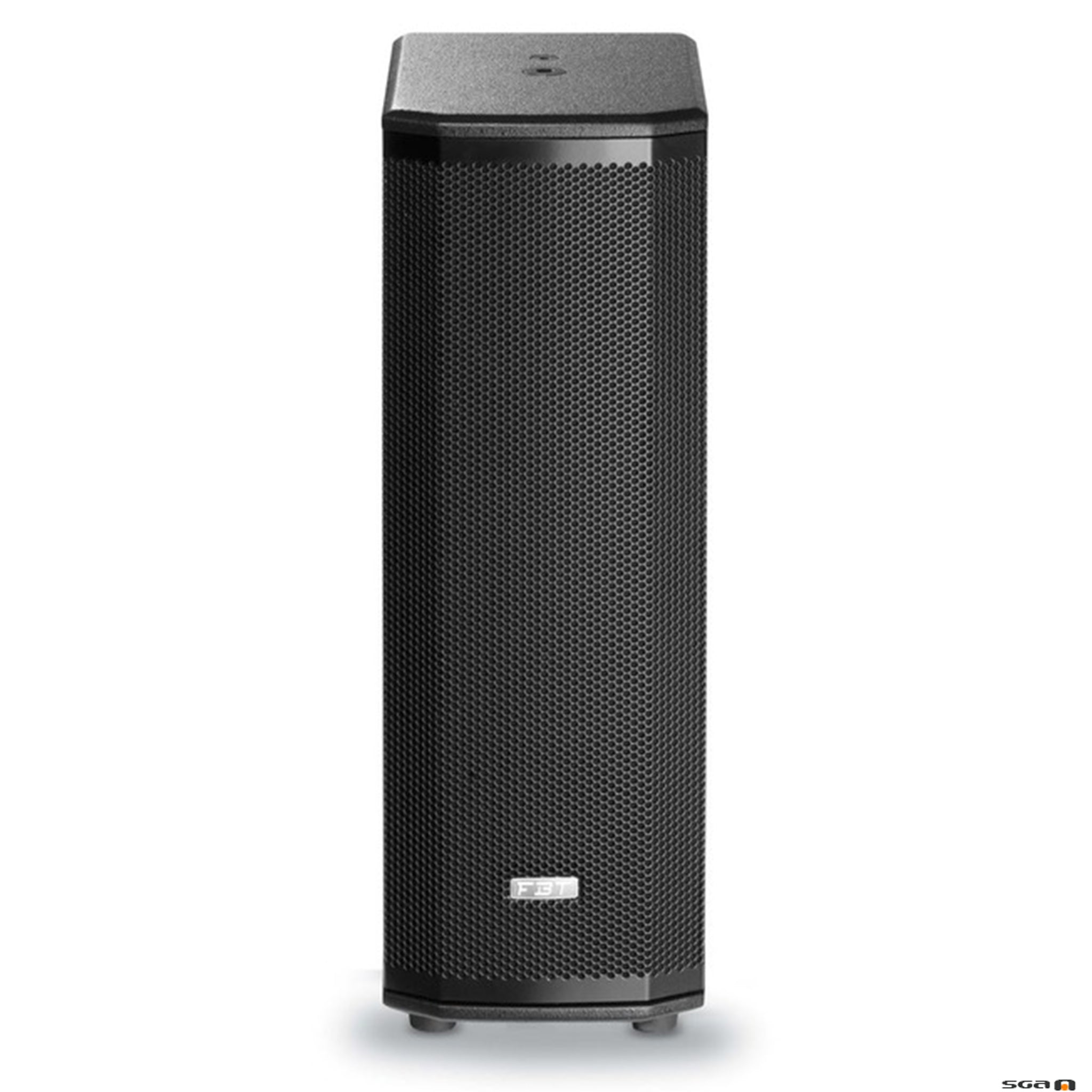

The FBT Ventis 206 is a high-performance passive 2-way loudspeaker, ideal for applications such as front-fill, under-balcony fills, or main systems for small venues. Equipped with dual 6.5" LF woofers with 1.5" voice coils and a 1" exit throat B&C HF compression driver with a 1.4" voice coil, it delivers clear, accurate sound and exceptional speech intelligibility. The fully rotatable constant directivity horn provides 70° horizontal and 50° vertical dispersion, ensuring precise coverage.
With a frequency range of 75Hz to 20kHz and a maximum SPL of 127dB, the Ventis 206 offers powerful output for various environments. The fixed 2kHz crossover ensures smooth low-to-high frequency integration. Compatible with 8-ohm amplifiers, it is optimized for 400W RMS power, handling up to 800W short-term (IEC 268-5).
Constructed from 0.47" birch plywood with a scratch-resistant finish, the Ventis 206 is built for durability in both touring and permanent installations. It features an integrated rear handle for easy transport and two Neutrik Speakon NL4 connectors for secure connectivity. The optional mounting bracket allows for flexible installation on walls or ceilings.
The FBT Ventis 206 offers exceptional performance, durability, and versatility, making it an ideal choice for portable or fixed audio systems
- 2-way passive loudspeaker with dual 6.5" LF woofers and 1" exit throat B&C HF compression driver
- Frequency response from 75Hz to 20kHz, with a maximum SPL of 127dB
- Rotatable horn with 70° horizontal and 50° vertical dispersion for precise coverage
- Recommended amplifier power: 400W RMS, with short-term power handling of up to 800W
- Built-in passive crossover at 2kHz for smooth integration of low and high frequencies
- Constructed from durable 0.47" birch plywood with a scratch-resistant finish
- Rear panel features two Neutrik Speakon NL4 connectors for reliable signal transmission
- Configuration: 2-way
- Recommended Amplifier (RMS): 400W
- Power Handling: 200W (Long Term), 800W (Short Term, IEC 268-5)
- Nominal Impedance: 8Ω
Acoustical
- Frequency Response (–6dB): 75Hz – 20kHz
- Low Frequency Woofer: 2 × 6.5" with 1.5" voice coil
- High Frequency Driver: 1" with 1.4" voice coil
- Sensitivity (@1W/1m): 97dB
- Max SPL (Cont./Peak): 123dB / 127dB
- Dispersion: 70° x 50°, rotatable
- Crossover Frequency: 2kHz
- Recommended HP Filter: 60Hz, 24dB/oct
Inputs/Outputs
- Input Connectors: 2 × Neutrik Speakon NL4
Mechanical
- Dimensions (H × W × D): 7.48 × 21.45 × 10.23 in
- Net Weight: 26.01 lbs
- Transport Dimensions (H × W × D): 13.66 × 25.78 × 11.29 in
- Transport Weight: 30.42 lbs
