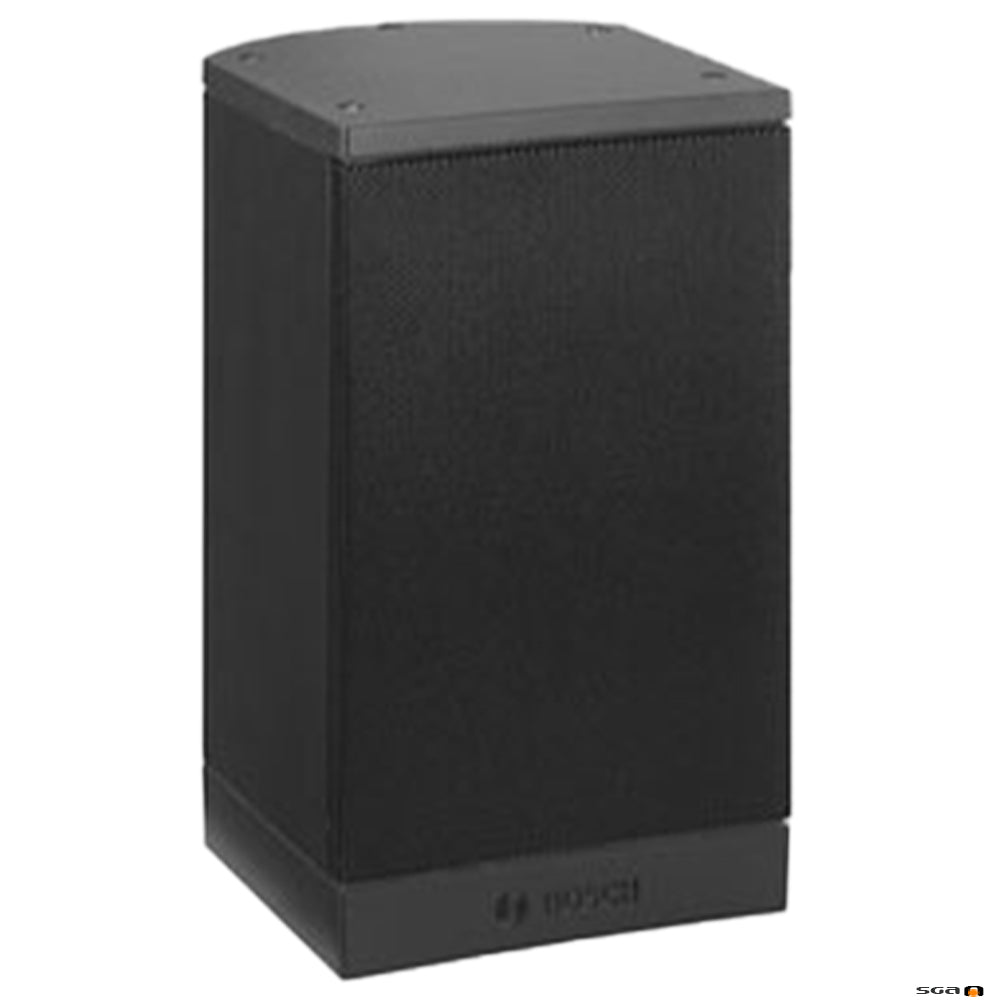

The Bosch LB1-UM20E-D & LB1-UM20E-L EN54-24 premium cabinet loudspeaker are suitable for clear reproduction of speech, foreground and background music.
Integral safety features ensure that the LB1UM20E is compliant with EN54-24, for use in emergency voice evacuation systems.
The input is selectable between 70V, 100 volt line and 8 ohm.
A sturdy wall mounting bracket is supplied.
- High-fidelity music and speech reproduction
- Supplied with adjustable wall‐mounting bracket
- Self‐restoring overload protection
- Provision for internal mounting of the optional line / loudspeaker supervision board
- EN 54‐24 certified
- Water resistant. IP65 rated
|
Description |
LB1‑UM20E cabinet loudspeaker |
|
Maximum power |
30 W |
|
Rated power (PHC) |
20 W |
|
Power tapping |
20/10/5/2.5 W |
|
Sound pressure level at rated power / 1 W (70 Hz, 1 m) |
101 / 88 dB |
|
Effective frequency range (-10 dB) |
90 Hz to 20 kHz |
|
Rated input voltage |
12.65/70/100 V |
|
Rated impedance |
8/250/500 Ohm |
|
Connector |
3 pole screw block |
|
Dimensions (H x W x D) |
274 x 160 x 180 mm(10.78 x 6.29 x 7.08 in) |
|
Weight |
3.88kg (8.55 lb) |
|
Color |
White (RAL 9010) or Charcoal (RAL7021) |
|
Material |
|
|
- Loudspeaker cabinet & front grille |
Aluminium |
|
- Top & bottom |
ABS |
|
Operating temperature |
-25 ºC to +55 ºC (-13 ºF to +131 ºF) |
|
Storage temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
<95% |
