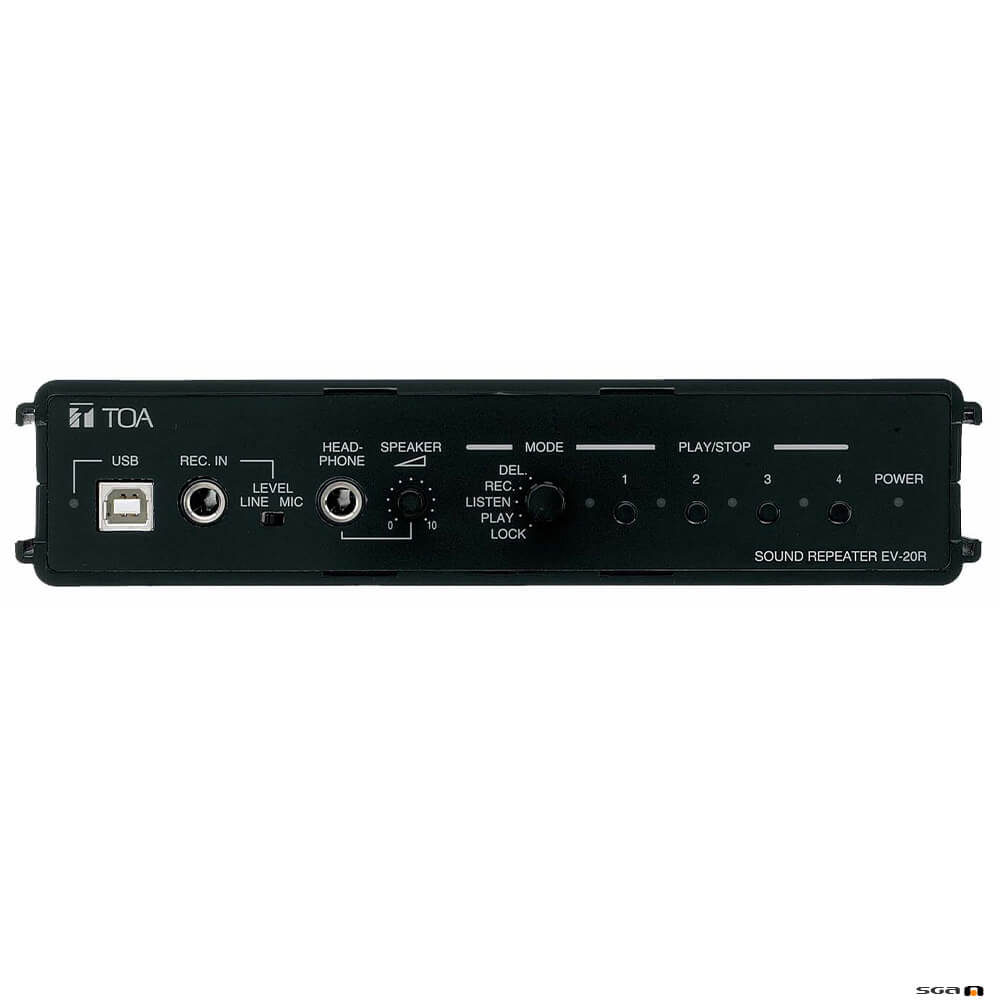

TOA EV20RP
TOA EV20RP Digital announcer, built-in flash memory, up to 4 channel, USB and front panel control. Inc power pack
Regular price
$1,403.11
Regular price
$1,559.00
Sale price
$1,403.11
Unit price
per
inc. GST
Shipping calculated at checkout.
Product Enquiry Form
Delivery Charges
Freight Charges within Australia
Soundgear Australia will do their very best, to ensure your order arrives as quickly as possible. We use an integrated network of post and road companies like StarTrack, TNT, Go Logistics, and Australia Post to deliver Australia wide. We will do our best to ship as quick as possible.
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
GENERAL AUDIO (excludes Lecterns-see Lectern pricing below)
| Price Range | Cost | Method |
| Up to 25 | $15 | Express Post |
| $26 to $300 | $25 | Post / Road |
| $301 to $500 | $28 | Post / Road |
| $501 to $1000 | $30 | Post / Road |
| $1001 to $2500 | $45 |
Post / Road |
Oversize Items:
- Oversize items or multiple items such as horns, speakers, sports packs, may also incur additional charges to those calculated at checkout. We will contact you with any additional charges.
Freight charges to W.A /N.T/Far North QLD, Regional and Rural areas:
- Additional charges to those listed may apply.
- Please contact us for a quote.
- If you place an order and we can’t get it to you for the freight charged we will contact you and let you know of the additional charges.
Sending to Residential Addresses:
- For all residential deliveries an additional $27.50 Inc-GST may also be charged for certain brands (Mipro, Bosch, Earthworks, Alfatron, FBT, Antari).
- If we cannot express Post it and it needs to go with a courier service, the additional residential fee will apply.
- If you have placed an order online we will contact you if this additional charge applies. Please feel free to call us on 02 9585 8687 to check the freight charge.
Deliveries to residential address need an “ATL” (authority to leave goods)
- Please leave us a note at check out advising us of an “ATL” ie/porch, front door etc should you not be home to sign.
| Price Range | Cost | Method Delivery times |
| Zone A | $110 | Zone A Areas (Sydney, Melbourne, Canberra, Adelaide, Newcastle, Wollongong) |
| Zone B | $242 | Country /Regional-All states, Perth, QLD -(excluding TAS /N.T) |
| Zone C | Quote required for TAS /N.T | |
| Note: | Zone A only calculated at checkout. All other zones will need to be charged separately. We will contact you to arrange this. |
**WE DO NOT SHIP OVERSEAS**
Regular price
$1,403.11
Regular price
$1,559.00
Sale price
$1,403.11
The TOA EV20RP is a convenient addition to sites where the same message or music is repeatedly broadcast. Up to 4 types of music and messages (6 minutes total time) can be recorded and played back. The USB port facilitates recording by transferring the supplied sound sources from a PC to the unit. The unit's small built-in amplifier enables small-scale broadcasts through a simple speaker connection.
- A USB interface permits audio data to be transferred from a PC.
- Up to 4 messages can be recorded and played back.
- The maximum total recording time for the 4 messages is 6 minutes.
- Recorded data is not compressed, ensuring high quality sound output.
- A built-in power amplifier enables broadcasts with the simple connection of a speaker.
- Analog recording terminals enable direct recording from a microphone or CD player.
- Playback and stop functions can be remotely controlled by way of connected external equipment.
- Repeated broadcasts can be made
| Power Source | Supplied from an external 24 V DC/400 mA power supply or from an optional AD-246 AC adapter |
|---|---|
| Power Consumption | 10 W (rated output) |
| Wave Format | 44.1 kHz sampling frequency, 16-bit PCM (monaural) |
| Frequency Response | 20 Hz - 20 kHz ±3 dB (1 kHz) 50 Hz - 14 kHz ±3 dB (IT-450 mounted, 1 kHz) |
| Distortion | 1 % or less (1 kHz, rated output) |
| Recording System | USB data transfer or analog recording |
| Control Input | Play 1-4, stop: No-voltage make contact input, pulse make length: 200 ms, open voltage: 30 V DC, short-circuit current: 10 mA removable terminal block (22 pins) |
| Control Output | Busy: Contact capacity: 30 V DC/0.5 A, removable terminal block (22 pins) |
| Input | Input/Recording input: Mic: -60 dB(*1), 2.2 kΩ/ Line: -20 dB(*1), 10 kΩ, (Mic/Line changeable), unbalanced, phone jack Line input: 0 dB(*1), 10 kΩ, unbalanced, removable terminal block (22 pins) |
| Output | Line output: 0 dB(*1), 600 Ω, unbalanced, removable terminal block (22 pins) Headphone output: 0 dB(*1), 100 Ω, unbalanced, phone jack Speaker output: 3 W, 8 Ω, removable terminal block (22 pins) |
| LED Indicator | POWER, USB, START/STOP 1-4 |
| Maximum No. of Messages | 4 Pre-recorded audio data: Message 1, Westminster chime(*2) Message 2, Ascending 4-tone chime(*2) Message 3, Descending 4-tone chime(*2) Message 4, None Note: The above audio sources can be overwritten by using the supplied software. |
| Maximum Recording Time | 6 min |
| Message Delay Time | 0, 2 s or 4 s (selectable) |
| Playback Interval Time | , 0, 5 s, 10 s, 30 s, 1 min, 5 min, 10 min, 30 min or 1 h (selectable) |
| Operating Temperature | 0 ℃ to +40 ℃ |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Case: ABS resin, black |
| Dimensions | 210 (W) × 44.2 (H) × 181 (D) mm (excluding projection) |
| Weight | 730 g |
| Accessory | CD-ROM (USB data transfer software and sample chimes recorded)…1, Unbalanced-phone plug…1, USB cable (1 m)…1, Removable terminal plug (22 pins)…1, Rubber foot…4 |
| Option | Rack mounting bracket: MB-WT3 (for rack mounting one EV-20R unit) MB-WT4 (for rack mounting two EV-20R units) AC adapter: AD-246 |
- (*2) These audio sources are also contained in the supplied CD-ROM as sample audio data.
USB Data Transfer Software Operation Environment
| Personal Computer | Windows PC (equipped with the USB terminal) |
|---|---|
| Main Specifications | CPU: Pentium compatible CPU of 300 MHz or faster Memory: 128 MB or more Free disk space: 10 MB or more (space for message storage excluded) Optical Drive: CD-ROM drive |
| OS | Windows XP (32-bit edition)/Vista (32-bit edition)/7 (32-bit edition) |
