Description

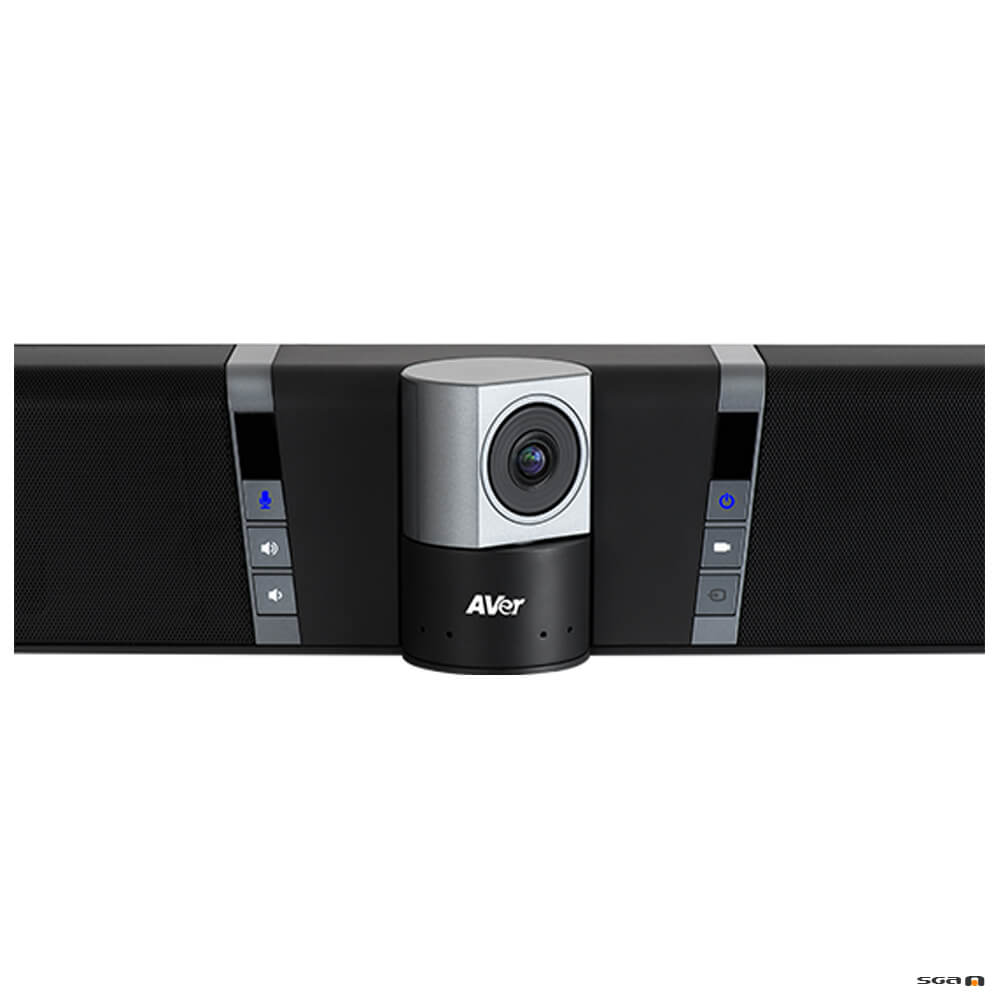

The Aver VB342+ is an affordable, enterprise grade USB soundbar optimized to deliver exceptional audio visual experience to huddle rooms and small conference rooms. The VB342+ delivers premium audio quality and expansive sound in an easy to use all-in-one soundbar. The high quality sensors and multi-lens glass produce the sharpest video and incredibly accurate color up to 4K. Zoom Certified.
Aver’s SmartSpeaker technology tracks and pinpoints your location in the room, cutting through background noise to pick up your voice clearly. SmartSpeaker presets allow you to flawlessly deliver your presentation while continuing the video call with ease. The SmartSpeaker feature has a 6 meter diameter pickup range.
The VB342+ captures the entire room with 120° FOV featuring a 180° motorized pan and 105° tilt, for a wider perspective than ever before. Easily view the whiteboard on the sidewall with the push of a button. The 120° Field Of View is perfect for huddle rooms where attendees are positioned closer to the lens.
The SmartFrame feature automatically frames meeting participants based on facial detection and optimizes color and light for human faces with a single click. The VB342+ automatically adjusts the camera zoom, pan, and focus to fit everyone on-screen in seconds without overreacting to unimportant movement.
No need to waste time panning and zooming manually during meetings – the Aver VB342+ allows you to customize your meetings by storing up to 10 PTZ location presets. Each preset can be easily accessed with one touch of the remote, saving you time and providing flexibility to move to predetermined locations in the conference room swiftly.
The True Wide Dynamic Range (WDR) up-to 120dB controls light exposure in high contrast areas to provide crystal clear video. No need to worry about challenging and difficult lighting conditions, now you can hold your meeting anywhere in any lighting with the VB342+.
The Aver VB342+ also provides an analytics API so enterprises and third-party software providers can obtain people-counting data for better understanding of meeting space usage.
For the AVer Boundary Extension Microphone to suit see the VB342 MIC
For DIN6 to RS232 Adaptor Cable to suit the VB342+ see the DIN6-RS232
Compatible Applications
- Zoom, Microsoft® Teams, Skype for Business, Skype, Google Hangouts, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
- *For 4K UHD support, please check system/hardware requirements with your software application provider.
Package Contents
- VB342+ Soundbar
- Power cable 10 ft (3 m)
- USB 3.1 type-C to type-A Cable 6 ft (1.8 m)
- USB 3.1 type-A to type-C adapter
- Quick-start guide
- Wall-mount bracket and screws
- Warranty card
- Remote control
- Battery
Specification
Camera
- Sony Exmore sensor: Ultra crystal-clear image support up to 4K
- Frame rate: 4K 30fps; 1080p, 720p, 960 x 540, 848 x 480, 800 x 448, 640 x 480, 640 x 360, 424 x 240, 320 x 240, 320 x 180 at 60, 30, 15fps
- SmartFrame & SmartSpeaker: Automatic FOV adjustment to fit all participants and focus on the speaker
- 120° wide field of view
- True WDR up to 120 db: Superb back light compensation technology for optimizing light balance in high-contrast conditions
- Digital zoom rate up to 4X leveraging 4K sensor
- 3D denoise technology maintains clear and natural imaging in low light conditions
- Mirror, AE, white balance: Auto, manual override via PTZApp
- Minimum focus distance: 80 cm
- Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
Motorized Pan and Tilt Movement
- Pan: Total horizontal viewing area 180°
- Tilt: Total vertical viewing area 105°
- 10 camera presets (through remote control)
- Fast and quiet pan & tilt movement
Audio
- Microphones: 2 unidirectional microphones supporting 6 m pickup
- 5Wx2 stereo full range speakers with professional bass port tuned for communication
- Volume up to 96 dB SPL at 1/2 meter
- Echo cancellation
- Noise suppression
- 3.5 mm Line-in (aux) cable connects BYOD smartphones or PCs as speakerphones
HDMI
- DisplayLink: Built-in USB 3.1 (Gen 1) to HDMI adapter
- 1080p HDMI output to TV**
- ** Win7/8 OS: Must install DisplayLink driver via AVer PTZApp
Connectivity
- 12V/5A power adaptor
- Mini DIN6 for RS232 connection
- USB type C connector
- HDMI out connection (DisplayLink)
- Phone in (3.5 mm audio jack)
- Mic input
- Wireless connection with mobile devices**
- **Wireless function is not supported in the USA and some other countries. Please contact a local agent for details.
- **Wireless connection does not support wireless speakerphone devices.
Video Format
USB
- 3.1 Gen 1, backward compatible USB 2.0
- UVC (USB Video Class) 1.1
Control
- IR remote control
- VISCA/pelco P/pelco D via RS232
- UVC/UVA plug-and-play
- PTZApp
Security and Mount
- Camera wall-mount bracket included
System Requirements
- Windows 7/10
- MacOS X 10.7 or higher
- Google Chromebook version 29.0.1547.70
- Android 5 or higher
Hardware Specs*
- 2.4 GHz Intel® Core™2 Duo processor
- 2 GB RAM or more
- USB 3.1 Gen1 port (supports 4K); USB 2.0 port (supports up to 1080p)
Power Supply
- AC 100V~240V, 50/60 Hz
- Consumption: 12V, 5A
Free Applications for Meeting Collaboration
(Free app support on Windows® and Mac computers)
- EZManager: Camera Central Management Software
- Remotely group FW/SW upgrades, control the camera, and manage settings
- PTZApp
- Compatible with Skype plugin for answering and hanging up via remote control
- Upgrade firmware automatically or manually
- Control the camera
- Set parameters and adjust the camera image
- Diagnose operating status
- View live video
- EZLive
- Real-time streaming / annotating / image capturing / video recording
Environmental Data
- Operation temperature: 0°C~40°C
- Operation humidity: 20%~80%
- Storage temperature: -20°C~60°C
- Storage humidity: 20%~80%
Dimensions
- Package dimensions: 739 x 193 x 229 mm
- Package weight: 4.16 kg/9.3 lbs
- Camera: 650 x 100 x 109.5 mm/2.133 kg
- Remote control: 200 x 50 x 21 mm/0.09 kg
Package Contents
- VB342+ unit
- Power cable 10 ft (3 m)
- USB 3.1 type-C to type-A Cable 6 ft (1.8 m)
- USB 3.1 type-A to type-C adapter
- Quick-start guide
- Wall-mount bracket and screws
- Warranty card
- Remote control
- Battery
Optional Accessories
- Mini DIN6 to RS232 adapter
- TV mount and mounting screws
- 33 ft (10 m) expansion microphone
- 66 ft (20 m) expansion microphone
- 33 ft (10 m) USB 3.1 extension cable
- 66 ft (20 m) USB 3.1 extension cable
- 16 ft (5 m) USB 2.0 cable
Warranty**
- Camera: 3+2 years
- Accessories: 1 year
- ** Please register online to receive a free 2-year warranty extension. For detailed warranty information, please contact an AVer representative.
Compatible Applications
- Zoom, Microsoft® Teams, Skype for Business, Skype, Google Hangouts, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
- *For 4K UHD support, please check system/hardware requirements with your software application provider.
